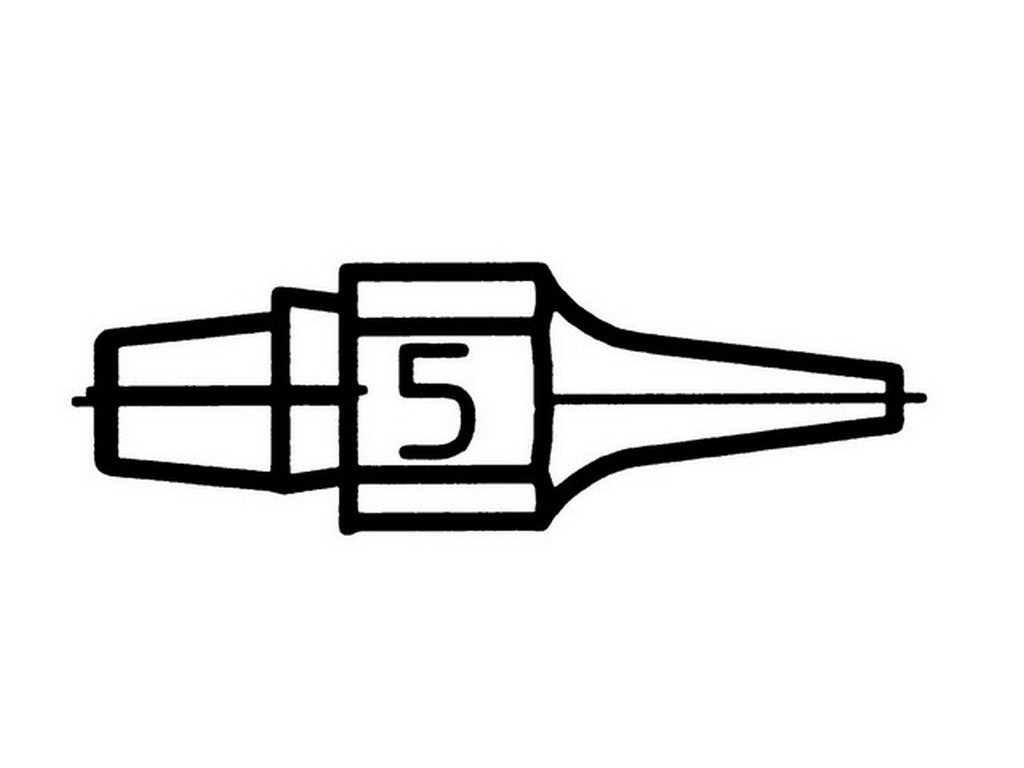

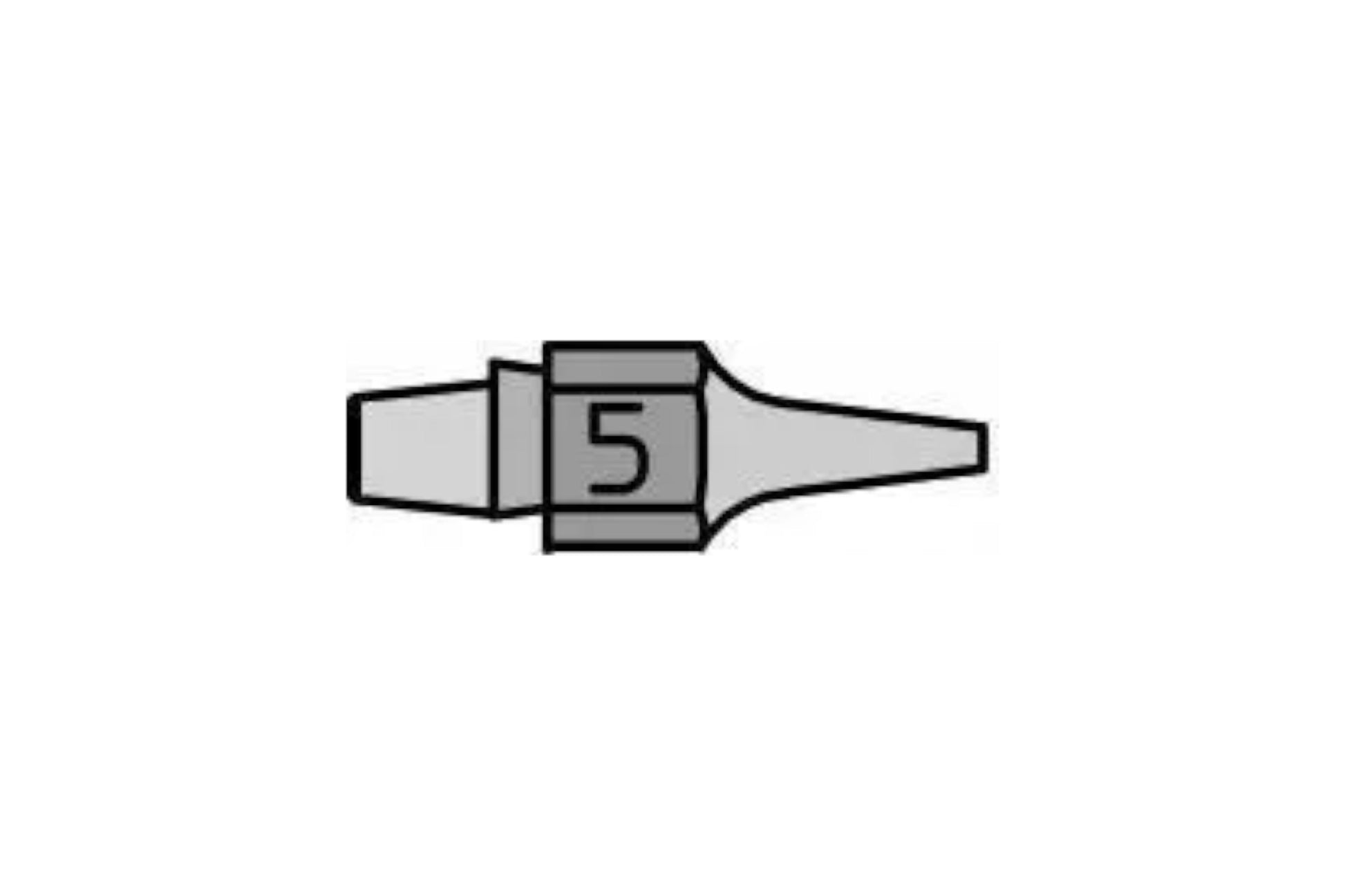

DX 115 — Weller desoldering nozzle
The DX 115 is a Weller desoldering nozzle with a threadless fastening system, specified as Item No. T0051314599. The product is designed for removing solder from solder joints by heating the nozzle to melt the solder, after which the active vacuum extracts the molten solder via an integrated hose into a collector.
Function and compatibility
- Threadless fixture system.
- Compatible with DSX 80 and DXV 80 (specified by the manufacturer).
- Designed to be heated and used with vacuum equipment for extracting molten solder.
Typical applications
Product information from the manufacturer indicates that the DX 115 is used to remove solder from solder joints. Applications include heating the nozzle to melt the solder and then activating a vacuum to suck the molten solder through the integrated tube and into a collector.
Documentation
Further technical documentation and details can be found in the manufacturer's datasheet.
Specifications
- Item designation: DX 115 (Item No. T0051314599)
- Product family: DX Suction Nozzle Soldering Tips
- Fixture: Threadless fixture system
- Compatibility: DSX 80 and DXV 80
- Dimensions: A = 1.9 mm; I = 0.7 mm; D = 29 mm
- Nozzle length: 29.0 mm
- Outer diameter: 1.90 mm
- Quantity per package: 1
- UPC: 037103209115
