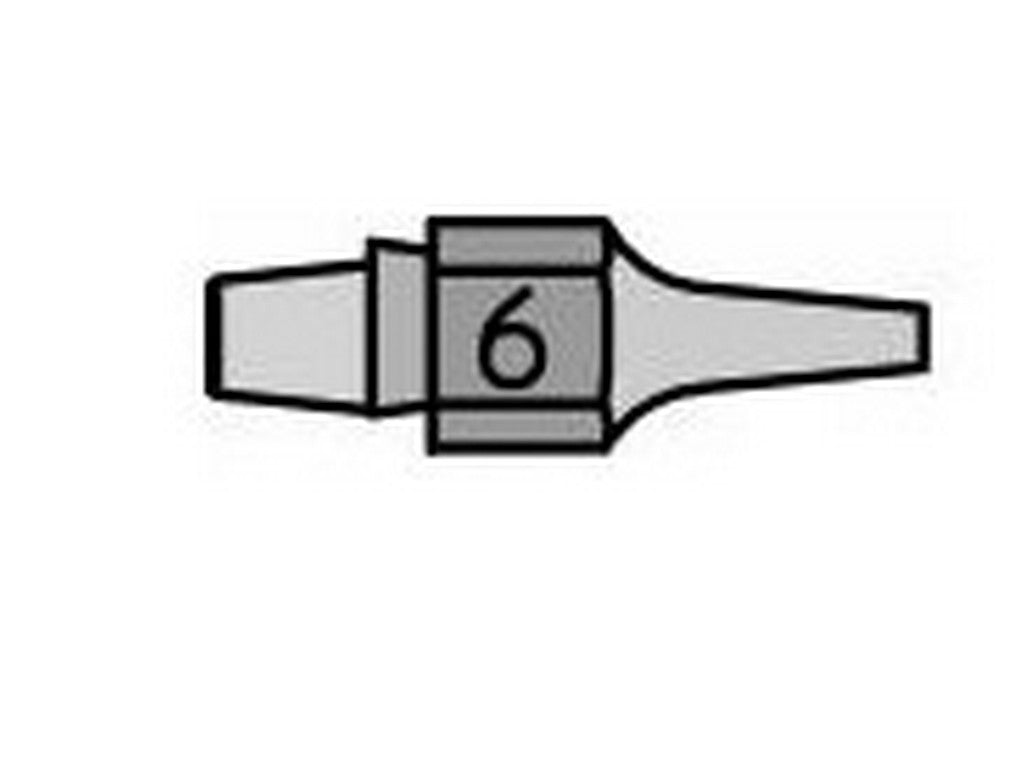

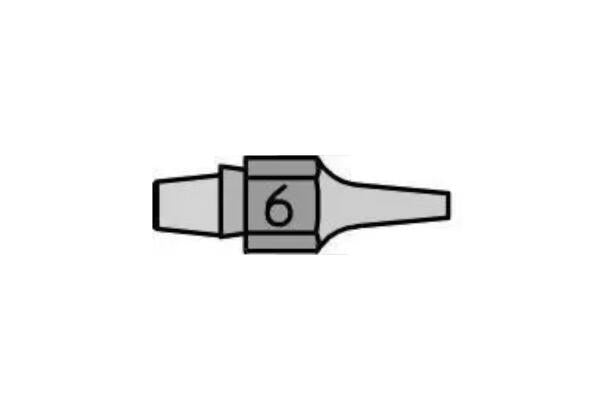

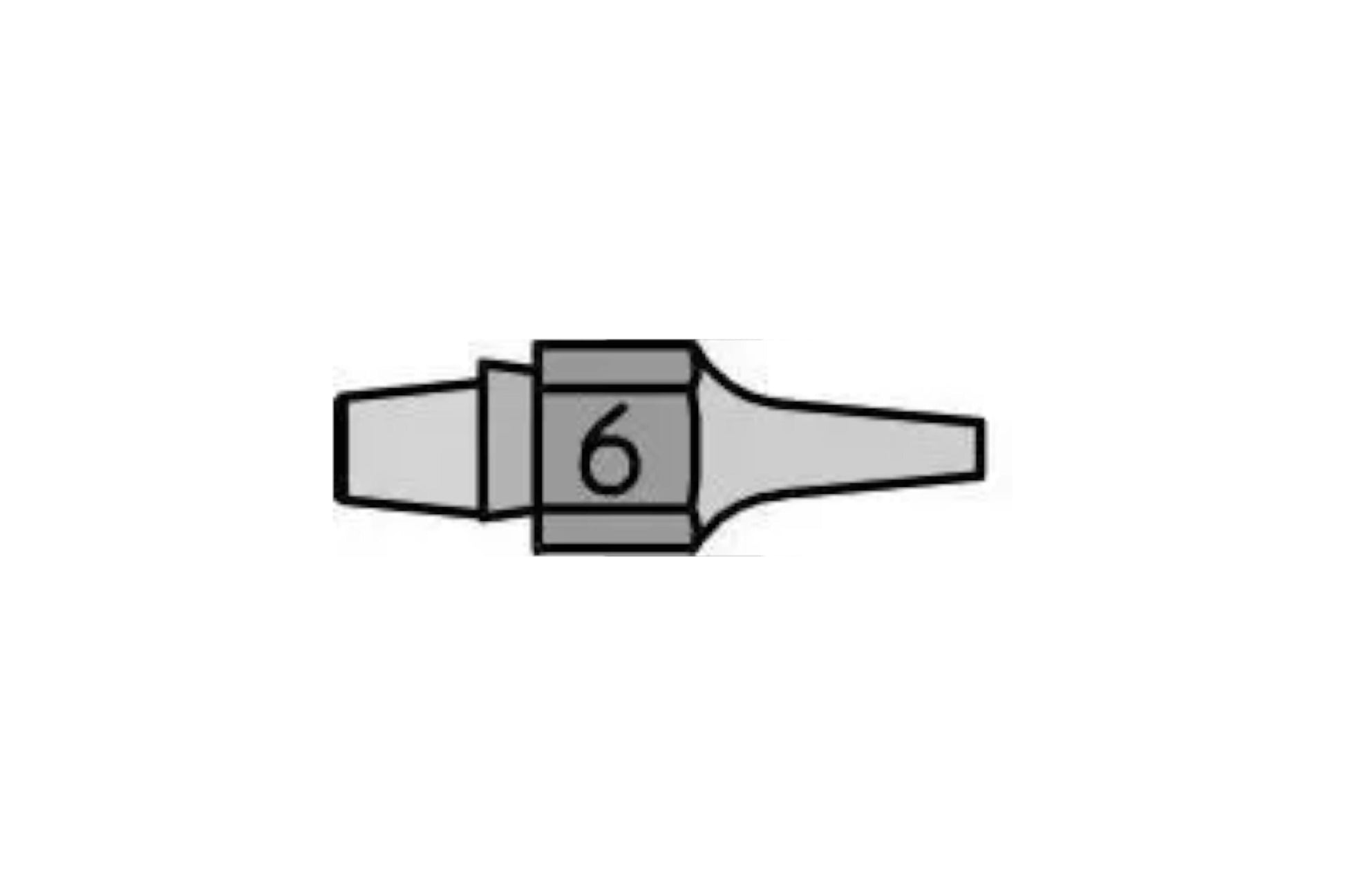

DX 116 Desoldering Nozzle from Weller
The DX 116 is a desoldering nozzle from Weller, designed for use with DSX 80 and DXV 80 desoldering stations. The product is designed to melt solder by heating the nozzle and then remove the molten solder by activating a vacuum, where the molten material is suctioned out via the integrated tube into a collector.
Function and Construction
- Threadless fixture system compatible with DSX 80 and DXV 80 (as stated by the manufacturer).
- The nozzle is heated to melt solder at the solder joint; vacuum is activated to extract molten solder through the integrated tube.
- Product family: DX Suction Nozzle Soldering Tips.
For technical details and manufacturer information, please refer to the manufacturer's datasheet.
See datasheet from the manufacturer
Typical Applications
The DX 116 is used for desoldering by melting the solder with the heated nozzle and then removing the molten solder by vacuum. The application is specifically for use with DSX 80 and DXV 80 units, as indicated by Weller.
Specifications
- Product Name: DX 116
- Manufacturer: Weller
- Manufacturer part number: T0051314699
- Threadless fixture system: Yes – compatible with DSX 80 and DXV 80
- A (outer diameter): 2.7 mm
- I (inner dimension): 1.2 mm
- D / Nozzle Length: 29 mm (Nozzle Length 29.0 mm)
- Outer Diameter: 2.70 mm
- Quantity Per Package: 1
- Product family: DX Suction Nozzle Soldering Tips
- UPC: 037103209122
