Description

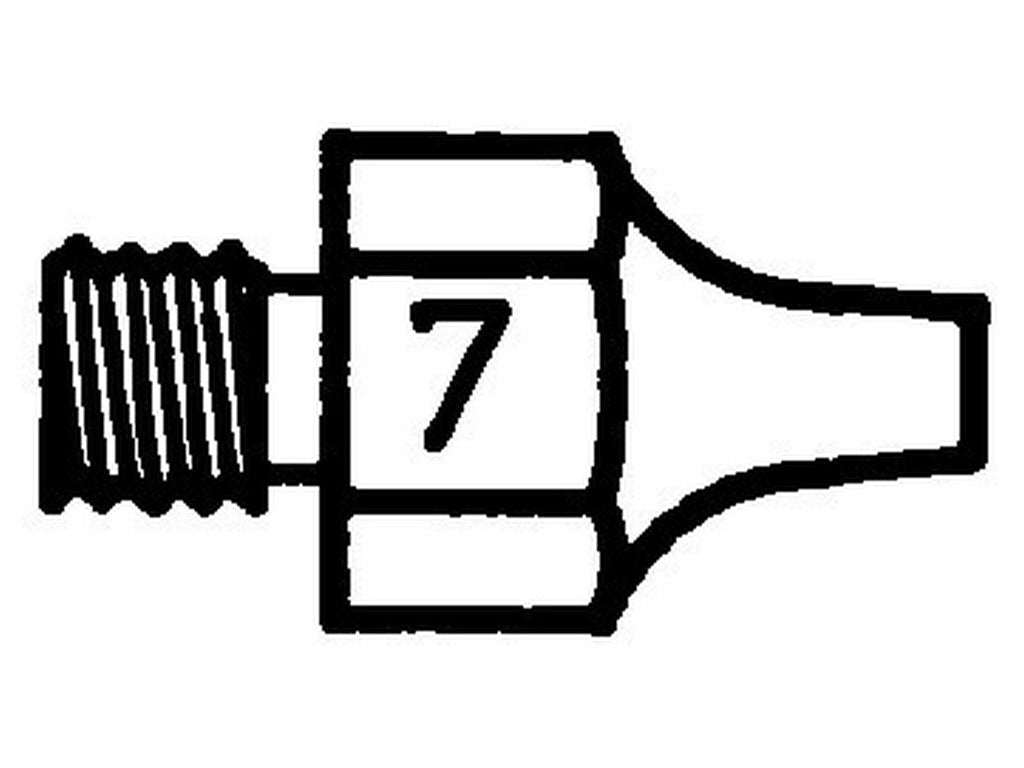

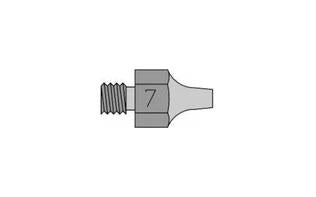

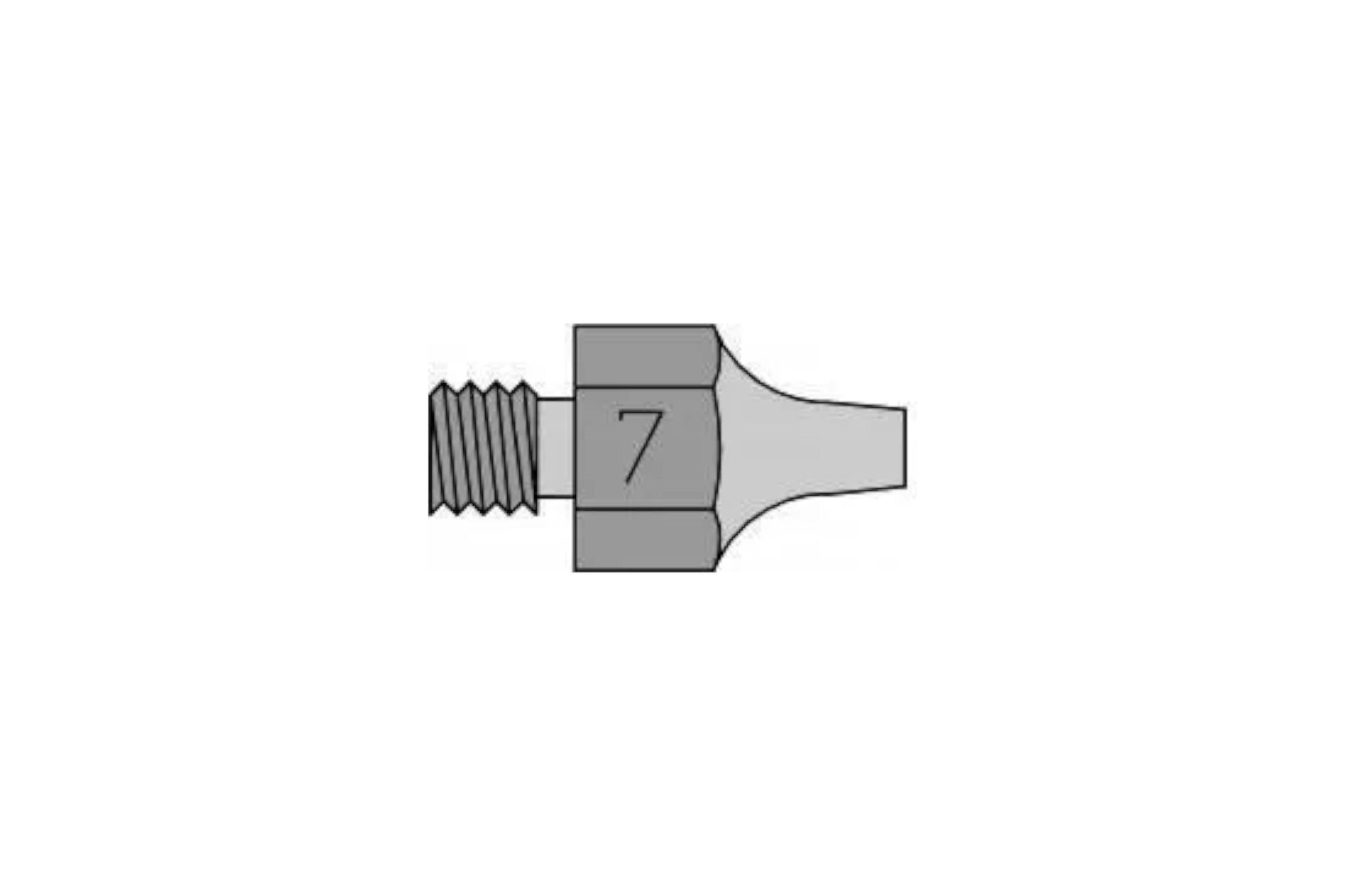

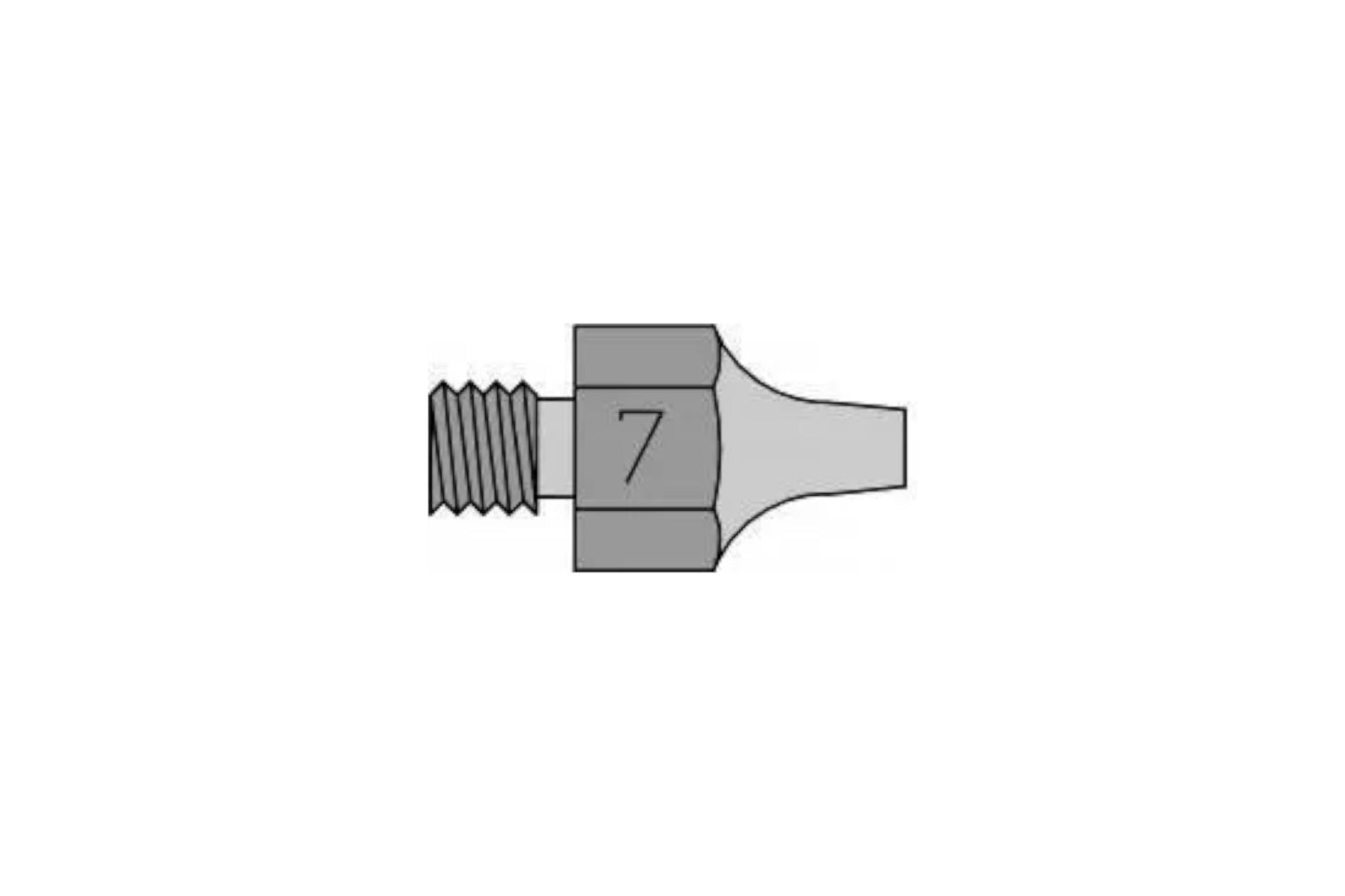

This desoldering nozzle from WELLER, item number T0051355099, is a replaceable nozzle part for DS suction units. The product is identified in the manufacturer's documentation as DS 117, Item No: T0051355099. The nozzle is designed to be heated to melt solder and enable removal via the built-in vacuum and suction line.Function and compatibility
- Designed as a threaded desoldering nozzle for use with DS 22, DS 80, and DSV 80 (compatibility stated in manufacturer's text).
- The nozzle's function is to heat solder and, after activating the vacuum, transport the molten solder through the integrated suction line to a collector (described in manufacturer's data).
Typical applications
- Used for removing solder from a solder joint using heat and vacuum, in conjunction with DS 22, DS 80, or DSV 80 units (directly stated in manufacturer's documentation).
Documentation
Further product information and technical data can be found in the manufacturer's datasheet: See datasheet from the manufacturer.
Specifications
- Model: DS 117 (listed in manufacturer's documentation)
- Item No / Part No.: T0051355099
- Compatibility: DS 22, DS 80, DSV 80
- Nozzle length (A / D): 18.0 mm
- Outer diameter (A): 2.90 mm
- Inner diameter (I): 1.5 mm
- Quantity per package: 1
- Tip form: Desoldering Nozzle
- Product family: DS Suction Nozzles
- UPC: 4003019029150
