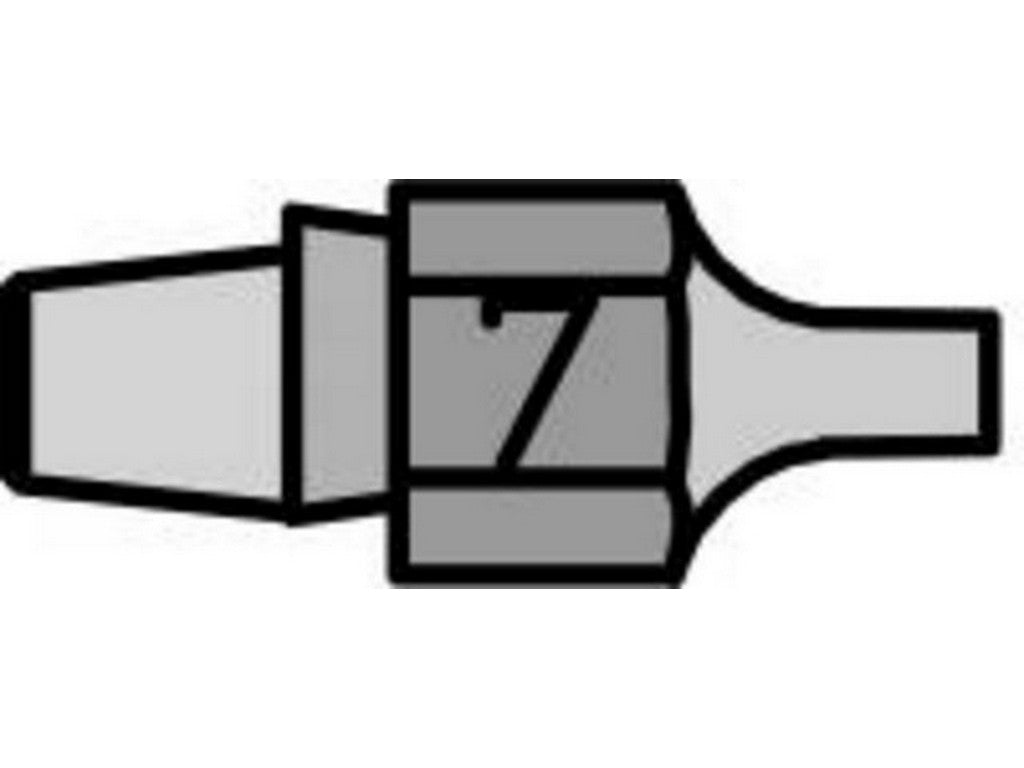

Desoldering Nozzle: Weller DX 117
This text describes the DX 117 desoldering nozzle from Weller, designed for removing solder using a heated nozzle and vacuum extraction. The product uses a threadless fixing system and is specified for use with DSX 80 and DXV 80 desoldering tools.Documentation
Typical Applications
The DX 117 is used for removing solder from solder joints. The device is designed to heat and melt solder, after which, once vacuum is activated, it is sucked out through the integrated tube and collected in a container.
Functional Features
- Threadless fixture system as specified by the manufacturer.
- Heats to melt solder; vacuum is activated for extraction via integrated tube.
- Compatible with DSX 80 and DXV 80 desoldering tools.
Specifications
- Product Name: DX 117
- Brand: WELLER
- Item No: T0051314799
- Product Family: DX Suction Nozzle Soldering Tips
- Fixing System: Threadless fixture system
- Compatibility: DSX 80 and DXV 80
- Outer Diameter (A): 2.90 mm
- Inner Diameter (I): 1.5 mm
- Nozzle Length (D / Nozzle Length): 25.0 mm
- Quantity per pack: 1
- UPC: 037103225290
Source: Weller product datasheet for DX 117 (see link under Documentation).
Content generated using AI – we reserve the right to make corrections.
Contact HIN for further information about the product.
