Description

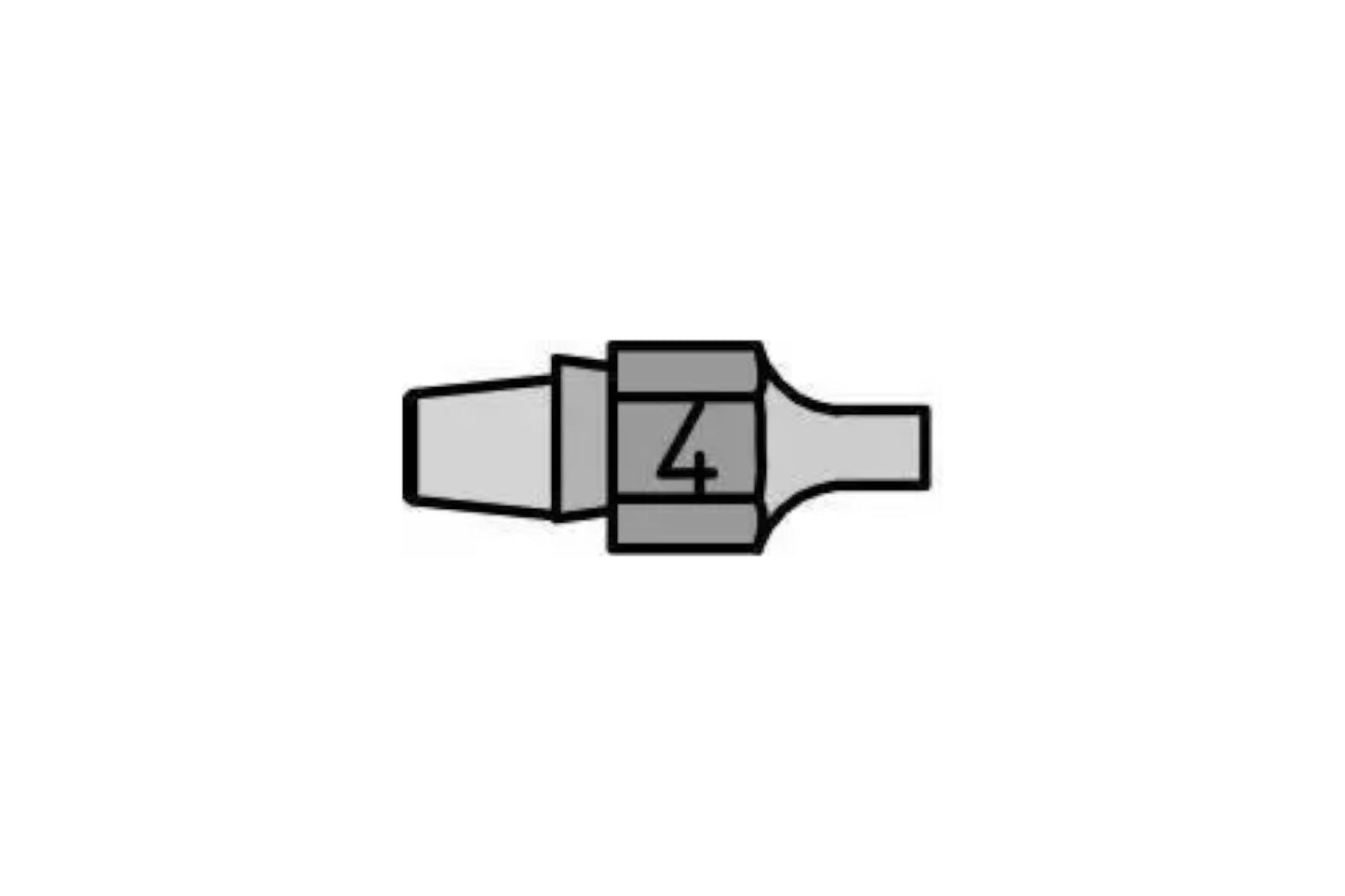

This description is about the Weller DX 114 desoldering nozzle from WELLER. The product is a desoldering nozzle designed to remove solder from solder joints and uses a threadless fixture system. The Weller DX 114 desoldering nozzle is intended for use with specific Weller desoldering irons and is constructed to melt and remove solder when vacuum is activated.Function and Construction
- The nozzle heats up to melt solder at the solder joint.
- After activating the vacuum, the molten solder is sucked through an integrated tube into a collector.
- The threadless fixture system makes the nozzle compatible with specific Weller devices.
The text and specifications in this description are based on the manufacturer's documentation. For additional official information: See datasheet from the manufacturer
Typical Applications
The Weller DX 114 desoldering nozzle is used to remove solder from solder joints using a heated nozzle combined with vacuum. The product is compatible with DSX 80 and DXV 80 desoldering irons, allowing for the removal of molten solder through the integrated suction tube and into a collector.
Specifications
- Part number: T0051314499
- Product name: DX 114 Desoldering Nozzle
- Threadless fixture system
- Compatibility: DSX 80 and DXV 80 desoldering irons (stated in manufacturer's text)
- Outer Diameter: 3.30 mm
- Inner Diameter: 1.8 mm
- Nozzle Length / D: 25.0 mm
- Quantity per package: 1
- UPC: 037103209108
- Product Family: DX Suction Nozzle Soldering Tips
The content is generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
