Product Overview

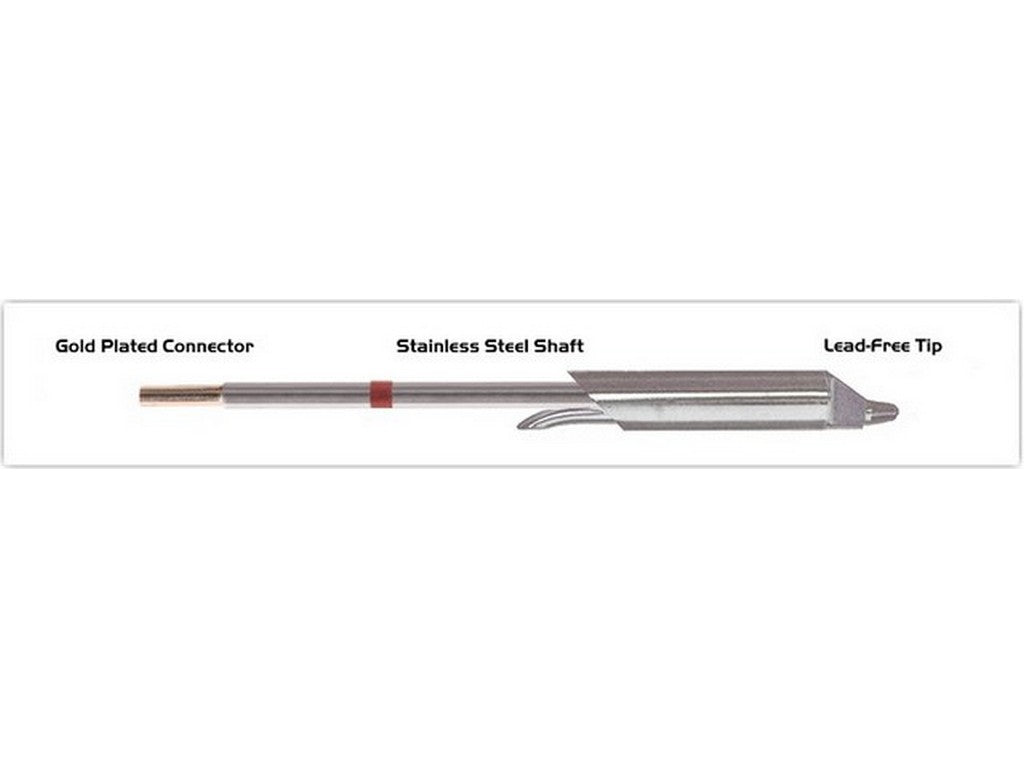

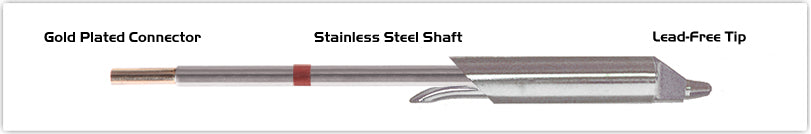

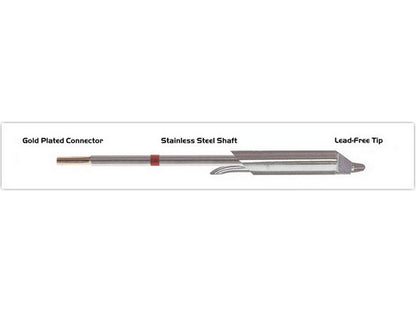

This M80DT007 desoldering tip from Thermaltronics is a replaceable 800 Series cartridge designed for desoldering applications. The M80DT007 is specified with an inner diameter of 2.40 mm (0.095") and a tip length of 13.00 mm (0.51"). The cartridge has an operating temperature range of 420°C to 475°C and is listed as RoHS compliant and lead-free. View datasheet from the manufacturerTechnical Details
- Product Name: M80DT007
- Tip type: Desoldering Tip (800 Series Cartridge)
- Inner diameter: 2.40 mm (0.095")
- Tip length: 13.00 mm (0.51")
- Temperature range (stated): 420°C – 475°C
- Complies with: RoHS / Lead-Free (stated as lead-free)
- Stated as equivalent to: STDC-807
- Compatible with: DS-KIT-1, TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200
Typical Applications
This tip is used for desoldering and is specified for use with the Thermaltronics units and handpieces listed in the manufacturer's information. The M80DT007 is therefore used for desoldering operations in conjunction with the compatible devices mentioned above.Specifications
- Inner diameter: 2.40 mm (0.095")
- Tip length: 13.00 mm (0.51")
- Series/type: 800 Series cartridge
- Stated temperature range: 420°C – 475°C
- Material/compliance: RoHS compliant, lead-free
- Equivalent: STDC-807
- Compatibility: DS-KIT-1; TMT-9000S-1; TMT-9000S-2; MX-500; MX-5000; MX-5200
Content generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
