Product Overview

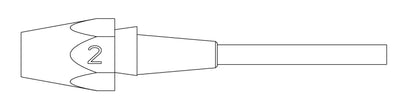

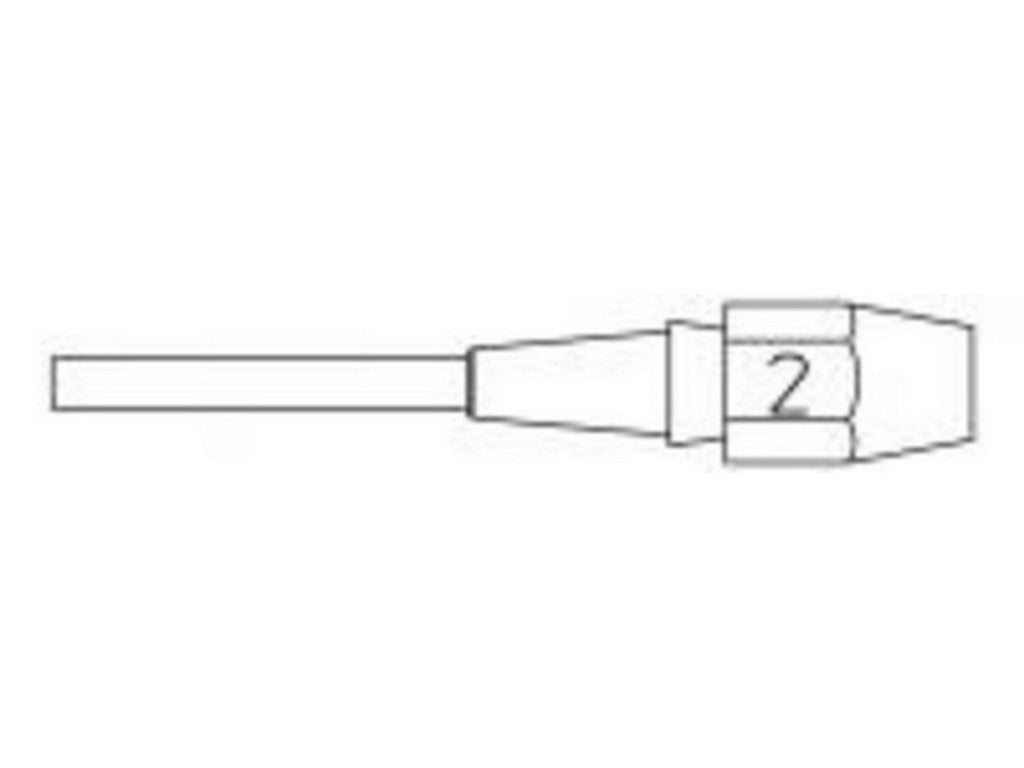

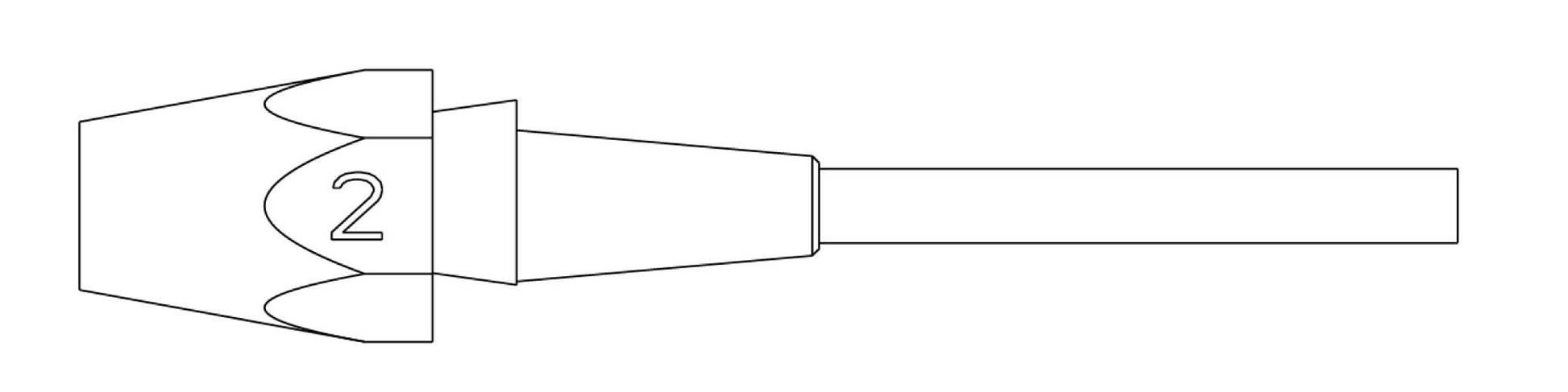

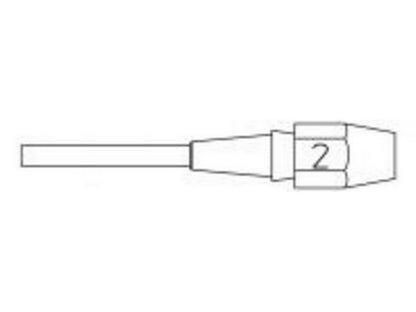

This desoldering nozzle from WELLER is the Weller XDS 2 (Item No. T0051325199). The product is a desoldering nozzle designed to heat solder so it melts, and then remove it using vacuum through an integrated suction tube.Function and Construction
The Weller XDS 2 is part of the XDS tip series and is specified as tip-shape 'Desoldering Nozzle'. The nozzle is constructed to be heated to melt the solder at the solder joint. After activating the vacuum, the molten solder is directed via an integrated tube into a collector.
Documentation
For technical details and manufacturer information, please refer to the manufacturer's datasheet:
View datasheet from manufacturer
Typical Applications
- Removes solder at the solder joint itself by heating and subsequent vacuum suction via the integrated tube.
Specifications
- Product Name: Weller XDS 2
- Manufacturer part number: T0051325199
- Inside Ø: 3.0 mm
- Outside Ø: 5.3 mm
- Nozzle Length: 10.5 mm
- Tip Range: XDS
- Tip Shape: Desoldering Nozzle
- Quantity Per Package: 1
- Product Family: XDS Suction Nozzle Soldering Tips
- UPC: 037103263179
- Function: Heats to melt the solder; after activating the vacuum, the solder is drawn via integrated tube into the collector (as specified by the manufacturer).
