Product Overview

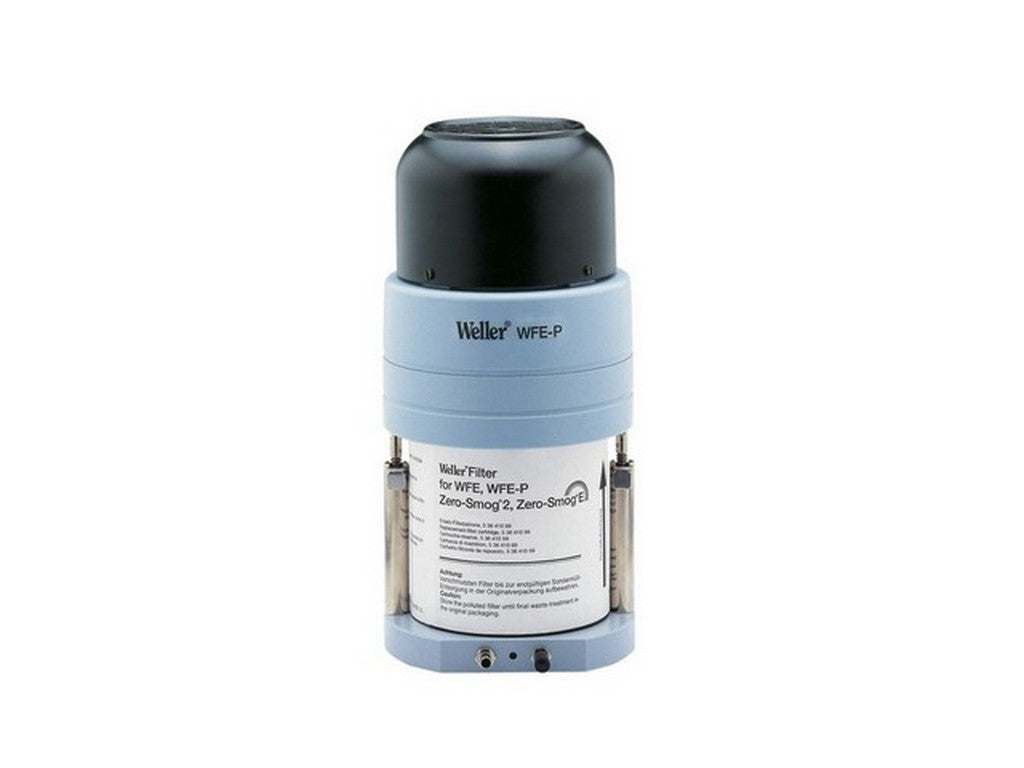

This WELLER extraction unit, WFE P (Item No. T0053638699N), is a portable fume extraction unit for 230 V / 50 Hz. The unit supports the connection of up to two FE soldering irons and uses an electric vacuum pump with two power levels. The pump is built-in, and the unit is not designed for 24-hour continuous operation.Function and Construction
- Built-in electric vacuum pump with two power levels.
- Portable unit with integrated pump (not for 24-hour continuous use).
- Can connect up to two FE soldering irons.
Documentation
See the manufacturer's manual for detailed operation and safety information: See manufacturer's datasheetTypical Applications

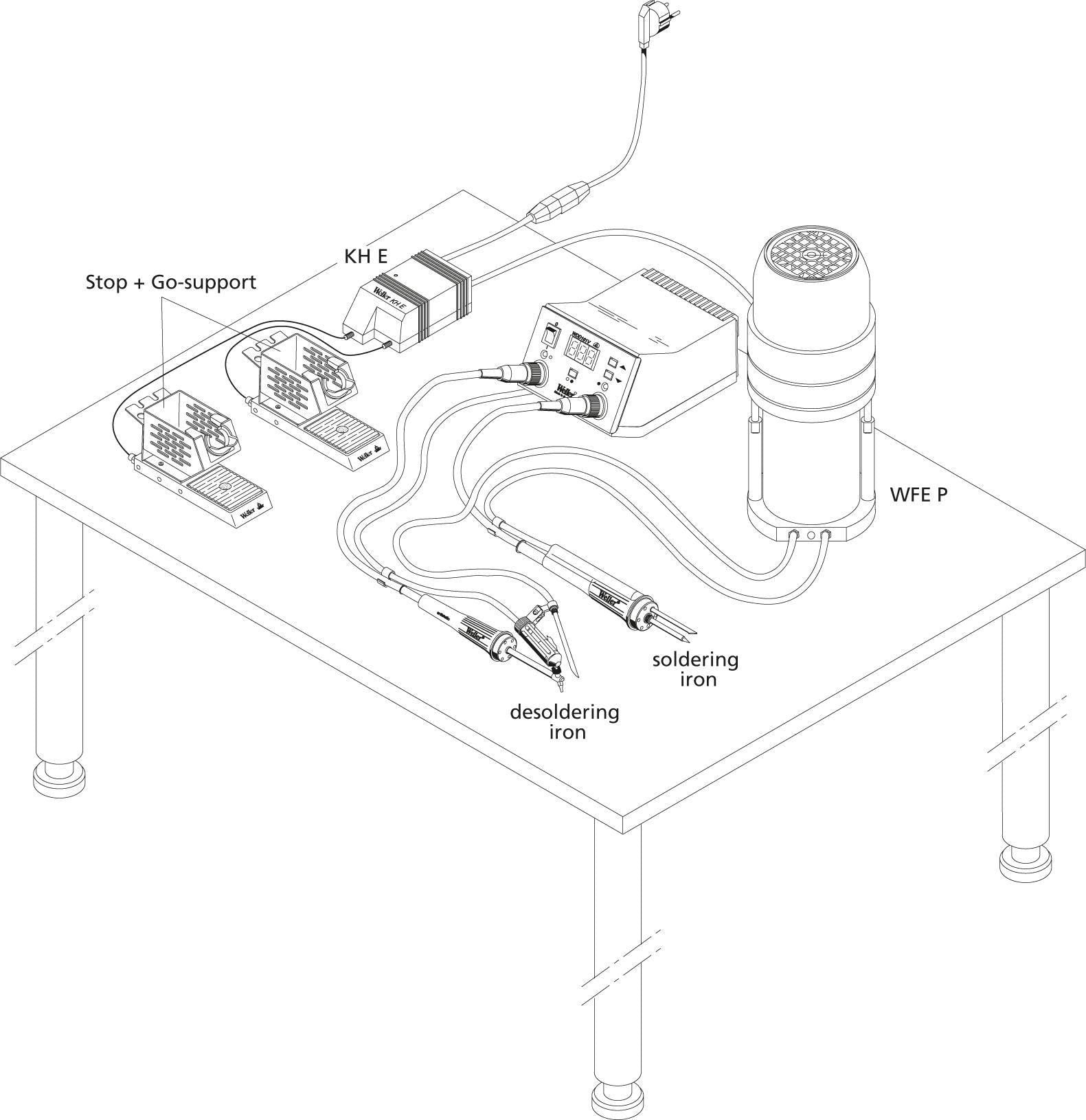

The unit is used for extracting solder fumes from up to two FE soldering irons. The description in the product data explicitly states support for connecting two FE soldering irons, and therefore this is the verified application.Specifications
- Manufacturer: WELLER
- Product Name / Model: WFE P
- Item Number: T0053638699N
- Voltage / Frequency: 230 V / 50 Hz
- Capacity: 50 m³/h
- Power: 70 W
- Dimensions: 140 x 140 x 295 mm
- Filter: H13 particulate filter + broadband gas filter (50% activated carbon + 50% Chemisorb)
- Connection: Up to two FE soldering irons
- Pump: Electric vacuum pump with two power stages
- Note: Not designed for 24-hour continuous operation
The content is generated using AI – we reserve the right for errors.
Contact HIN for further product information.
