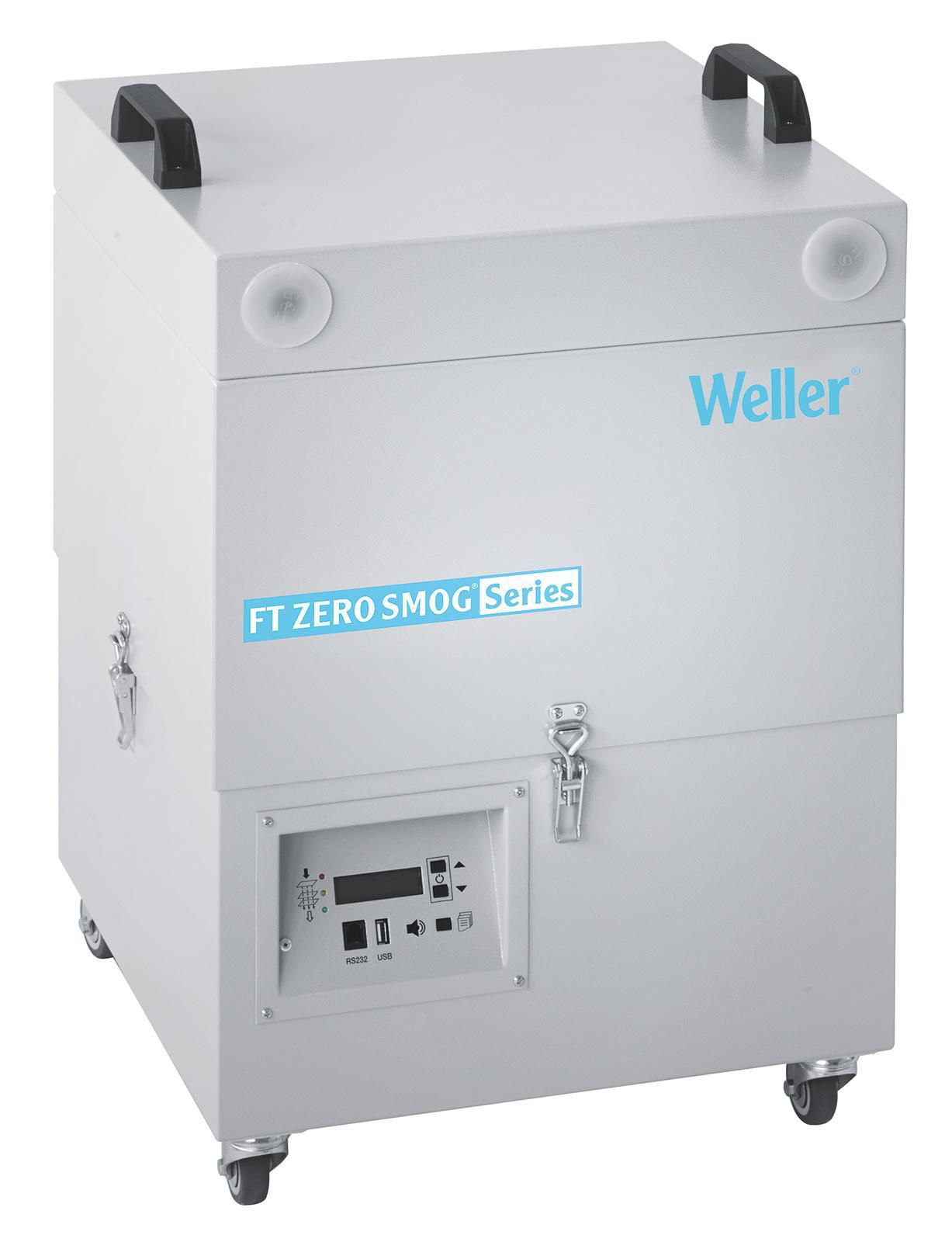

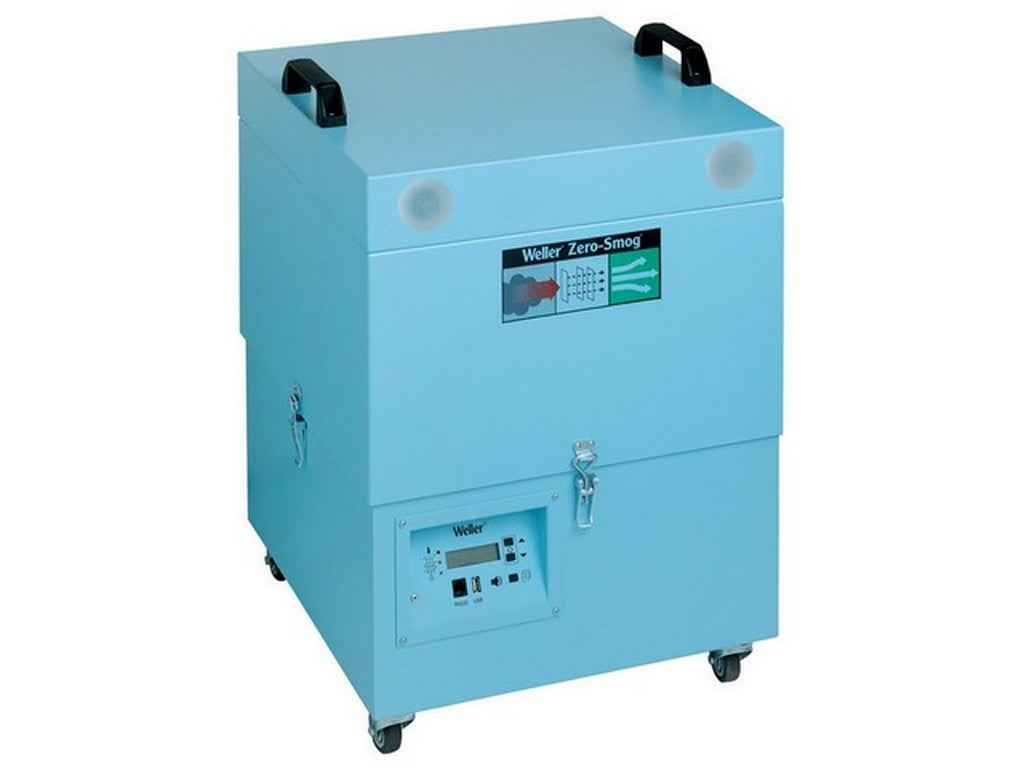

Weller Zero Smog 20T — Extraction Unit
This text describes the Weller Zero Smog 20T (item no. T0053670699N) as a mobile extraction unit for soldering fumes. The unit is designed for 230 V / 50 Hz operation and comes with an electronically controlled, maintenance-free turbine with a maximum vacuum of 10,000 Pa. The Weller Zero Smog 20T can be directly connected to up to 6 Weller FE soldering irons and, using 50 mm pipe system accessories, can serve up to 20 workstations.Key Technical Highlights
- Mains voltage: 230 V / 50 Hz
- Electronically controlled, maintenance-free turbine
- Maximum vacuum: 10,000 Pa
- Direct connection: up to 6 Weller FE soldering irons
- Capacity with 50 mm pipe system: up to 20 workstations
- Mobility: four swivel castors
- Filtration: H13 particulate filter and broadband gas filter (50% activated carbon + 50% Chemisorb)
- Communication/maintenance: USB and RS232 interfaces
Documentation
See the manufacturer's manual for detailed information on installation, maintenance, and operation: View datasheet from manufacturer.Typical Applications
- Direct connection of up to 6 Weller FE soldering irons for local extraction.
- Removal of fumes in configurations with up to 20 workstations using 50 mm pipe system accessories.
Specifications
- Manufacturer: WELLER
- Product name: Weller Zero Smog 20T (T0053670699N)
- Mains: 230 V / 50 Hz
- Dimensions: 450 x 450 x 695 mm
- Weight (catalogue): 45 kg
- Power consumption: 530 VA
- Max. vacuum: 10,000 Pa
- Filtration: H13 particulate filter; broadband gas filter (50% activated carbon + 50% Chemisorb)
- Connections: USB and RS232
