Product Overview

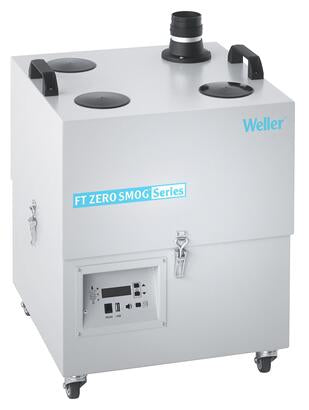

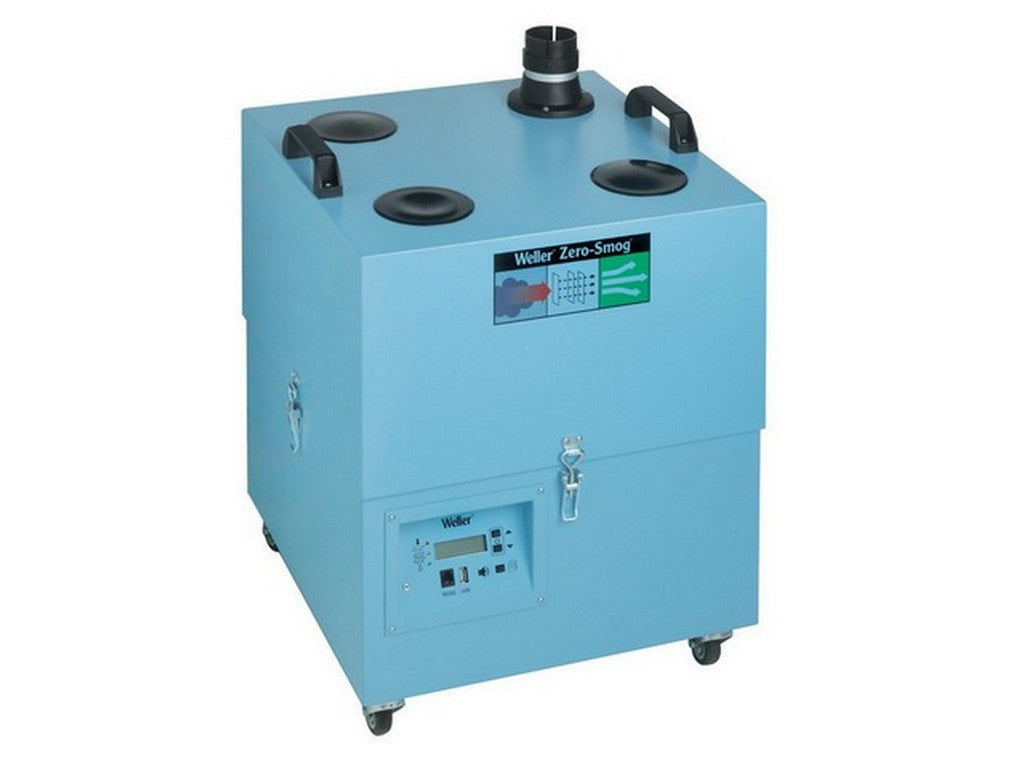

This mobile fume extraction unit from WELLER, the Zero Smog 6V, is a centralized extraction unit designed for soldering applications. The Zero Smog 6V is supplied as a 230 V unit with a maintenance-free turbine and a maximum airflow of 615 m³/h. The unit includes electronic filter monitoring with both optical and acoustic alarms.Filtration and Control
- Particle filtration: HEPA H13.
- Pre-filter: F7 fine dust pre-filter.
- Gas filter: compact broadband filter consisting of 50% activated carbon and 50% Chemisorb.
- Constant Flow Control (CFC) for automatic regulation of airflow.
- Three operating modes: Standard Speed, Speed Limiting, and Economy.
Documentation
Further technical details and product information can be found in the manufacturer's datasheet: View datasheet from manufacturer
Typical Applications
The Zero Smog 6V is intended for fume extraction in soldering applications and is designed for use as a centralized system that can serve between 1 and 8 workstations. The unit is specifically indicated for fume extraction in soldering applications.
Technical Features and Connections
- USB port for efficiency tests and firmware updates (note: the USB module automatically turns off after 2 minutes when inserted).
- RS232 port for remote control or PC connection for external control.
- Electronic filter control with optical and acoustic alarms.
- Maintenance-free turbine.
- Stated as ESD-safe.
Specifications
- Product name: Zero Smog 6V (Item No: T0053666699N)
- Manufacturer: WELLER
- Mains voltage: 230 V
- Max. airflow: 615 m³/h
- Filters: HEPA H13; F7 pre-filter; broadband gas filter (50% activated carbon + 50% Chemisorb)
- Capacity: 1–8 workstations
- Operating modes: Standard Speed, Speed Limiting, Economy
- Dimensions (L x W x H): 460 x 460 x 665 mm
- Weight: 40.00 kg
- Power: 460 VA
- Max. blower vacuum: 3,000 Pa
- USB port: for efficiency tests/firmware
- RS232: yes (remote control/PC connection)
- Compatible nozzle: WX WT
