STAUBLI 18.3004

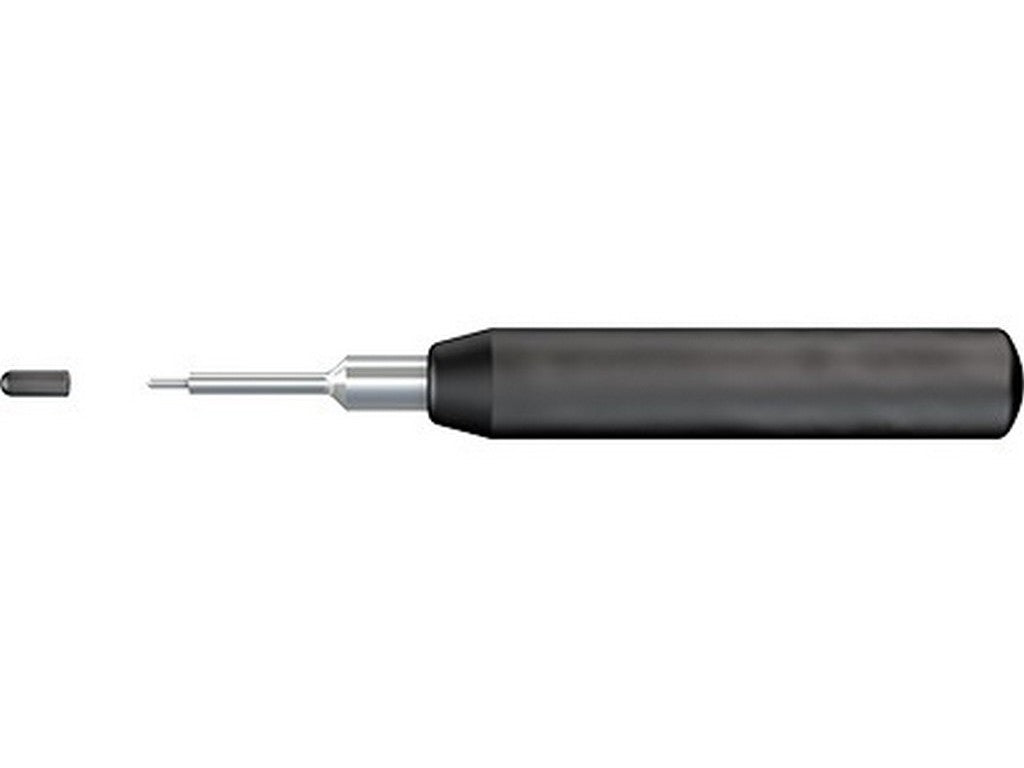

STAUBLI 18.3004 is an extraction tool for socket contacts, type MBA-WZ1,5. It is used to release and extract a contact from its position in a multi-pole connection when working with the assembly, modification or maintenance of Stäubli multi-couplings.
The tool is specified for nominal contact diameters of 1.5 / 1.57 mm. In practice, this means it is designed for small contact sizes where a tool is needed that can work precisely without unduly stressing the rest of the connection.
It is part of Stäubli's range of connectors for multi-couplings and is mentioned in the manufacturer's MA202 assembly instructions along with related tool references. For professional assembly, this type of special tool is relevant because the contact inserts in this product family are designed for correct handling in conjunction with the associated tool.
Typical applications
Used when working with Stäubli multi-couplings, where a contact needs to be extracted from a socket-supported contact insert during assembly or service.
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3004
- Type: Extraction tool (socket)
- Type designation: MBA-WZ1,5
- Nominal contact diameters: 1.5 / 1.57 mm
- Included in Stäubli's documentation for connectors for multi-couplings
- Referenced in MA202 assembly instructions from Stäubli Electrical Connectors AG, Stockbrunnenrain 8, 4123 Allschwil, Switzerland
