Stäubli 18.3011

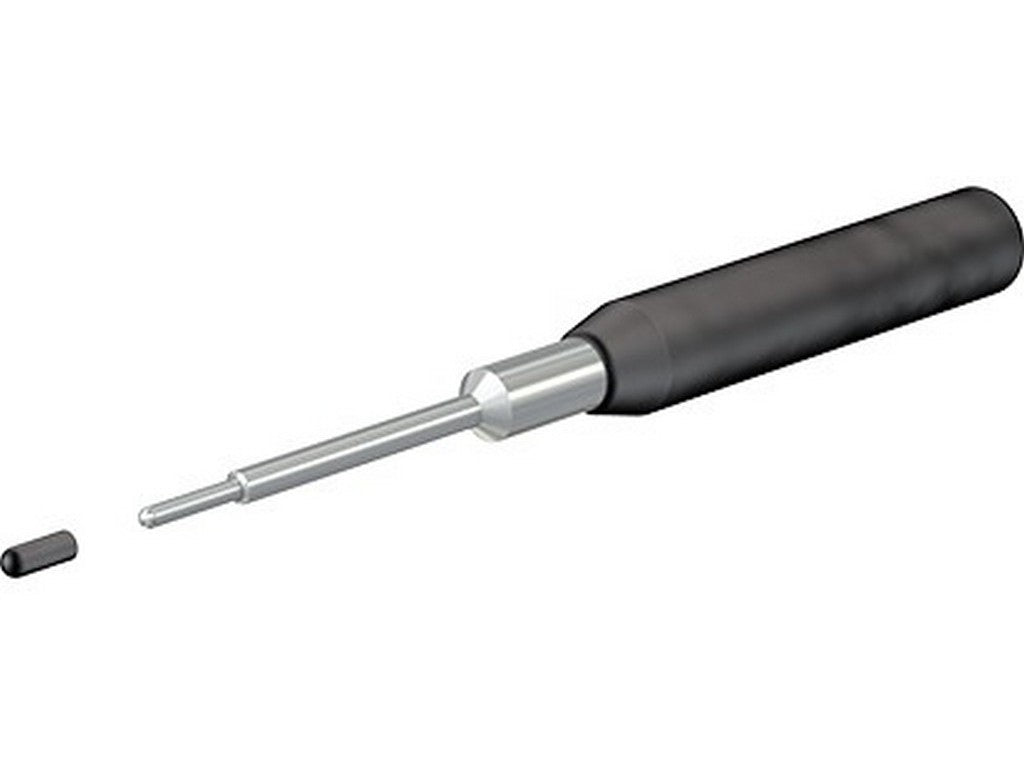

The Stäubli 18.3011 is an extraction tool for the socket versions in the MBA-WZ3 series. It is used when a female contact needs to be removed from a contact-carrying insert again, without having to just try unsuitable tools.
In practice, it is a spare part and a service tool for the assembly and modification of Stäubli contact inserts. This makes sense here because contacts in this type of system must be able to be inserted correctly and also be removed again for repair or faulty assembly. The tool is specified for female thermocouple contacts with a nominal contact diameter of 3 mm.
It therefore belongs in work with Stäubli's assembly and service manuals, where it is included together with the associated insertion and extraction tools. For the technician working with Stäubli components, it is one of the small but important parts that make maintenance and correct modification possible.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3011
- Stäubli order no.: 18.3011
- Series: MBA-WZ3
- Type: extraction tool / socket
- For extraction of female (socket) thermocouple contacts
- Nominal contact diameter: 3 mm
- Included in Stäubli's assembly and product documentation
