STAUBLI 18.3005

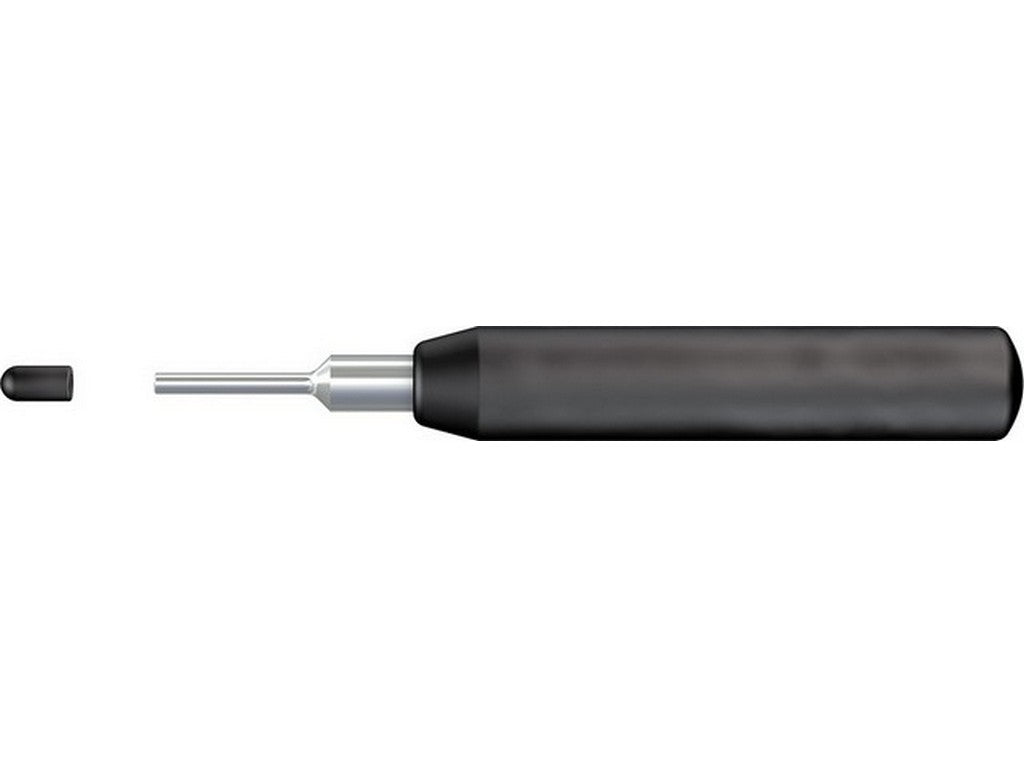

The STAUBLI 18.3005 is an insertion and extraction tool for thermocouple contacts. It is used to correctly insert or remove small contacts from Stäubli's contact inserts without unduly stressing the contact itself.
The tool is specified as type MSA-WZ1,5 and is designed for nominal Ø 1.5 mm pin/socket. Stäubli's documentation also states 1.5/1.57 mm, making it clear that it belongs to the fine end of contact work where precision is crucial.
In practice, it is a spare part and assembly tool for professional use when working with Stäubli multi-couplings and thermocouple contacts. It provides more controlled handling than attempting with improvised aids and fits the type of assembly where one must follow the manufacturer's own instructions and use the specified tools.
Stäubli refers to the product in both the brochure for connectors for multi-couplings and in the assembly instructions IS_MA213-01. It is therefore a tool that is part of the official assembly and service practice for these contacts.
See data sheet from the manufacturer
Typical applications
- Installation of thermocouple contacts in Stäubli multi-couplings
- Removal of thermocouple contacts during service or reconfiguration
- Work requiring handling of contacts with nominal Ø 1.5 mm
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3005
- Type: MSA-WZ1,5
- Function: insertion/extraction tool
- Designed for: thermocouple contacts
- Nominal Ø pin/socket: 1.5 mm
- Brochure indication: 1.5/1.57 mm
- Listed in Stäubli’s brochure documentation for connectors for multi-couplings
- Listed in assembly instructions IS_MA213-01
