Fluke 80T-150UA Universal Temperature Probe
The 80T-150UA is a temperature probe used with a high-impedance digital multimeter when you want to convert temperature directly into a voltage value that the multimeter can display as temperature. This makes it suitable when you are already working with a standard DMM and want to measure temperature without switching to a separate temperature instrument.
The probe measures from -50 to +150 °C and can be switched between °C and °F. The output is 1 mV per degree, so the multimeter reads the temperature as a small voltage signal. In practice, this means that the multimeter must be able to display 1 mV resolution to provide a usable temperature reading.

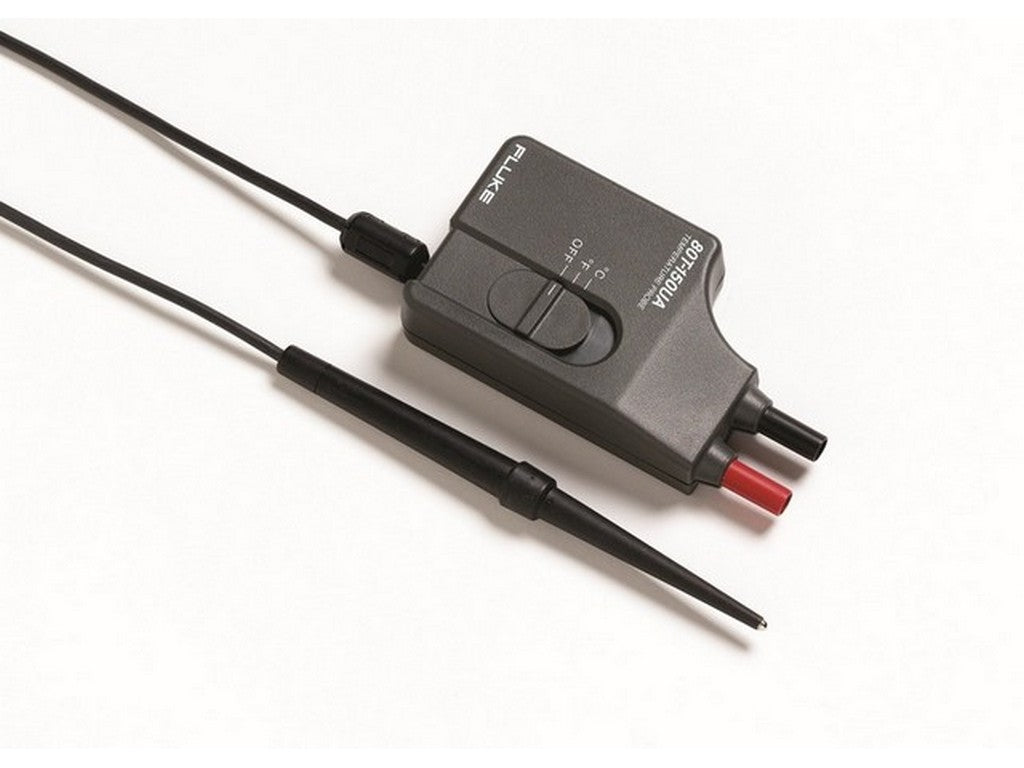

The construction itself is simple: a sensor part and a small converter, connected by cable, and powered by a standard 9 V battery. It connects to the multimeter with two banana plugs at a standard 0.75" spacing, making it compatible with the type of input used by many laboratory and service instruments.
It can be used for temperature measurement of liquids, gases, and solid objects. For solid surfaces, it is especially useful to be able to hold the probe steadily against the object and read the stabilized value. It is also worth noting that the probe has electrical isolation up to 60 V DC or 30 V AC rms, so it should not be used in measurement points with higher voltages.
For a professional user, it is relevant when a simple temperature measurement is desired directly on an existing multimeter, without an extra display or separate logger. It is best suited for tasks where a high-impedance DMM is already part of the equipment.
You can read more here:
See datasheet from the manufacturer
Specifications
- Brand: Fluke
- Model: 80T-150UA
- Item number: 3190456
- Temperature range: -50 to +150 °C
- Temperature range in Fahrenheit: -58 to +302 °F
- Output: 1 mV per degree
- Unit selection: °C / °F
- Power supply: 9 V battery
- Connection: two banana plugs with 0.75" spacing
- Voltage isolation: 60 V DC or 30 V AC rms
- Measurement instrument requirement: high-impedance digital multimeter
