Wall Bracket
Product Overview

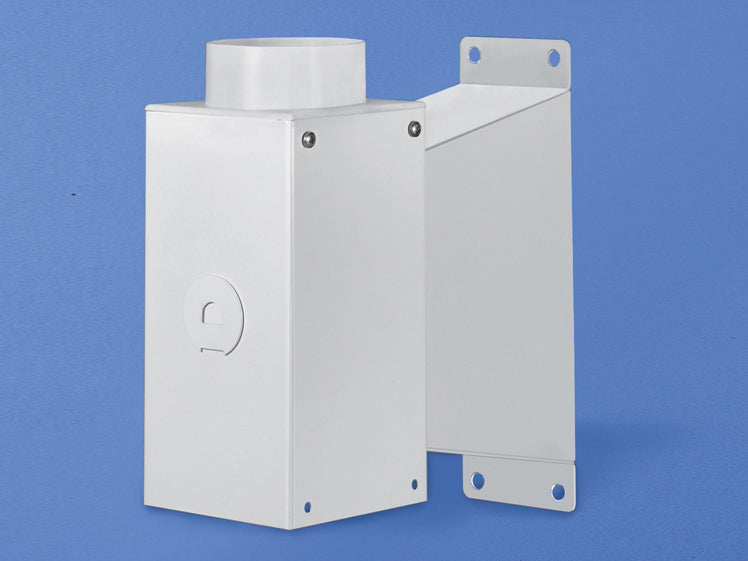

The 2-195 Wall Bracket from ALSIDENT is a wall bracket for mounting Alsident System wall-mounted extraction arms for System 50, 63, and 75. The bracket is described as a universal model with specified dimensions and connection options for ventilation.Material and Surface

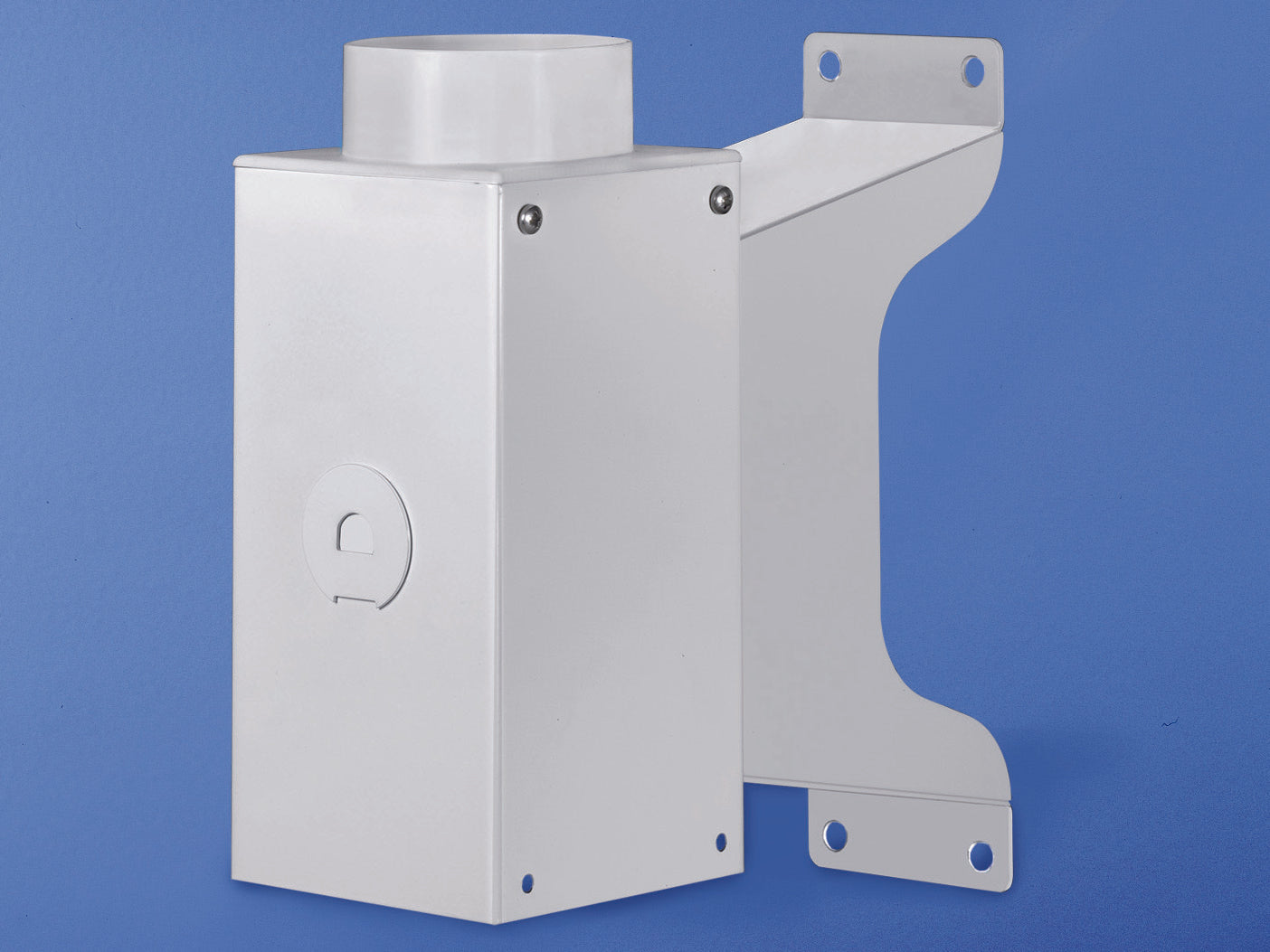

- White version: powder-coated steel with white polyester finish.

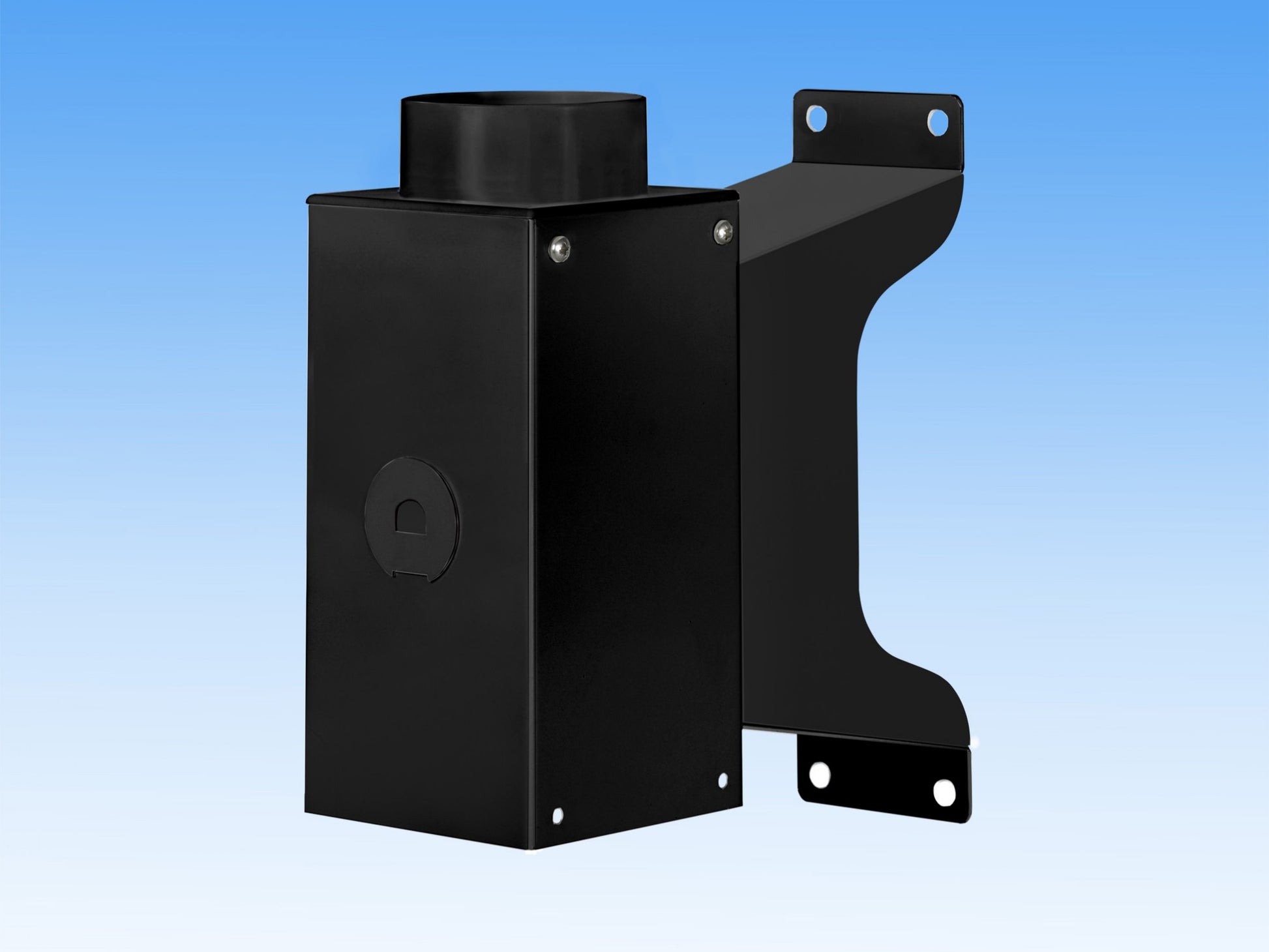

- Alternatives specified in documentation: black powder-coated steel and acid-resistant stainless steel (AISI 316L), pickled.
Ventilation Connection
- Direct connection to spiral duct Ø80 mm.
- Connection with reducer 4-10075 to Ø100 mm (reducer included).
- Connection to Alsident Ø75 aluminum pipe of desired length as an alternative installation.
Typical Applications
The 2-195 Wall Bracket is used for mounting Alsident System wall-mounted extraction arms for System 50, System 63, and System 75. The bracket provides fixed connection options for ventilation pipes via either direct Ø80 connection, reduction to Ø100, or Ø75 aluminum pipe.Documentation
Further technical details, drawings, and mounting instructions are available from the manufacturer. See manufacturer's datasheetSpecifications
- Product Name: Wall Bracket 2-195
- Manufacturer: ALSIDENT
- Compatibility: Alsident System 50, 63, and 75
- Dimensions: 75 x 250 x 232 mm
- Ventilation Connection: spiral duct Ø80 mm; reducer 4-10075 to Ø100 mm (included); option for Alsident Ø75 aluminum pipe
- Material/Surface: powder-coated steel, white polyester (variants: black powder-coated steel; acid-resistant stainless steel AISI 316L, pickled)
- Mounting holes: 4 x Ø8 (specified in manufacturer's documentation)
- Documentation: Manufacturer's datasheet and mounting instructions (see link above)
