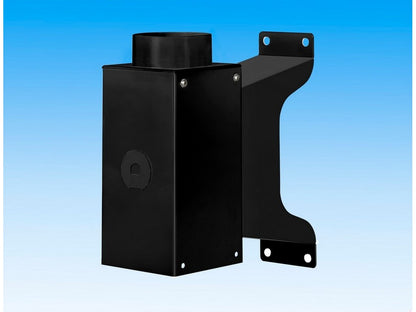

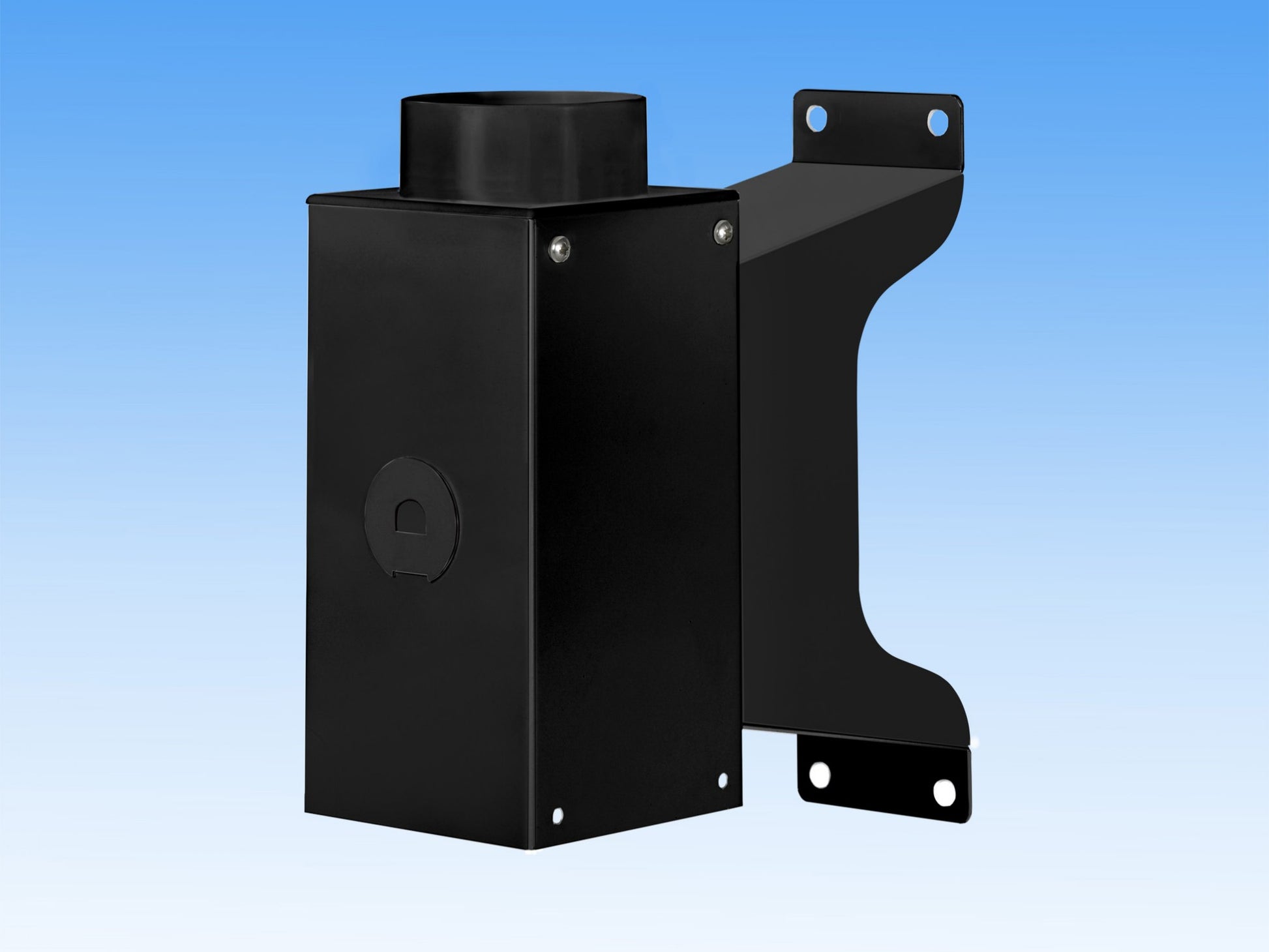

ALSIDENT 2-195-050 wall bracket for System 50, 63 and 75
ALSIDENT 2-195-050 is a universal wall bracket for mounting extraction arms in Alsident System 50, 63 and 75. It is used when the arm needs to be fixed directly to the wall and at the same time connected to the ventilation system in a practical way.
The bracket is made of steel with black polyester powder coating on all surfaces. It is the open version, which simplifies construction and provides flexibility in installation. For many technicians, it is precisely about achieving a stable wall mounting where the connection to the ducting can be adapted to the existing installation.
For the ventilation duct, the connection can be made directly to Ø80 mm spiral ducts. Alternatively, a 100-75 reducer can be used for Ø100 duct, and this reducer is included. It can also be connected with Alsident Ø75 aluminium pipes when a different installation solution is desired.
The external dimensions are 75 x 250 x 232 mm, and the shape of the bracket makes it suitable as a fixed mounting point for the arms in the systems. See datasheet from the manufacturer
Typical applications
- Wall mounting of extraction arms in Alsident System 50, 63 and 75
- Installations where extraction needs to be connected to Ø80 mm spiral ducts
- Setups with Ø100 duct via included 100-75 reducer
- Mounting where Alsident Ø75 aluminium pipes are part of the connection
Specifications
- MPN: 2-195-050
- Manufacturer: ALSIDENT
- Product name: Universal wall bracket
- Compatibility: Alsident System 50, 63 and 75
- Dimensions: 75 x 250 x 232 mm
- Material: Steel with black polyester powder coating on all surfaces
- Connection to ventilation duct: Direct to Ø80 mm spiral duct, via 100-75 reducer to Ø100 duct or with Alsident Ø75 aluminium pipe
- Included parts: 100-75 reducer for Ø100 duct
- GTIN/EAN: Not specified
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
