Product Overview

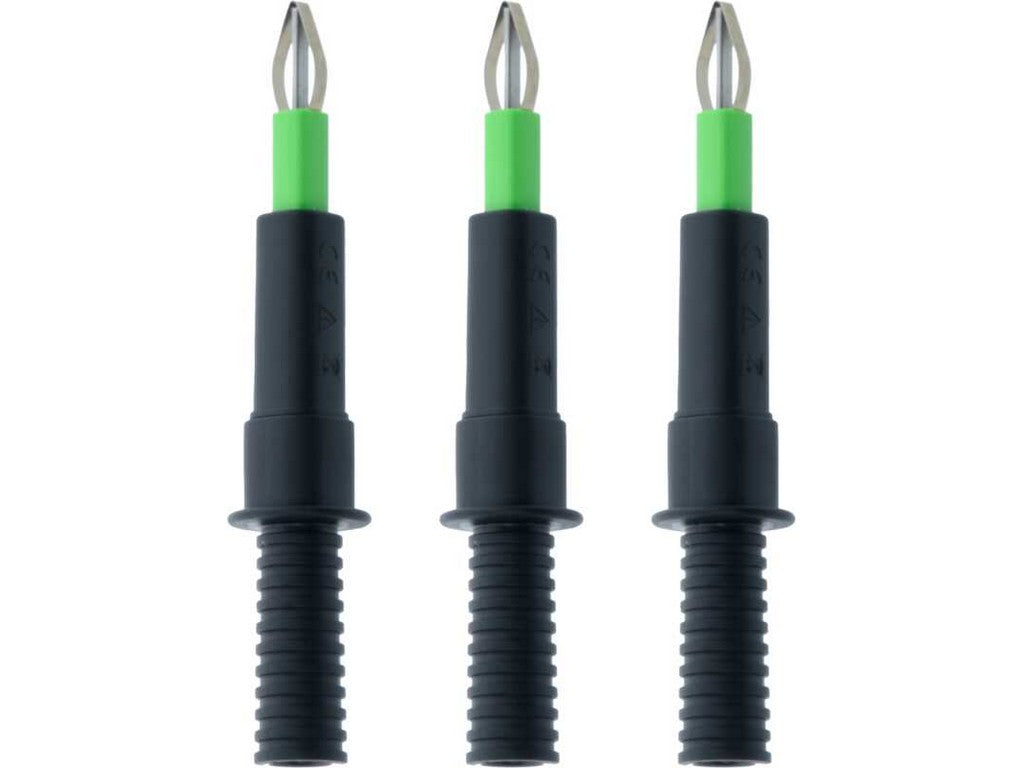

The Z500V Vario-Plug Set from Gossen Metrawatt is a set of variable plug adapters for measurement and testing tasks. The set includes three self-retaining, touch-protected test probes, which are used to connect measuring cables with 4 mm banana plugs or touch-protected plugs to various types of sockets.What the product does
The probes in the Z500V act as a mechanical and electrical connection between measurement equipment and sockets with openings ranging from 3.5 mm to 12 mm. The supplier's description explicitly mentions compatibility with, for example, CEE and Perilex plugs; the probes also fit the square PE jacks on Perilex plugs. The maximum permissible operating voltage is stated as 600 V according to IEC 61010.Practical application
- Connects measuring leads with 4 mm banana plugs or touch-protected plugs to sockets with openings from 3.5–12 mm.
- Provides physical attachment via self-retaining function, while ensuring touch protection.
- Stated maximum operating voltage: 600 V (IEC 61010).
Typical applications
The Z500V is used for direct connection between measuring cables (4 mm banana plugs or touch-protected plugs) and sockets with openings of 3.5–12 mm, including CEE and Perilex plugs as well as square PE jacks on Perilex. The description in the manufacturer's material specifies these concrete application situations.Specifications
- Manufacturer: Gossen Metrawatt (GMC)
- Product name / item number: Z500V (Vario-Plug Set)
- Number of probes in the set: 3
- Type: Self-retaining, touch-protected test probes
- Compatibility: Measuring cables with 4 mm banana plugs or touch-protected plugs; plug openings 3.5 mm to 12 mm (e.g., CEE, Perilex); fits square PE jacks on Perilex
- Maximum permissible operating voltage: 600 V according to IEC 61010
