Product Overview

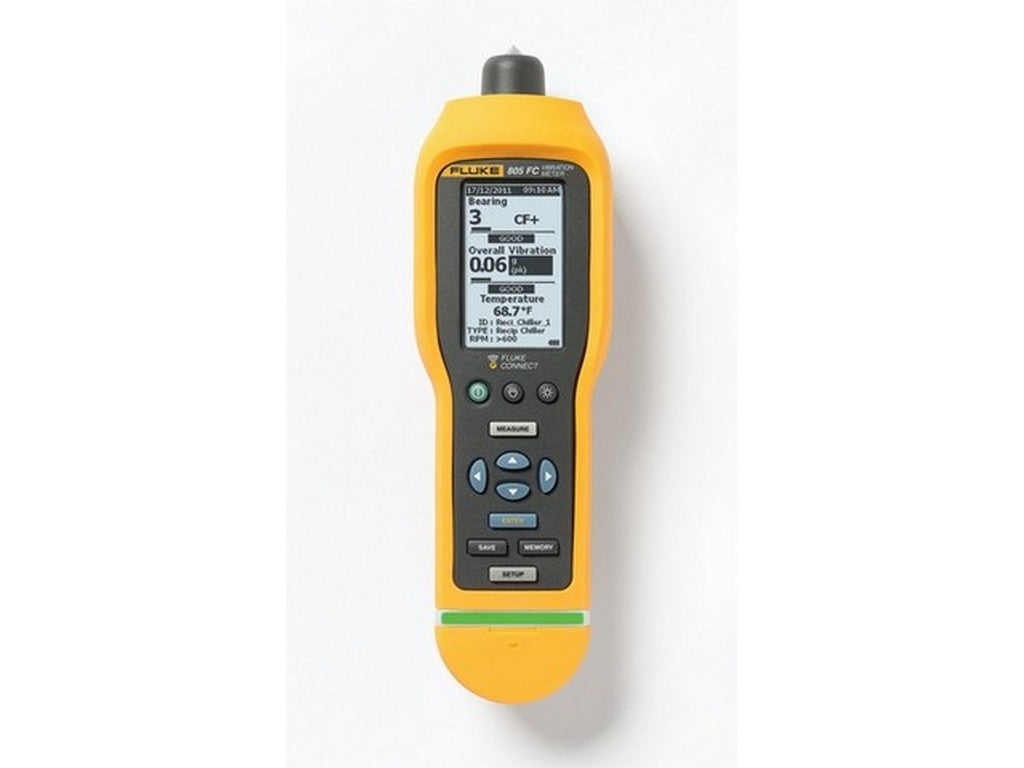

This vibration meter, the Fluke 805 FC Vibration Meter (Part#: 4489229), is a handheld instrument for measuring overall vibration and high-frequency bearing vibration (CF+). The device provides a four-level severity assessment for both overall vibration and bearing condition: Good, Satisfactory, Unsatisfactory, and Unacceptable.Features and Performance
- Overall vibration: 10 Hz to 1,000 Hz (acceleration, velocity, and displacement).
- High-frequency bearing vibration (CF+): 4,000 Hz to 20,000 Hz for bearing condition assessment.
- Infrared spot thermometer: measurement range -20 °C to 200 °C, fixed focus at approximately 3.8 cm.
- On-board memory: up to 3,500 measurements stored internally.

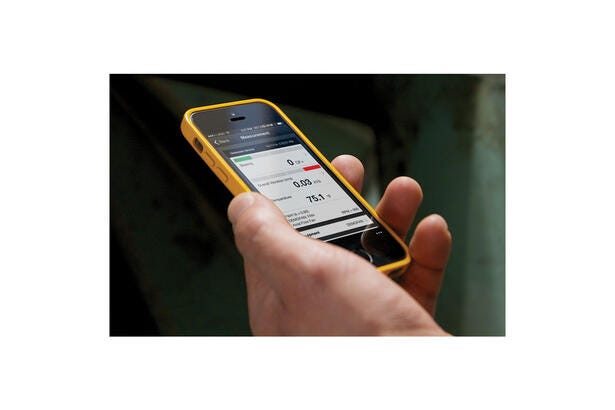

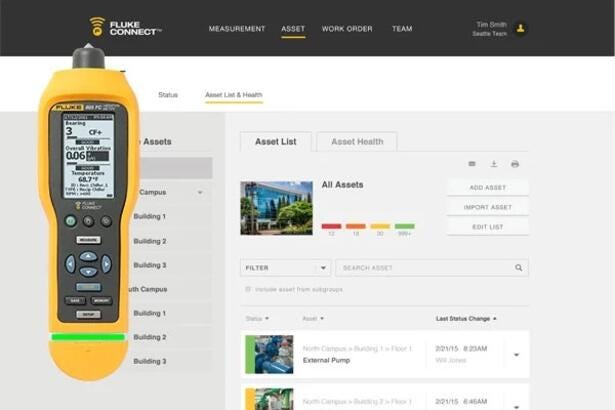

- Data export via USB and wireless transfer with the Fluke Connect mobile app.
Typical Applications
The typical applications are directly stated in the manufacturer's documentation as machine types where the Fluke 805 FC Vibration Meter can be used for checking bearings and overall vibration. Examples from the manufacturer's list include:- Water and feed pumps, including centrifugal pumps and positive displacement pumps.
- Compressors: piston and screw compressors, as well as centrifugal variants.
- Blowers and fans in various drive arrangements.
- Gearboxes with rolling bearings and various types of machine tools/spindles.
- Refrigeration compressors (chillers) and cooling tower drives.
Delivery and Accessories

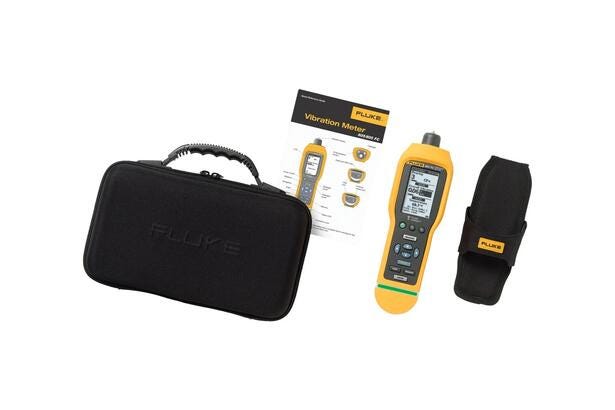

- The standard kit includes a USB cable, storage case, belt holster, quick start guide, and two AA batteries.
For technical details and a complete specification list, please refer to the manufacturer's documentation below.
See datasheet from the manufacturer
Specifications
- Product name: Fluke 805 FC Vibration Meter (Part#: 4489229)
- Overall measurement frequency: 10 Hz to 1,000 Hz
- High frequency (CF+): 4,000 Hz to 20,000 Hz
- Bearing assessment levels: Good, Satisfactory, Unsatisfactory, Unacceptable
- IR thermometer: -20 °C to 200 °C; focal length ~3.8 cm
- Memory: Up to 3,500 measurements
- Data transfer: USB 2.0 and wireless via Fluke Connect
- Sensor sensitivity: 100 mV/g ±10% (specified in manufacturer documentation)
- Measurement range (acceleration): 0.01 g to 50 g; resolution 0.01 g; accuracy at 100 Hz ±5%
- Power supply: 2 × AA batteries (Alkaline or Lithium-ion 2 V dc)
- Operating temperature: -20 °C to 50 °C
- IP rating: IP54
- Physical size and weight: 25.72 cm × 16.19 cm × 9.84 cm; weight 1.16 kg
Source: Manufacturer's datasheet and product documentation.
