Product Overview

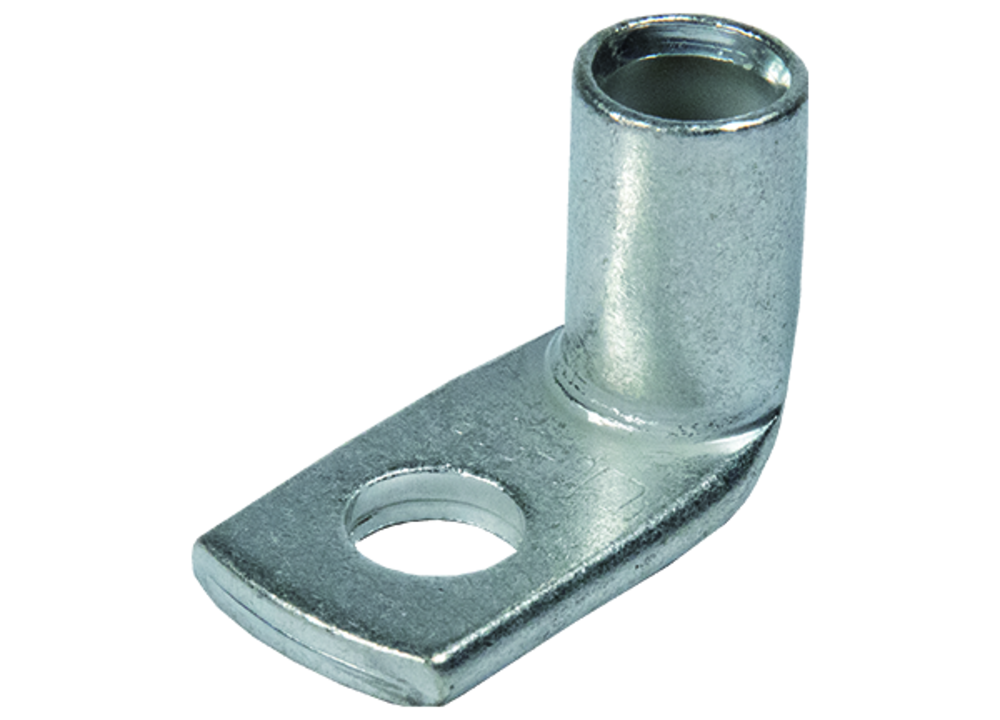

This 90° tubular cable lug (R-series) from WEITKOWITZ, ICR61090, is designed as an angled hollow space cable lug for electrical connections. The ICR61090 is specified for a conductor cross-section of 6 mm² and has an M10 (10 mm) metric screw/bolt connection. The product's application area and dimensions are provided by the manufacturer on the product page.Construction and Conductor Compatibility
- Type: 90° tubular cable lug, R-series.
- Compatible conductor types: stranded, fine-stranded, compact stranded, and fine-stranded round or sector conductors.
- Connection: M10 (10 mm) metric thread for screw/bolt mounting.
Typical Applications
- The ICR61090 is used for mechanical and electrical connection of 6 mm² conductors to an M10 screw or bolt connection.
- Suitable for installations where the conductor type is specified as stranded, fine-stranded, compact stranded, or fine-stranded in round or sector solutions.
Documentation
Product information and dimensions are verified on the manufacturer's product page. The information in this description is based solely on the provided manufacturer data.
Specifications
- Product name: ICR61090 (R-series).
- Manufacturer: WEITKOWITZ.
- Nominal conductor cross-section: 6 mm².
- Connection thread (metric): M10 (10 mm).
- Dimensions: d1 = 3 mm, d3 = 6 mm, D2 = 10 mm, b = 18 mm, L = 17 mm, a = 8 mm.
- Packaging: 25 pcs per pack.
- Net weight: 0.68 kg per 100 pcs.
Source: Product information verified on the manufacturer's product page.
Content generated using AI – subject to errors.
Contact HIN for further product information.
