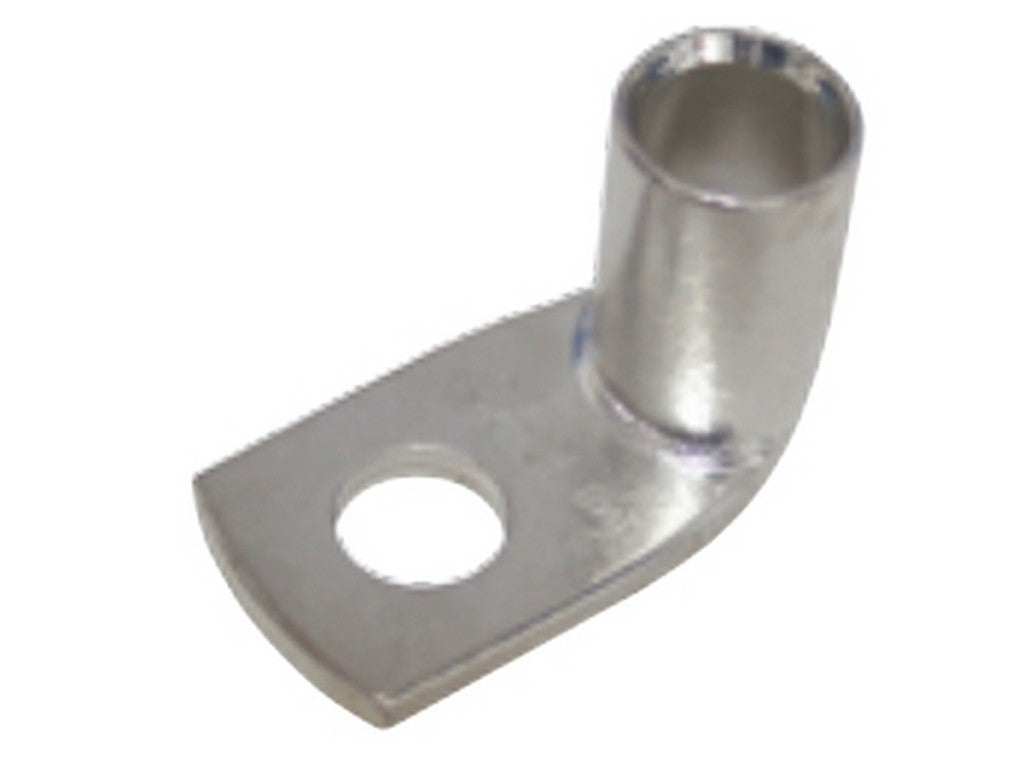

90° Angle tubular cable lug (F-series)
Product Description
ICF1201690 is a 90° angle tubular cable lug from Intercable Tools' F-series, specified under manufacturer/supplier WEITKOWITZ. The product is designed for fine-stranded and extra fine-stranded round or sector-shaped conductors with a nominal cross-section of 120 mm². The bolt connection is specified as metric M16. ICF1201690 appears in Intercable Tools' official product overview and is listed with series designation F-series and article number ICF1201690. The dimensions and weight data used in this description are taken from the official product list for this series.Typical applications
ICF1201690 is used for connecting fine-stranded and extra fine-stranded round or sector-shaped conductors with a nominal cross-section of 120 mm², where a 90° angle at the cable lug's output is required. The product is specified with an M16 bolt connection for the electrical connection.
Sources
See product list from Intercable Tools
Specifications
- Product name: ICF1201690.
- Series: F-series (Intercable Tools).
- Angle: 90° angle tubular cable lug.
- Nominal conductor cross-section: 120 mm².
- Bolt (connection) thread: M16.
- Dimensions: d1 = 16 mm; d3 = 21 mm; D2 = 17 mm; B = 31 mm; L = 29 mm; A = 28 mm.
- Net weight: 8.33 kg per 100 pcs.
- Standard packaging quantity: 25 pcs. per pack.
- Suitable for: fine-stranded and extra fine-stranded round or sector conductors (specified in the manufacturer's product text).
