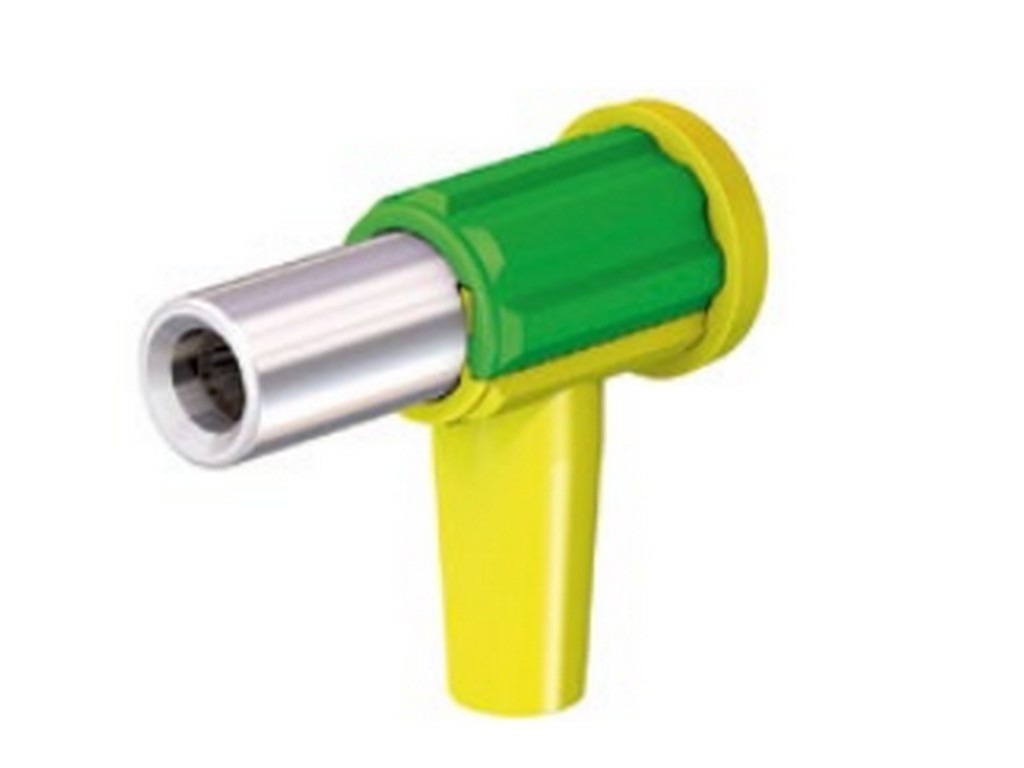

STAUBLI 55.3220-20
The STAUBLI 55.3220-20 is an angled socket for self-assembly of equipotential bonding leads. It is used when you want to build a connection on-site while having a solution that is designed and certified for the purpose.
The socket itself is made of nickel-plated brass, and the contact is a MULTILAM contact made of gold-plated, cold-drawn copper alloy. This provides a technical design suitable for professional assembly, focusing on safe and reproducible connections. The connection is made with a screw terminal, ensuring the conductor is mechanically secured in the socket.
For self-assembly, it is important to adhere to the specified parts and assembly steps. Stäubli specifies that the connectable conductor cross-section is 4.0 mm², and the maximum outer diameter is Ø 5.1 mm. The insulation material is PA, and the color code is 20. It is also worth noting that the part is TÜV Rheinland-tested under certificate no. R 60166583.
If you need to assemble an equipotential bonding lead, this component makes it possible to create a compact and angled connection with the correct mechanical and electrical properties in the finished assembly.
See datasheet from the manufacturer
Typical applications
Used for self-assembly of equipotential bonding leads in professional installations.
Specifications
- Manufacturer: STAUBLI
- MPN: 55.3220-20
- Product designation: POAG-KBT6-EC/4
- Angled socket for self-assembly
- For equipotential bonding
- Material: nickel-plated brass
- Contact: MULTILAM in gold-plated, cold-drawn copper alloy
- Connection: screw terminal
- Connectable conductor cross-section: 4.0 mm²
- Maximum outer diameter: Ø 5.1 mm
- Insulation material: PA
- Color code: 20
- TÜV Rheinland certificate: R 60166583
