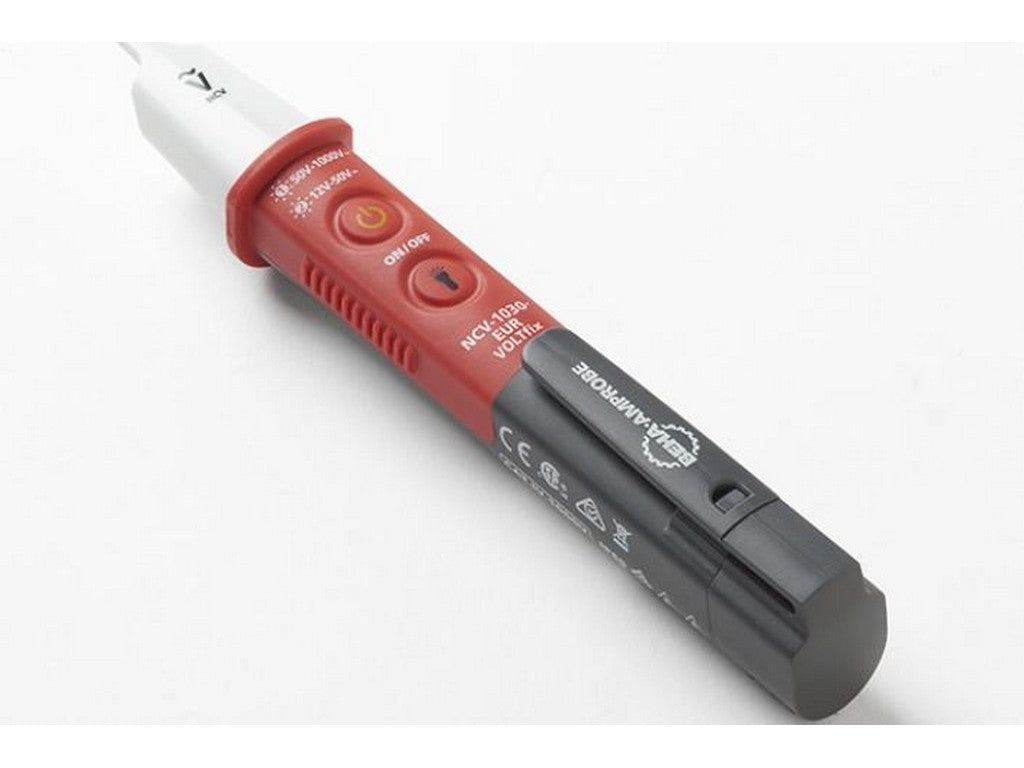

Non-Contact AC Voltage Tester: Beha-Amprobe NCV-1030-EUR
Product Overview
The Beha-Amprobe NCV-1030-EUR is a non-contact AC voltage tester for detecting AC voltage without direct electrical connection. The device detects voltage in two ranges and indicates the presence of voltage with both a light indicator and an audible alarm. The NCV-1030-EUR comes with installed batteries and a built-in work light.Documentation
Additional technical details and manufacturer information can be found in the manufacturer's data sheet: View manufacturer's data sheet
Typical Applications
- Detection of AC voltage in cables and wires.
- Checking wall sockets and plugs for voltage and polarity.
- Inspection in junction boxes, circuit breakers, and extension cords for voltage presence.
- Testing through wire insulation to verify voltage presence without interrupting the circuit.
Function and Indicators
The Beha-Amprobe NCV-1030-EUR indicates the presence of voltage via a clear red LED and an audible buzzer. The tester has a high-sensitivity range for low voltage and standard sensitivity for higher voltages. A built-in work light provides local illumination during inspection.
Specifications
- Model: Beha-Amprobe NCV-1030-EUR (Article No. 4918085)
- Detection ranges: standard 50–1000 V AC; high-sensitivity 12–50 V AC
- Indication: light (bright red LED) and audible buzzer
- Built-in work light
- Safety category: CAT IV 1000 V
- Protection: IP65 (water and dust resistant)
- Power supply: 2 × 1.5 V LR03 (AAA) batteries included
- Dimensions: approx. 156.2 × 23.5 × 27.5 mm
