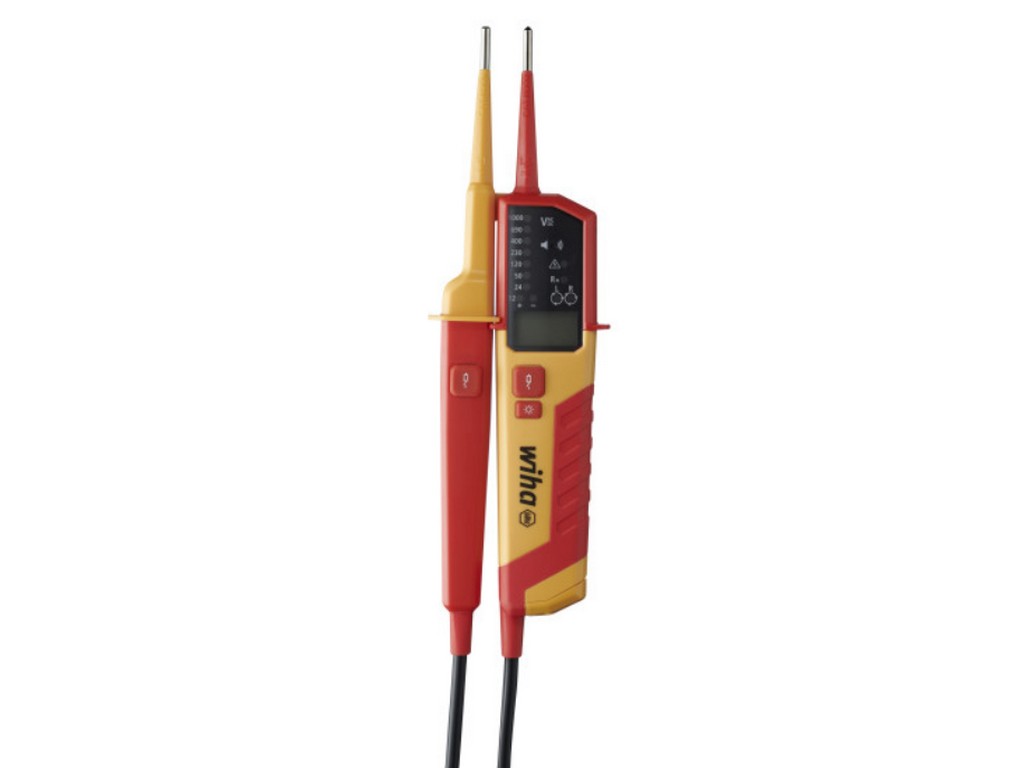

Voltage and continuity tester
The Voltage and continuity tester, order number 45217 from WIHA, is a handheld tester for measuring AC and DC voltages, as well as continuity and resistance testing. The product is identified in the manufacturer's technical documentation as model 45217 and comes with features for single-pole phase testing, phase sequence testing, and RCD (FI/RCD) trip testing.
Functions and Use
- Tests AC voltage in the range 0.5–1,000 V and DC voltage in the range 0.5–1,500 V.
- Single-pole phase testing and two-pole phase sequence determination relative to earth.
- RCD (FI/RCD) trip test, continuity and resistance testing, and diode test are documented in the manufacturer's manual.
- The device features polarity indication, automatic on/off, TRMS measurement, measuring point illumination with white LED, and vibration alarm.
The Voltage and continuity tester, order number 45217, is used for verifiable testing functions as specified in the manufacturer's manual. The instructions in the accompanying datasheet describe safety precautions and operation; pay particular attention to the specified measurement categories and limits in the documentation.
Typical Applications
- Determined and described by the manufacturer: voltage testing, single-pole phase testing, phase sequence testing against earth, RCD (FI/RCD) trip testing, as well as continuity and resistance testing.
Documentation and further technical details can be found in the manufacturer's datasheet:
See datasheet from the manufacturerSpecifications
- Manufacturer: WIHA
- Item number: 45217
- AC voltage range: 0.5–1,000 V (documented)
- DC voltage range: 0.5–1,500 V (documented)
- Built according to IEC 61243-3:2014 (documented)
- Measurement categories: CAT IV 600 V, CAT III 1,000 V (documented)
- IP rating: IP64 (IEC 60529) (documented)
- Functions: polarity indicator, single-pole phase testing, two-pole phase sequence determination against earth, RCD (FI/RCD) trip test, continuity test, resistance test, diode test, TRMS, automatic on/off, measuring point illumination, vibration motor (documented)
- Included accessories: 2x 4 mm test probe adapters, 2x CAT III/1,000 V test probe protection, 2x 1.5 V batteries (AAA, IEC LR03), operating manual (documented)
