Product Overview

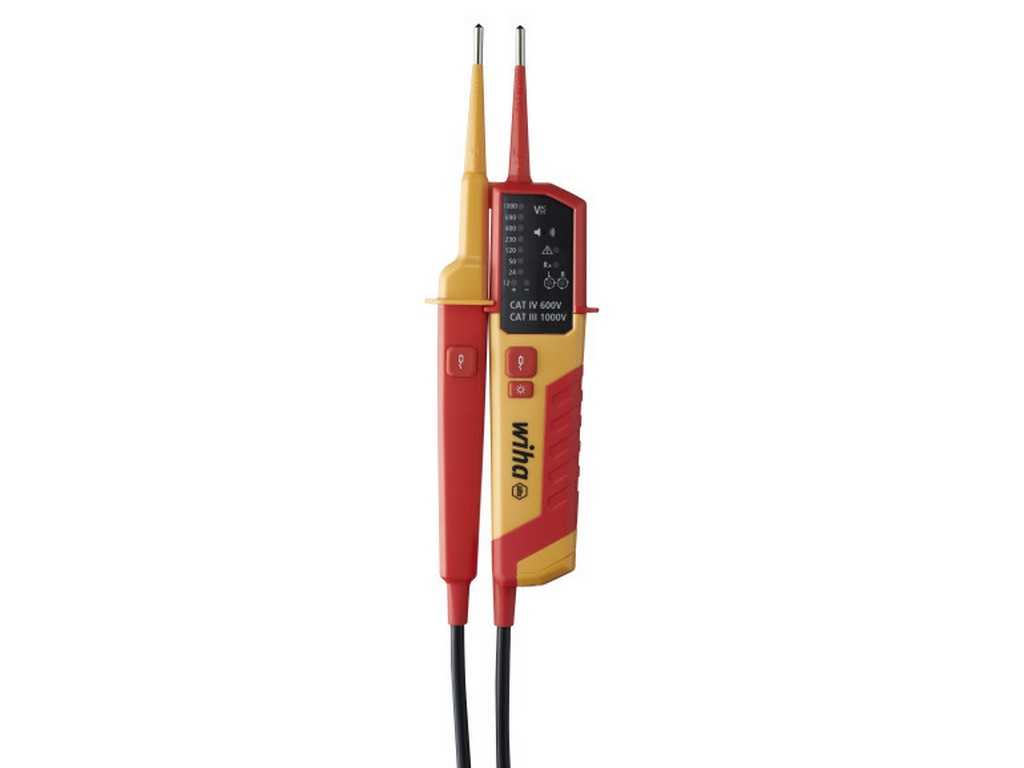

The Wiha voltage and continuity tester 45216 is a voltage and continuity tester designed for measuring both AC and DC voltages, as well as for functional tests such as continuity, phase sequence (direction of rotation), single-pole phase detection, and RCD/FI trip testing. The Wiha voltage and continuity tester 45216 displays measured values on an LED display and provides an audible signal for continuity tests.Features and Operation
As a technical tool, the product offers the following verified functions and features:- AC voltage measurement: 12–1,000 V
- DC voltage measurement: 12–1,500 V
- Continuity test with audible tone
- Phase sequence test (rotation) and single-pole phase detection
- Automatic polarity detection
- LED display for indicating measurement results
- Integrated measurement point illumination (flashlight) and vibration alarm
- Integrated spacer for one-hand socket testing and RCD/FI trip buttons
Documentation
See datasheet from the manufacturerTypical Applications
- Measurement of AC and DC voltage within the specified measurement ranges
- Checking electrical continuity with visual and audible indication
- Phase sequence determination (direction of rotation) against ground
- Single-pole phase detection and RCD/FI trip testing via the integrated trip buttons
Specifications
- Measurement range AC: 12–1,000 V
- Measurement range DC: 12–1,500 V
- Functions: continuity test (with audible tone), phase sequence test, single-pole phase detection, automatic polarity detection
- Indicator: LED display
- Special features: integrated spacer for one-hand socket testing, measurement point illumination, RCD/FI trip buttons
- Safety standard: IEC/EN 61243-3:2014 (stated in manufacturer's material)
- Protection class: IP64
- Category classification: CAT III 1000 V / CAT IV 600 V
- Supplied with: 2x 4 mm test probe adapters, 2x CAT III/1,000 V test probe protection, 2x 1.5 V batteries (AAA), and user manual
- Product dimensions: 282 x 110 x 50 mm
