WP 65 loddekolbe

Brief description

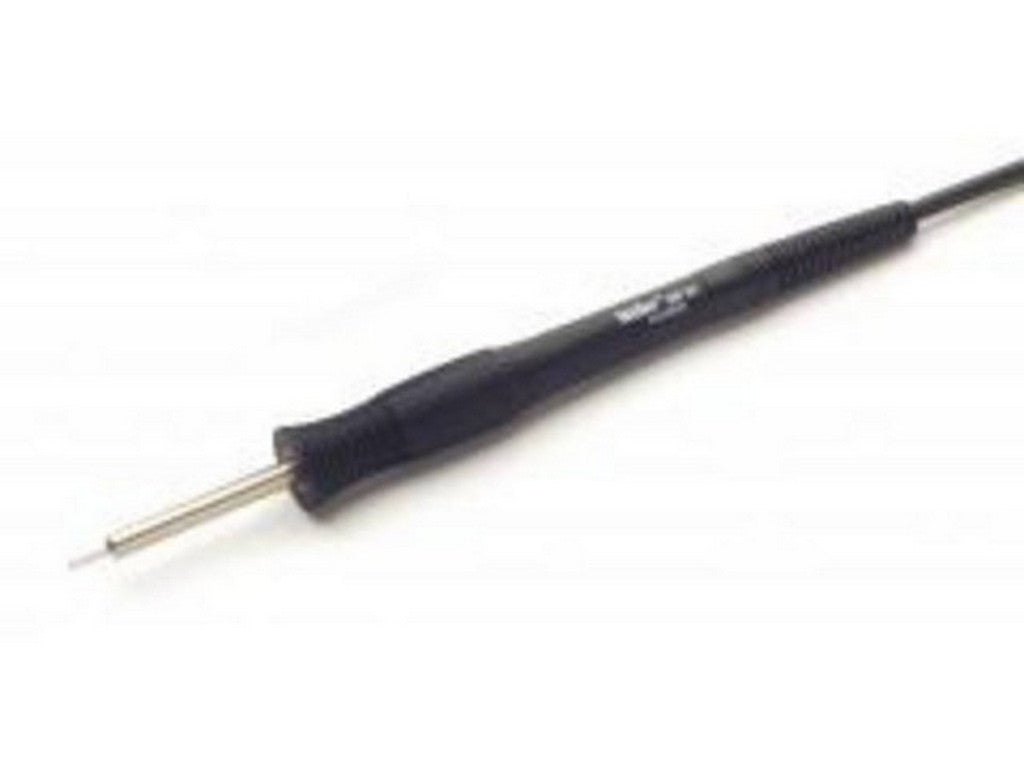

This WELLER WP 65 soldering iron (Item No. T0052921599N) is a 65W, 24V soldering iron designed for fine soldering work. The WP 65 uses Power-Response heating technology with improved sensor placement and accepts interchangeable XNT series soldering tips. The unit is ESD safe and specified for use with WT stations and WR rework stations.

Technical description

• Power: 65 W, operating voltage: 24 V.
• Power-Response heating technology with improved sensor position and fast response time.

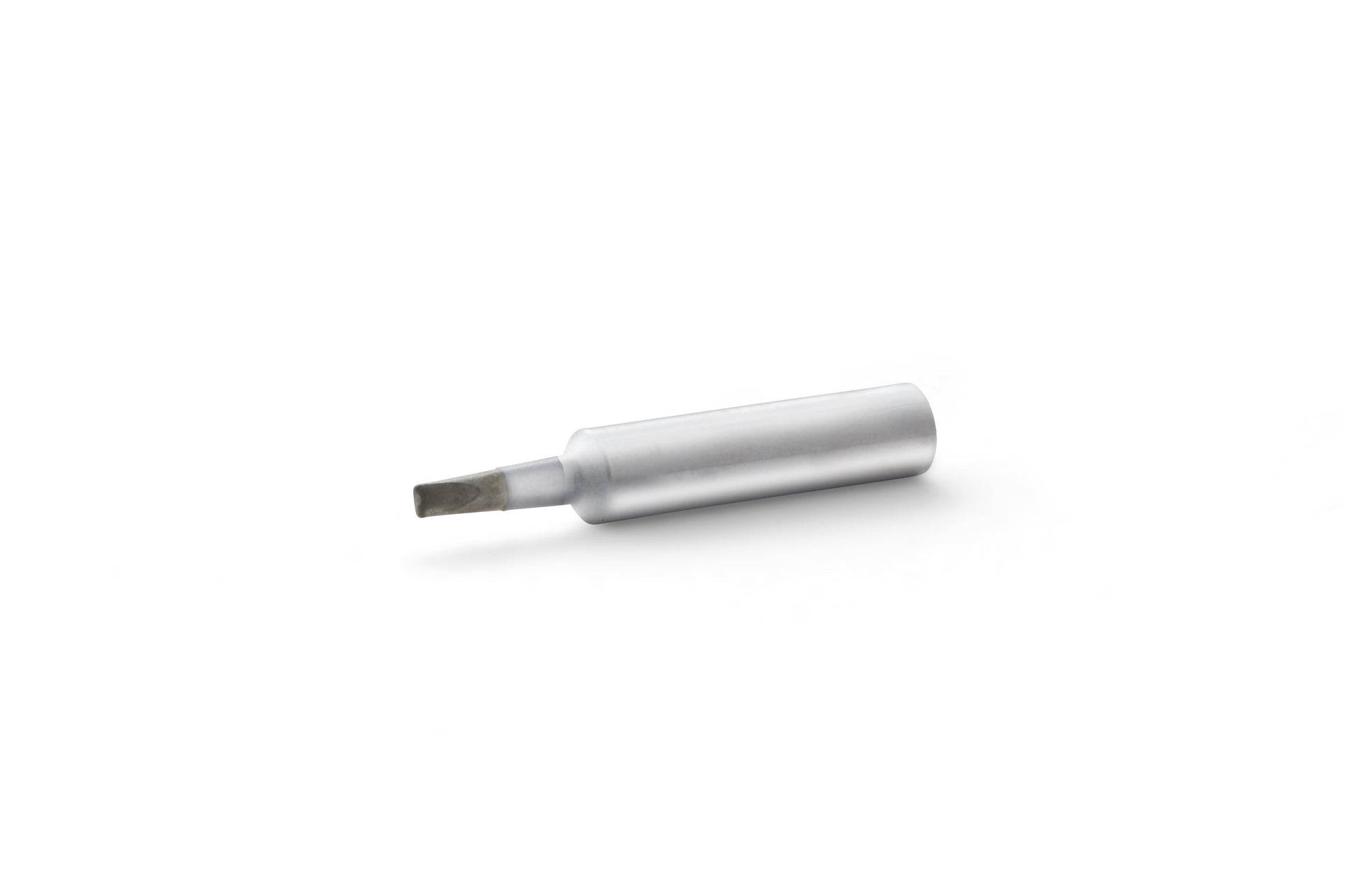

• Accepts XNT series interchangeable soldering tips (Tip Range: XNT, Tip Type: HS XNT).
• Approx. heating time: 7 seconds (specified for 50–350 °C).
• Temperature range: 50–450 °C (specified in manufacturer data).
• ESD safe: Yes.

Typical applications

• Suitable for soldering work on small and medium-sized components with average energy requirements (specified by the manufacturer).
• Suitable for fine soldering work in conjunction with WT stations and WR rework stations (specified compatibility).

Documentation

Further technical details and manufacturer data can be found in Weller's official datasheet.

See datasheet from the manufacturer

Specifications

• Product name: WP 65 (Item No. T0052921599N)
• Power: 65 W
• Voltage: 24 V
• Heating time (50–350 °C): approx. 7 sec.
• Temperature range: 50–450 °C
• Tip range: XNT; Tip type: HS XNT
• ESD safe: Yes
• Recommended for use with: WT stations and WR rework stations
• Product family: WT Soldering Irons
