WR 2002 Set DSX80/WP80 230V F/G

Product Overview

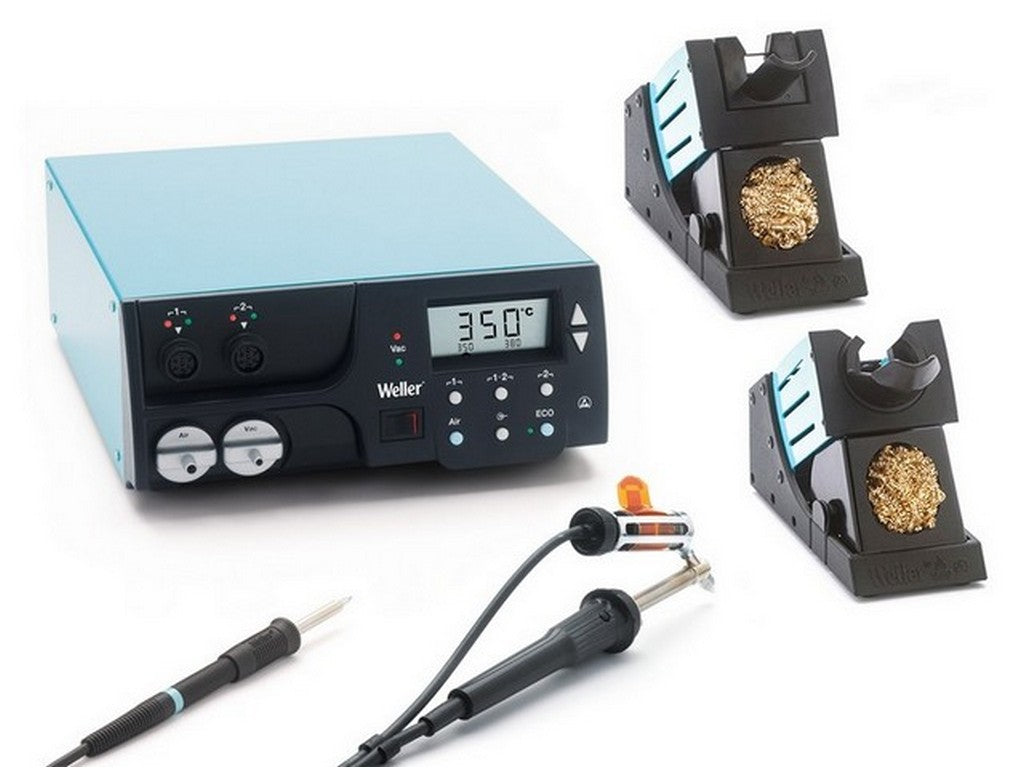

This 2-channel rework station WR2002 Set 230V from WELLER is a set for rework and minor repairs. The WR2002 Set 230V (Item No. T0053380699N) includes the WR 2 power supply unit, a WP 80 soldering iron, and a DSX 80 desoldering iron. The set is rated at 200 W (300 W) and allows simultaneous operation of up to two soldering tools, but hot air and desoldering cannot be used simultaneously.

Features and Operation

• Two channels: simultaneous connection and operation of up to two tools.
• Power: 250 W (300 W) specified in technical data.
• Voltage: 230V.
• Temperature range: 50–550 °C.
• Vacuum for desoldering: 0.7 bar.
• Automatic tool identification: Yes.
• Capacity (air): 18 l/min; maximum hot air flow rate: 10 l/min (depends on tool).
• ESD Safe: Yes. IPC compliant (Tip to Ground) corresponds to IPC-J-001D.

Typical Applications

Description provided by the manufacturer: small repair kit for rework tasks. The WR2002 Set 230V is designed for rework operations where two tools can be connected simultaneously, with the limitation that hot air and desoldering cannot be used at the same time.

Documentation

See datasheet from the manufacturer

Specifications

• Product name: WR2002 Set 230V (Item No. T0053380699N)
• Manufacturer: WELLER
• Type: 2-Channel Rework Station Set
• Included tools: WR 2 power unit, WP 80 soldering iron, DSX 80 desoldering iron
• Power: 250 W (300 W)
• Voltage: 230V
• Temperature range: 50–550 °C
• Temperature accuracy: ±9 °C; for hot air ±30 °C
• Temperature stability: ±2 °C
• Vacuum (desoldering): 0.7 bar
• Capacity (air): 18 l/min
• Maximum hot air flow rate: 10 l/min
• Number of channels: 2
• Dimensions (L x W x H): 273.0 x 235.0 x 102.0 mm
• Weight (catalogue): 6.70 kg
• Automatic Tool Identification: Yes
• Equipotential Bonding Socket: Via 3.5mm jack bush (initial state - hard-grounded)
• Overcurrent release: 1.6 A
• ESD Safe: Yes
• IPC Compliant (Tip to Ground): Corresponds to IPC-J-001D
