Product Overview

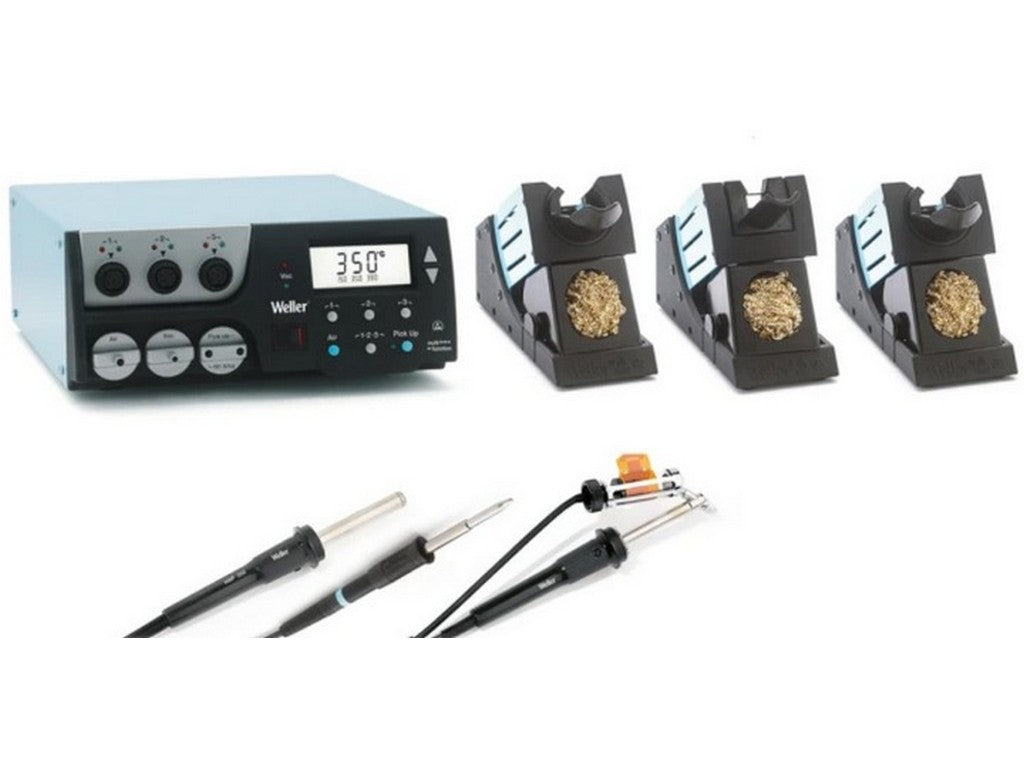

This rework station from WELLER, WR 3000MER (T0053368870N), is a 3-channel WR 3M rework station designed for 230 V operation with a total power of 400 W. The unit supports desoldering, hot air (HAP), and soldering tools and comes with the option to connect a DSX 120 desoldering iron for horizontal applications.Features and Connections
- 3-channel rework station.
- Operating voltage: 230 V.
- Total power: 400 W.
- Temperature range: 50 - 550 °C.
- Max hot air flow: 15 l/min.
- Supports DSX 120 desoldering iron (horizontal application).
- Equipotential bonding socket (3.5 mm jack) and USB connection.
Typical Applications
- Use with DSX 120 for desoldering in horizontal position — as specified in the product description.
- Use of hot air (HAP) tool with the station's hot air channel, with up to 15 l/min flow.
- Use of soldering tools for temperature control within 50–550 °C.
Documentation
Further technical information and user manual can be found in the manufacturer's datasheet:
See datasheet from manufacturer
Specifications
- Model: WR 3000MER (T0053368870N)
- Type: 3-channel WR 3M rework station
- Operating voltage: 230 V
- Total power: 400 W
- Temperature range: 50 - 550 °C
- Max hot air flow: 15 l/min
- Included/supported tools: DSX 120 (horizontal application), HAP and soldering tools
- Equipotential bonding socket: 3.5 mm jack
- Data/service connection: USB
The content is AI-generated – we reserve the right to make errors.
Contact HIN for further product information.
