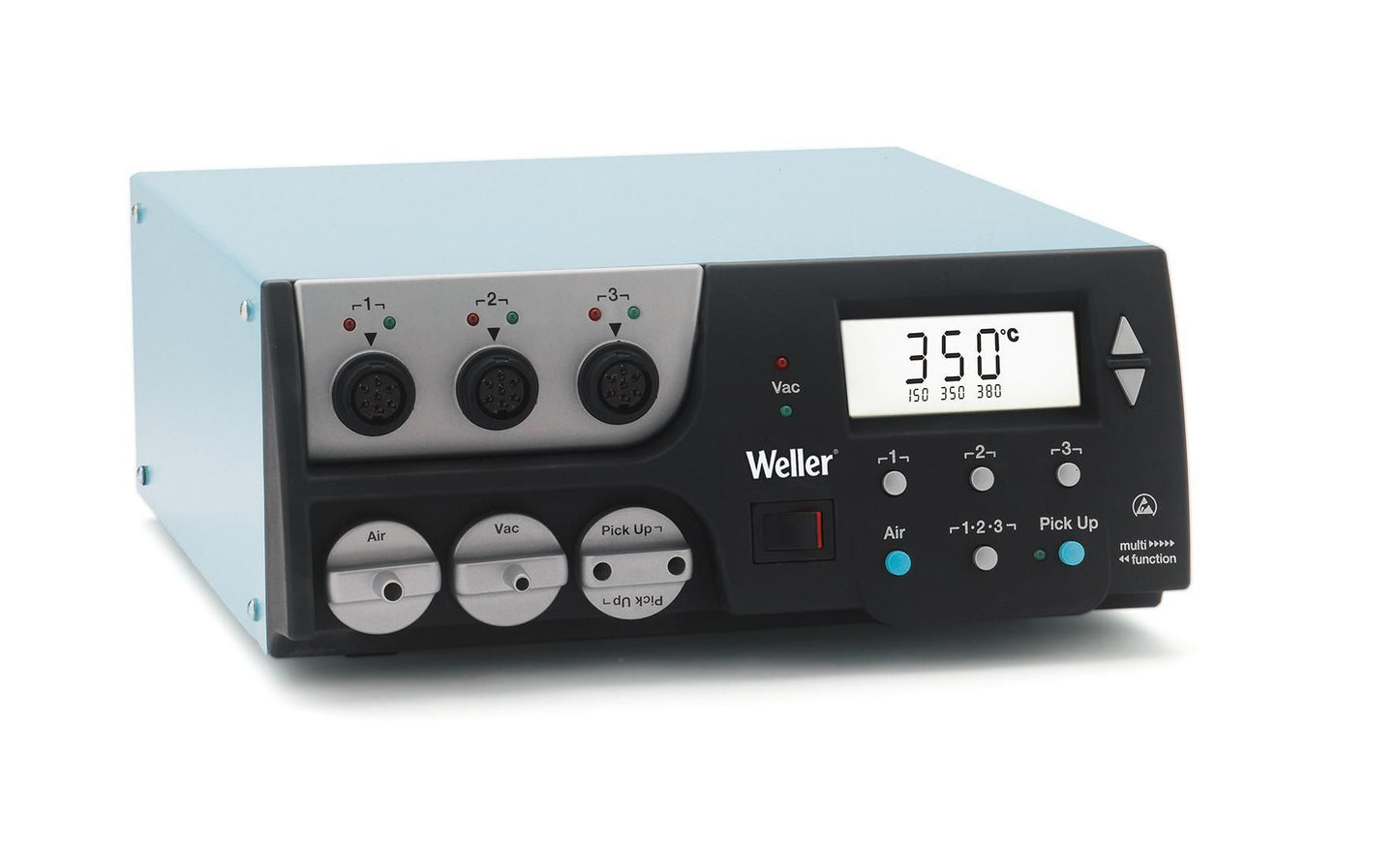

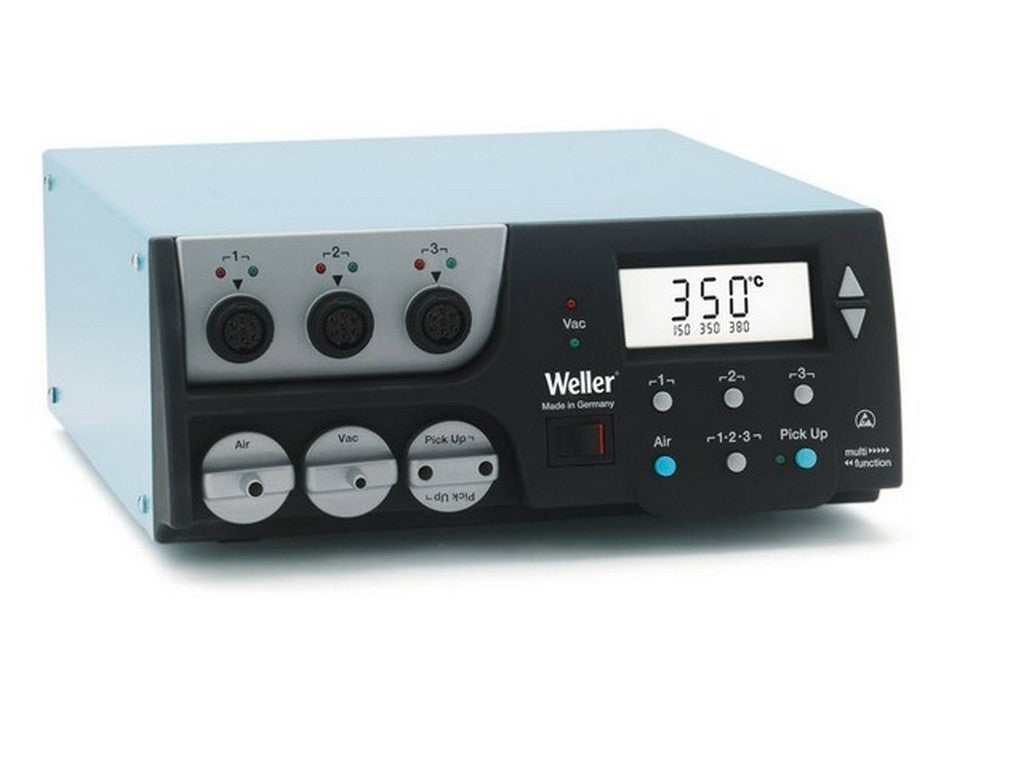

WELLER WR 3M – 3-channel power unit for rework and desoldering
The WELLER WR 3M is a 3-channel power unit (item no. T0053366699N) designed for rework and desoldering. The unit is specified with a power output of 360 W (400 W) and is designed for the simultaneous operation of up to three tools for soldering, desoldering, or hot air. The WR 3M features automatic tool detection and includes an integrated vacuum channel for pick-up. The unit is specified as ESD-safe.
Documentation
Technical information and further descriptions can be found in the manufacturer's official datasheet. See datasheet from the manufacturer
Features and operation
- 3-channel power supply for simultaneous connection of up to three tools.
- Automatic detection of connected tools for correct configuration.
- Built-in vacuum channel (pick-up) for handling during desoldering.
- Specified as ESD-safe for reducing electrostatic risk.
- Rated mains voltage: 230 V.
Typical applications
The WR 3M is designed for rework and desoldering applications, including the simultaneous use of multiple tools for rework and desoldering tasks. The unit's vacuum channel supports pick-up during desoldering, and automatic tool detection ensures correct operation with various tool types supported by the system.
Further information
Product information on the manufacturer's site specifies product dimensions and physical size, as well as documentation for use and function. For detailed installation and user information, please refer to the official datasheet.
Specifications
- Product name: WR 3M
- Manufacturer: WELLER
- Item number: T0053366699N
- Power: 360 W (400 W)
- Mains voltage: 230 V
- Supports simultaneous operation of up to 3 tools (soldering/desoldering/hot-air)
- Built-in vacuum channel for pick-up
- Automatic tool detection
- Specified as ESD-safe
- Dimensions: 280.0 x 240.0 x 103.0 mm
- Source: Manufacturer's datasheet (see documentation above)
