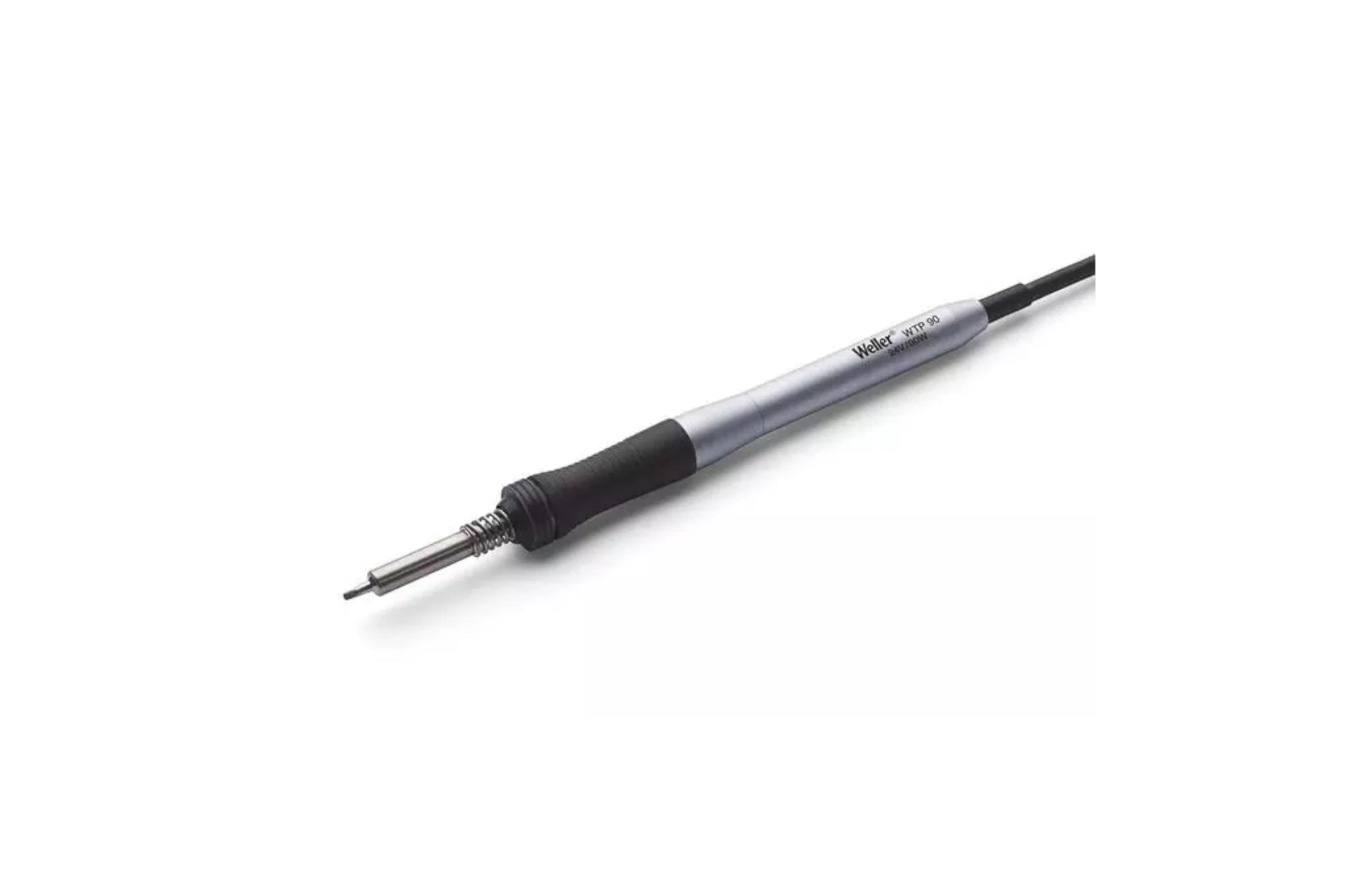

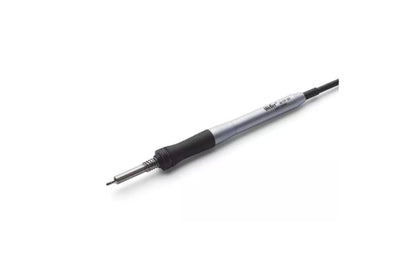

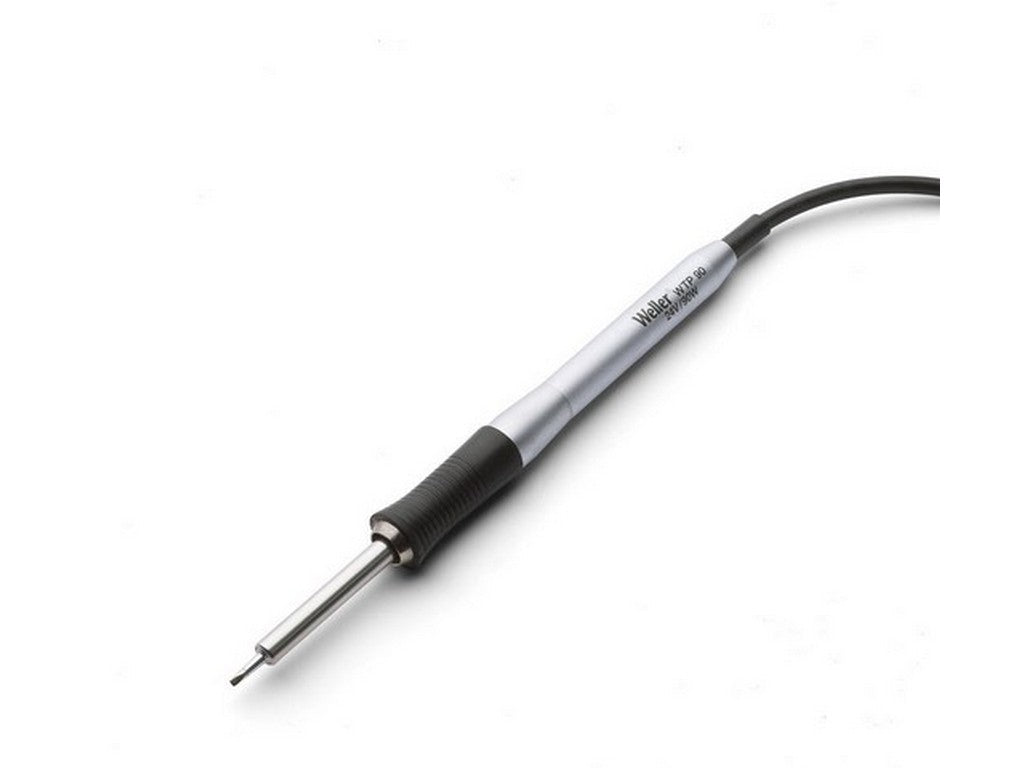

Hybrid Soldering Iron from WELLER
The WTP90 (Item No. T0052922299N) is a hybrid soldering iron from WELLER specified for 90 W and 24 V. The tool uses Power Response heating technology and is designated as ESD safe. The handle has a motion sensor that activates automatic standby to reduce the total cost of ownership. The WTP90 uses interchangeable heating elements and XNT series soldering tips.
Documentation
Typical Applications
- For soldering tasks on small and medium-sized components with high energy requirements (as stated in the manufacturer's data).
- For challenging soldering tasks in combination with WT stations and WR rework stations (as stated in the manufacturer's data).
Features and Notes
- Power Response heating technology with improved sensor position for fast heating.
- Includes motion sensor in the handle for automatic standby.

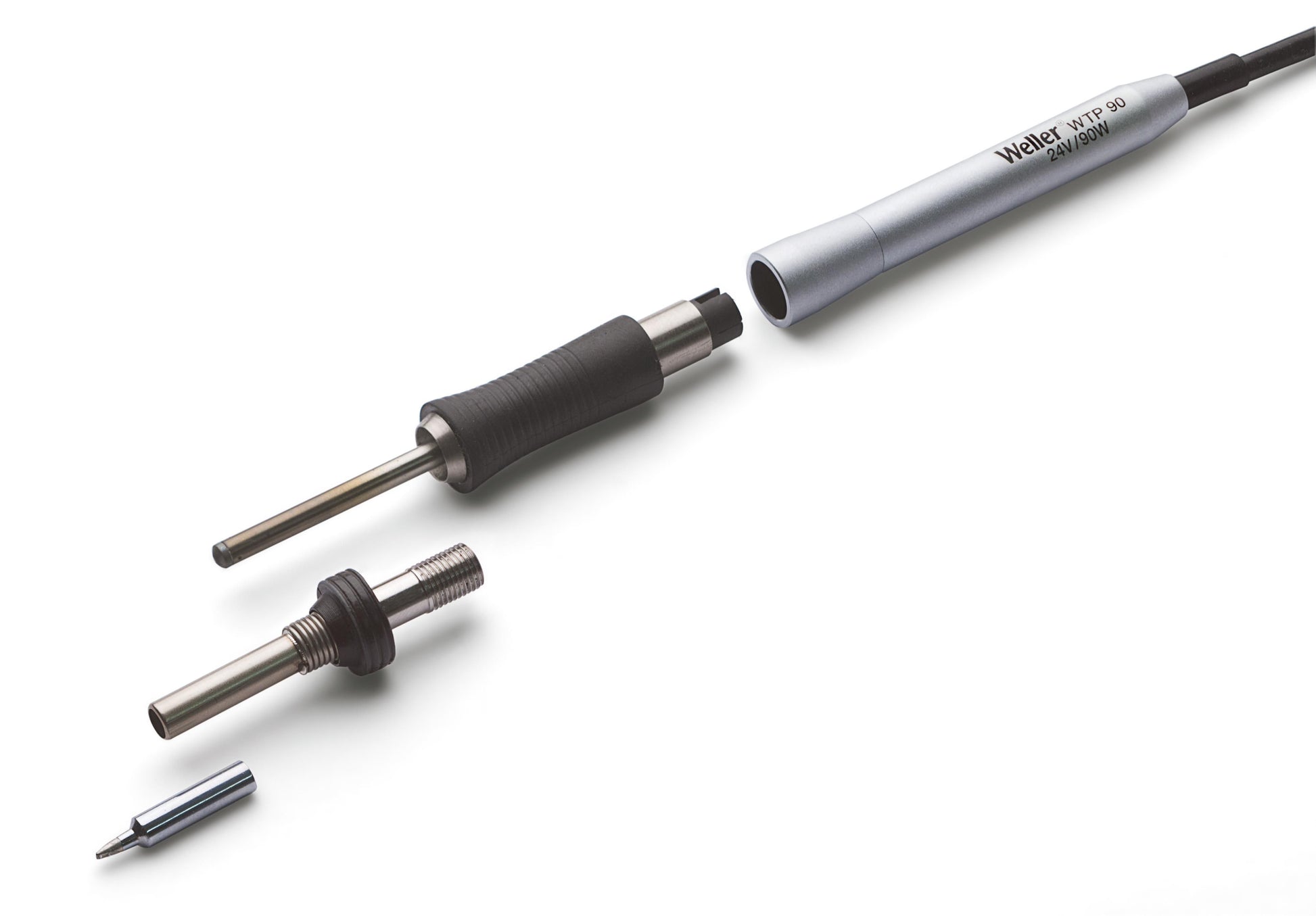

- Interchangeable heating element with compatibility for XNT series soldering tips.
- Designated as ESD safe.
- Compatible with WT1, WT1H, WT1M, and WT2M power supply units.
- Integrated direct fume extraction and FE connection with tube Ø 4.5 mm (as stated in the manufacturer's data).
Specifications
- Product Name: WTP90 (Item No. T0052922299N)
- Type: Hybrid soldering iron
- Power: 90 W
- Voltage: 24 V
- Charging/Heating Time: Approx. 7 seconds (50–350 °C)
- Temperature Range: 100–450 °C (200–850 °F)
- ESD Safe: Yes
- Compatible Tip Types: XNT, XH
- Compatible Power Supplies: WT1, WT1H, WT1M, WT2M
- Fume extraction barrel: T0058768724
- FE Accessory: T0052918599, tube Ø 4.5 mm
- Weight (catalogue): 0.07 kg
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
