Product Overview

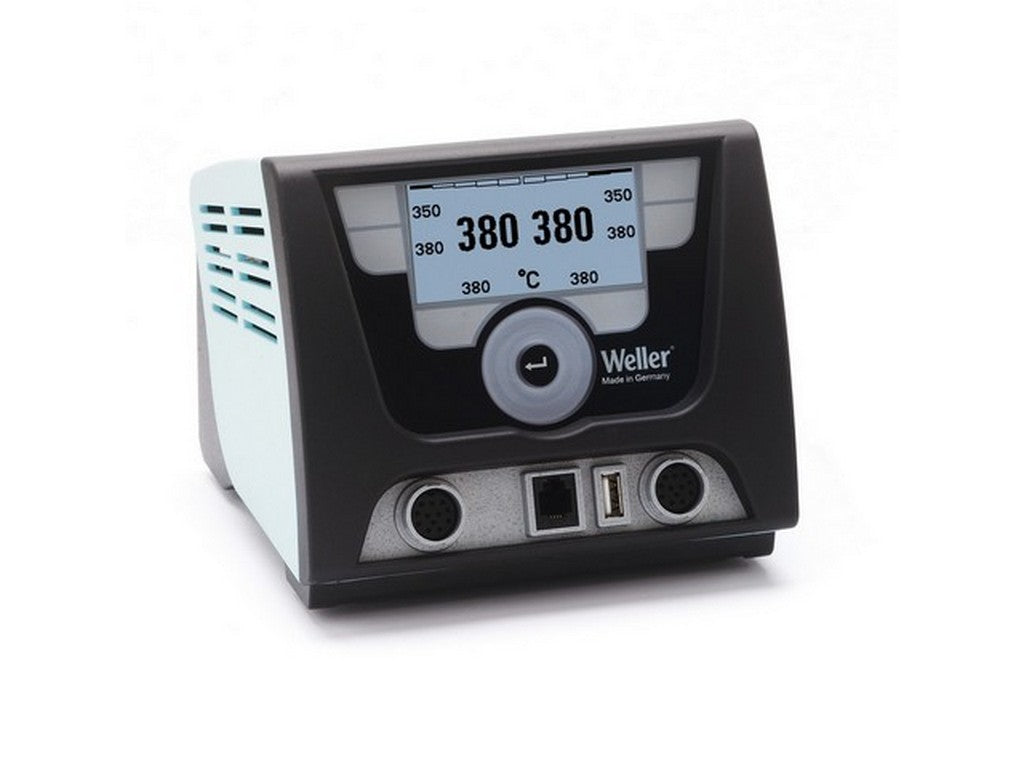

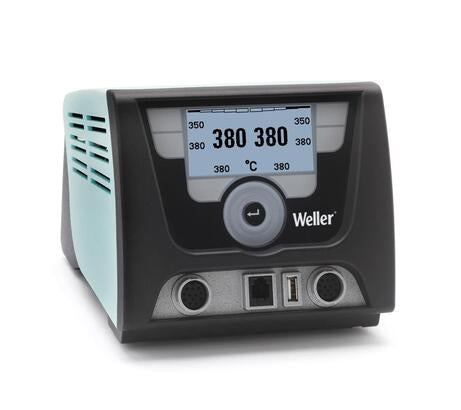

This 2-channel power supply unit from Weller, Weller WX2 (Item No. T0053420399N), is a benchtop controller in the WX-line product family designed for controlling soldering tools. The Weller WX2 delivers a rated power of 200 W (255 W) at 230 V and has an adjustable temperature range specified from 50 °C to 550 °C. The unit displays information on a robust capacitive touchscreen with ESD-safe glass and offers physical operation via a turn-click wheel with an enter key, as well as a blue LED ring for visual process control.Operation and Connections
- Robust touchscreen with ESD-safe glass
- Turn-click wheel with enter key and finger control
- Blue LED ring for visual process control
- Interface: 1x USB, 2x RS232, 1x switching output
- Equipotential bonding via 3.5 mm pawl socket on the back
- Automatic tool identification
Typical Applications
The Weller WX2 is intended for controlling compatible soldering tools and for parameterizing tools using automatic tool identification and storing settings in the handpiece. The function with visual process control (blue LED ring) and the possibility of firmware updates/parameterization via USB are supported by the product documentation.Documentation
Further technical data and details can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Specifications
- Product: Weller WX2 (Item No. T0053420399N)
- Product Family: WX Line Soldering Stations
- Number of Channels: 2
- Power: 200 W (255 W)
- Voltage: 230 V
- Adjustable Temperature Range: 50 °C - 550 °C (tool dependent)
- Temperature Accuracy: ± 9 °C
- Temperature Stability: ± 2 °C
- Dimensions (L x W x H): 174.0 x 154.0 x 135.0 mm
- Height: 135 mm
- Weight (catalogue): 3.45 kg
- Fuse: T2A
- Interfaces: 1x USB, 2x RS232, 1x switching output
- Equipotential bonding: yes (via 3.5 mm pawl socket)
- ESD-safe: yes
- Automatic tool identification: yes
- Benchtop Controller: yes
