Product Overview

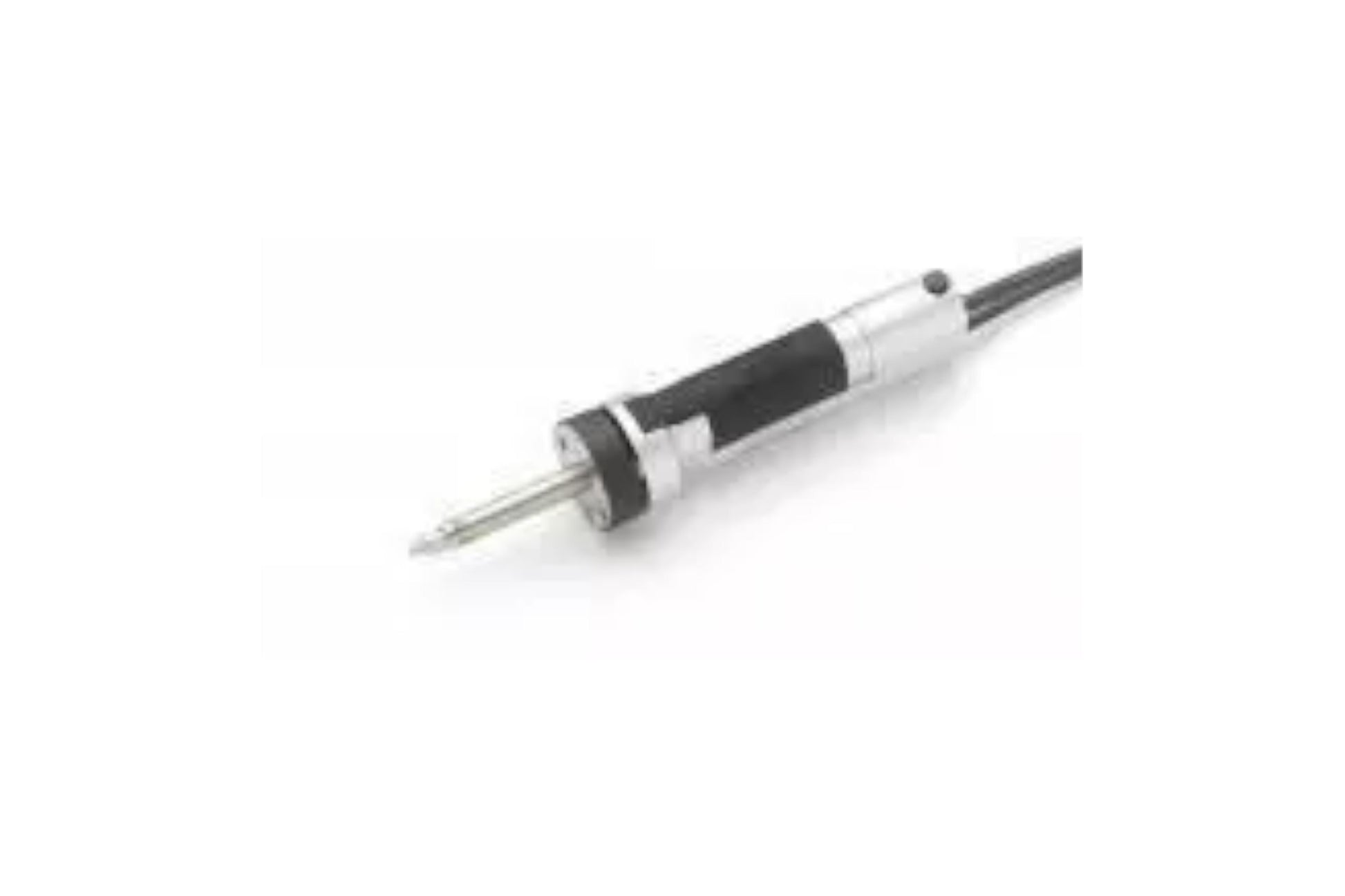

The WXDV 120 is a desoldering iron from WELLER designed for solder removal with vertical handling. The WXDV 120 operates at 120 W power and 24 V supply and has a specified temperature range of 100 °C to 450 °C. The tool is setback-capable, features a blue LED indicator, and includes an integrated tin collector. Internal parameter storage (Zero Tolerance) is documented in the manufacturer's data.Features
- Power: 120 W
- Supply: 24 V
- Temperature Range: 100 °C – 450 °C
- Setback-capable
- Blue LED indicator
- Integrated tin collector
- Internal parameter storage (Zero Tolerance)
- ESD Safe
Typical Applications
- Used for desoldering (solder removal) as specified in manufacturer documentation.
Documentation
Further technical details and confirmation of specified values can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Specifications
- Product Name: WXDV 120
- Item No: T0051320499N
- Product Family: Desoldering Irons
- Power: 120 W
- Supply Voltage: 24 V
- Temperature Range: 100 °C - 450 °C
- Heating Time: approx. 35 sec. (100 °C - 350 °C) / approx. 32 sec. (50–350 °C / 120–660 °F) as stated in datasheet
- Tip Types: XDS, XDSL
- Compatible Power Units: WXD2, WXR3
- Integrated tin collector
- Setback-capable
- Blue LED indicator
- Internal parameter storage (Zero Tolerance)
- ESD Safe: Yes
- UPC: 037103307996
Source
View datasheet from manufacturer
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
