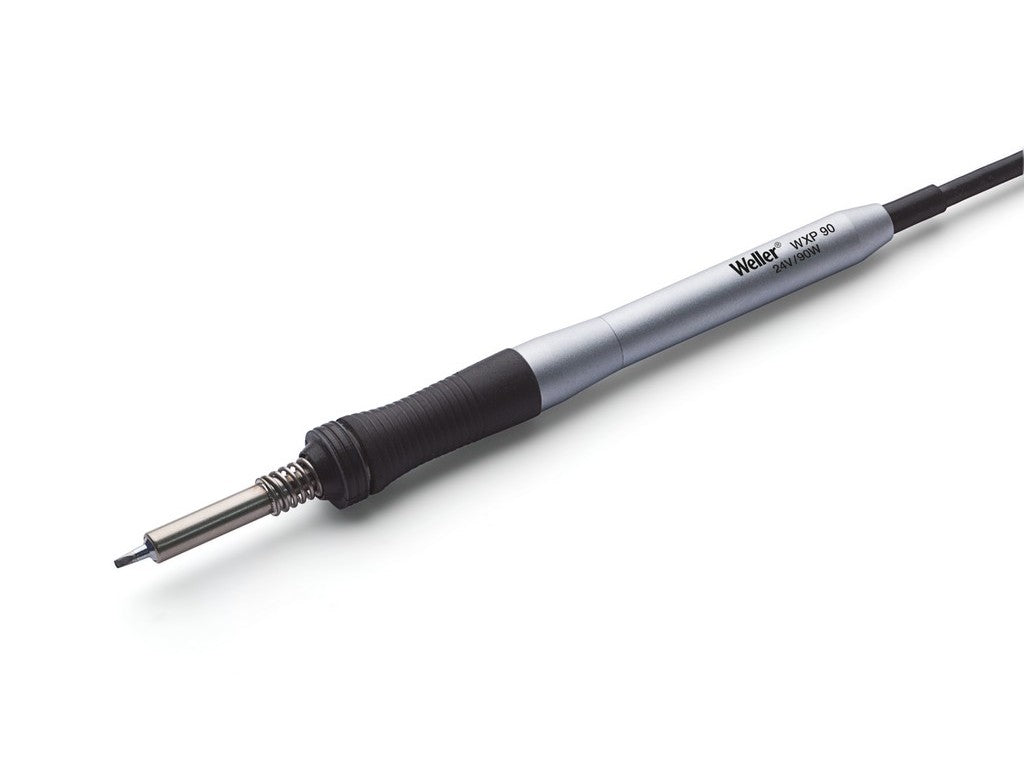

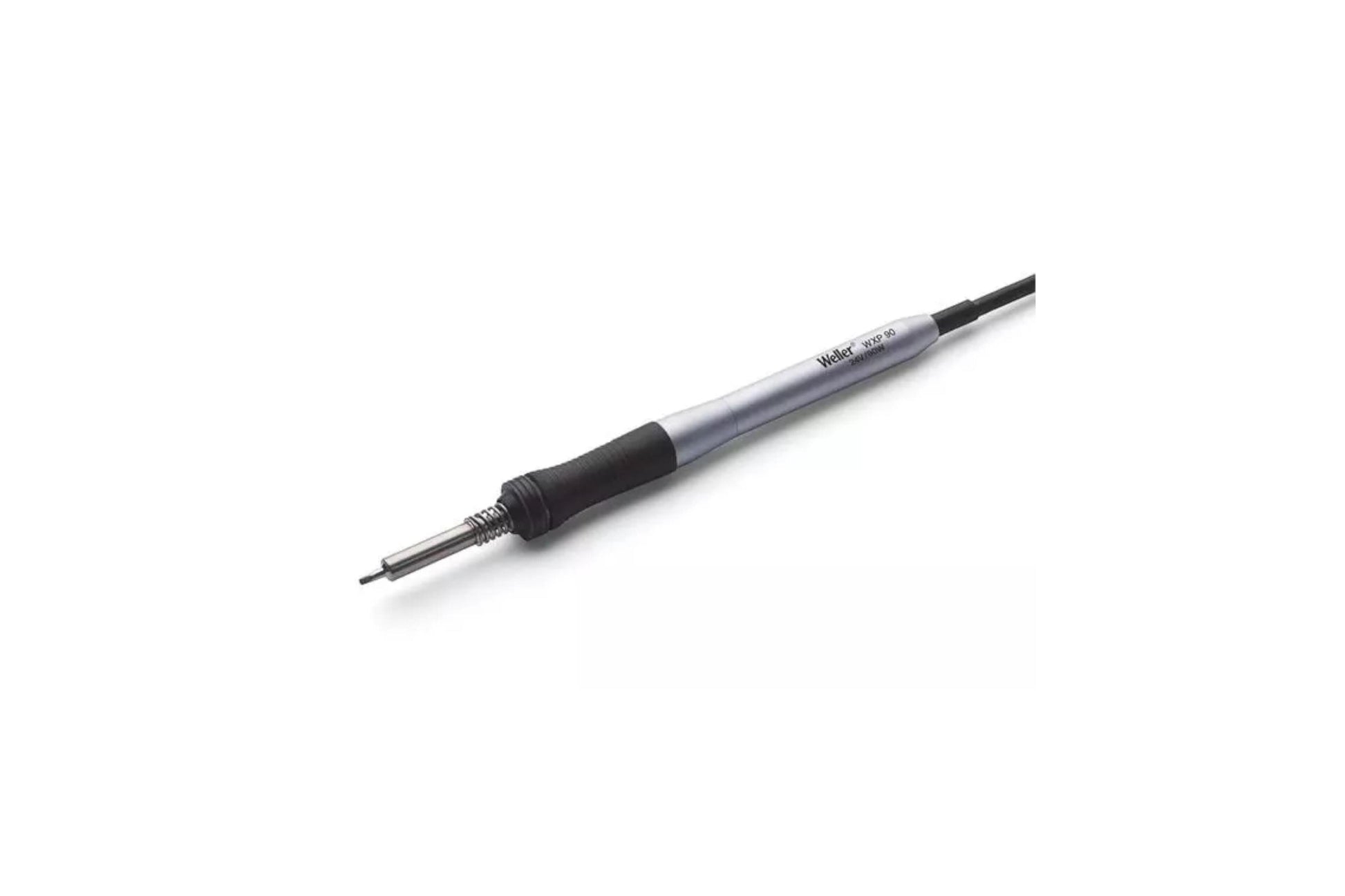

Hybrid Soldering Iron: WXP90 from WELLER
This WXP90 hybrid soldering iron (Item No. T0052922499N) from WELLER is a 90 W, 24 V tool featuring Power Response Heating Technology. The description and manufacturer's datasheet highlight the rapid heating of the heating element, as well as functions for process control and energy management. The WXP90 is ESD safe and uses the XNT tip family.
Features and Control
- Power Response Heating Technology for fast response time.
- Approximate heating time: 7 seconds (50–350 °C).
- Parameter memory with settings for standby temperatures and automatic shutdown.
- Integrated motion sensor for reduced consumption and lower costs for consumables.
- LED signal for visual process control.
- Replaceable heating element and XNT soldering tip family for flexibility in tip changes.
Documentation
For technical details and complete product information, please refer to the manufacturer's datasheet:
View datasheet from the manufacturer
Typical Applications
- Used for small and medium-sized components with high energy requirements, as stated by the manufacturer.
- Suitable for challenging soldering tasks in combination with compatible WX stations.
Technical Integration
The WXP90 works with selected WELLER power units and is designed to be used with interchangeable XNT tips and a safety rest (WSR 200). The LED indicator and motion sensor support process and cost management.
Specifications
- Product Name: WXP90 (Item No. T0052922499N)
- Manufacturer: WELLER
- Power: 90 W
- Voltage: 24 V
- Heating Time (50–350 °C): approx. 7 seconds
- Temperature Range: 100 - 450 °C (stated in datasheet)
- Tip Family / Tip Type: XNT
- ESD: Yes (ESD safe)
- Compatible Power Units: WX 1, WX 2, WXA 2, WXD 2, WXR 3, WXsmart
- Safety Rest: WSR 200
- Weight (catalogue): 0.07 kg
- Barrel: T0058768724
- FE connection with tube Ø 4.5 mm: T0052918599
The content was generated using AI – we reserve the right for errors.
Contact HIN for further product information.
