Product Overview

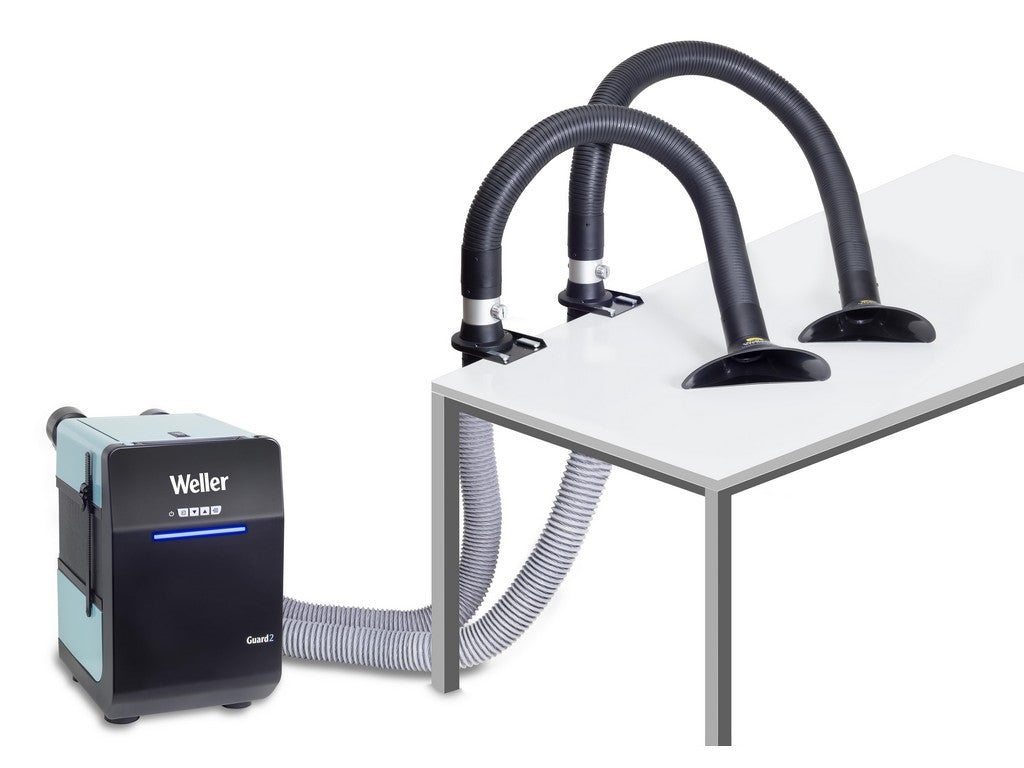

This dual-user filtration unit from Weller, FT91026699 (ZeroSmog Guard 2 Kit2 ALFA, 230 V), is an under-bench fume and gas extractor designed for two simultaneous users. The FT91026699 combines particle and gas filtration with an H13 HEPA particle filter in combination with activated carbon and potassium permanganate, as well as a series of pre-filters.Key Features
- High-efficiency particle and gas filtration: H13 HEPA + activated carbon + potassium permanganate.
- Operating voltage: 220–240 V AC, 50/60 Hz; rated power 142 W.
- Max. airflow: 200 m³/h; maximum vacuum: 2250 Pa/V.
- ESD-safe antistatic housing.
- Under-bench design intended for two users; comes with two ALFA nozzles and accessories for dual use.
Typical Applications
The FT91026699 is intended for under-bench installation for two users and is designed to remove solder fumes, welding fumes, and similar particles and gases generated by soldering processes. The unit removes particles and odors using the combined filter setup.Included Equipment
- 1 x main filter (HEPA H13 + activated carbon + potassium permanganate)
- 5 x pre-filters (fiberglass, ePM1-75% according to ISO16890)

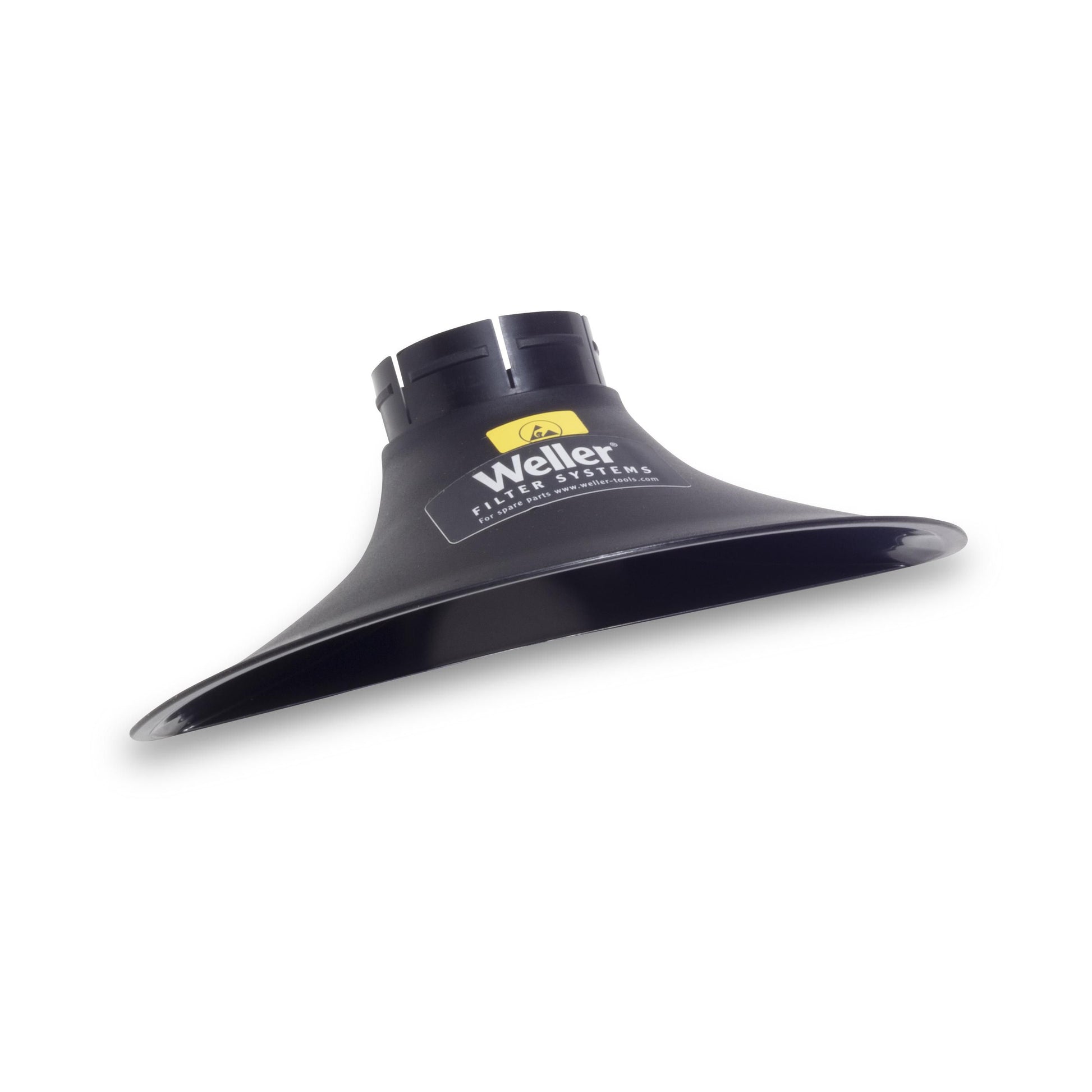

- 2 x ALFA nozzles
- 2 x Hose 0F10
- 2 x WFV shut-off valves

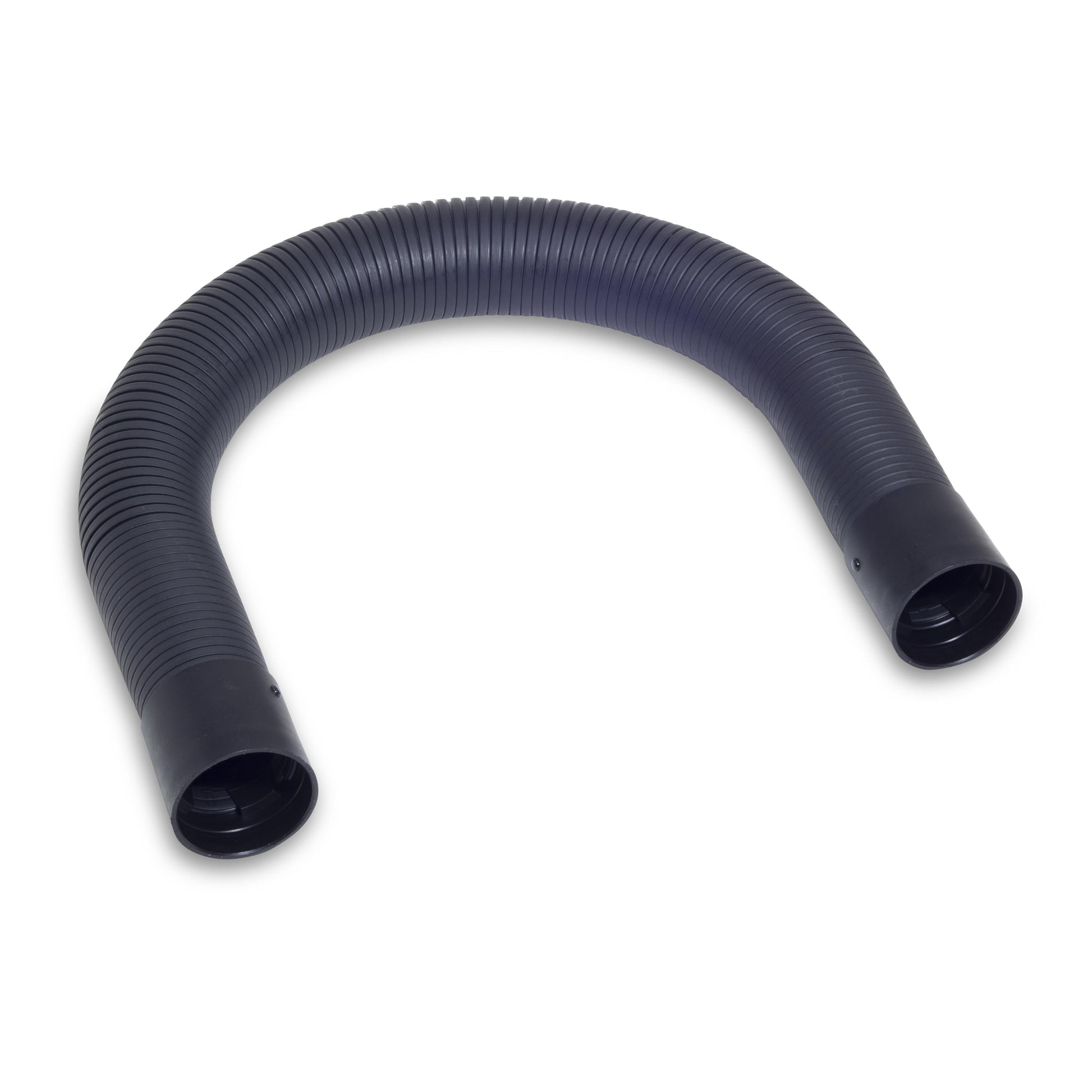

- 2 x 3 m flexible hoses
Documentation
For detailed technical data and filter options, please refer to the manufacturer's datasheet. See manufacturer's datasheetSpecifications
- Manufacturer: Weller
- Model / part number: FT91026699 (ZeroSmog Guard 2 Kit2 ALFA, 230 V)
- Power consumption: 142 W
- Mains supply voltage: 220–240 V~, 50/60 Hz
- Max. airflow: 200 m³/h
- Max. vacuum: 2250 Pa/V
- Dimensions (L x W x H): 270 x 336 x 435 mm
- Weight: approx. 9.5 kg
- Sound level at 1 m: < 70 dBA
- Pre-filter: Fiberglass pre-filter, ePM1-75% according to ISO16890
- Main filter: H13 HEPA + activated carbon + potassium permanganate
- Included accessories: 2 x ALFA nozzles, 2 x 0F10 hoses, 2 x WFV shut-off valves, 2 x 3 m flexible hoses
- Additional filter kits (manufacturer order numbers): FT91000048, FT91000049, FT91000051
