ZEROSMOG GUARD 230V F/G

Product Overview

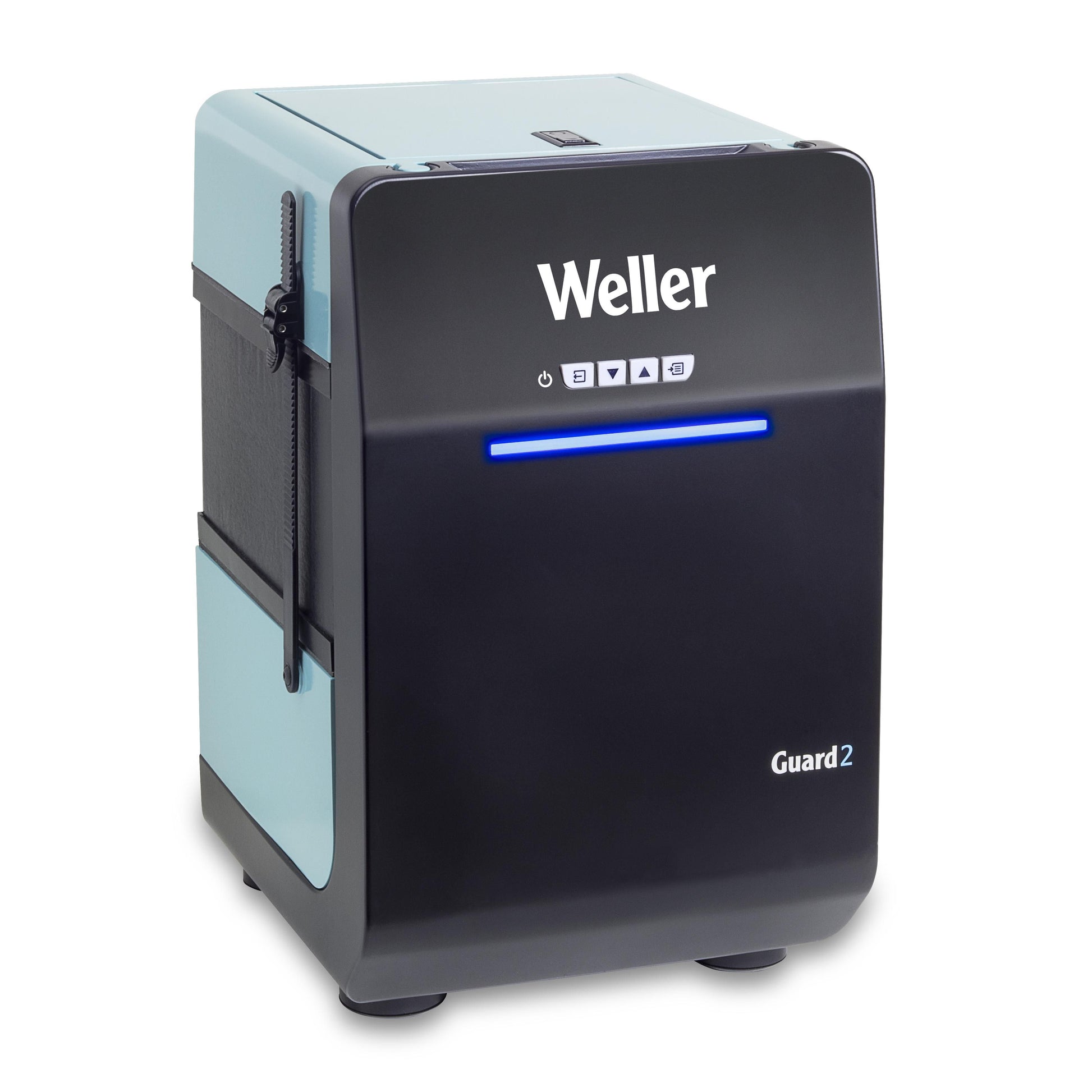

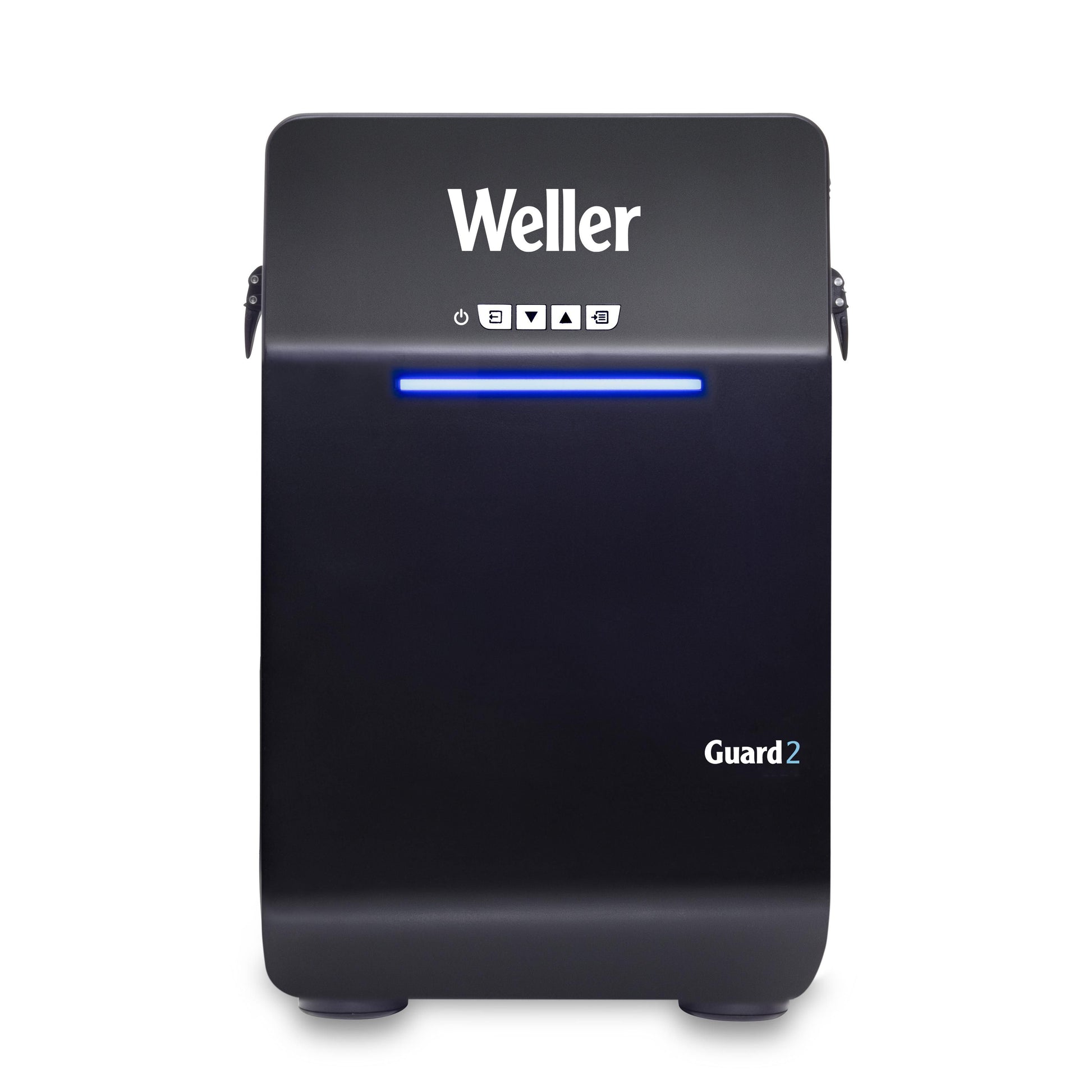

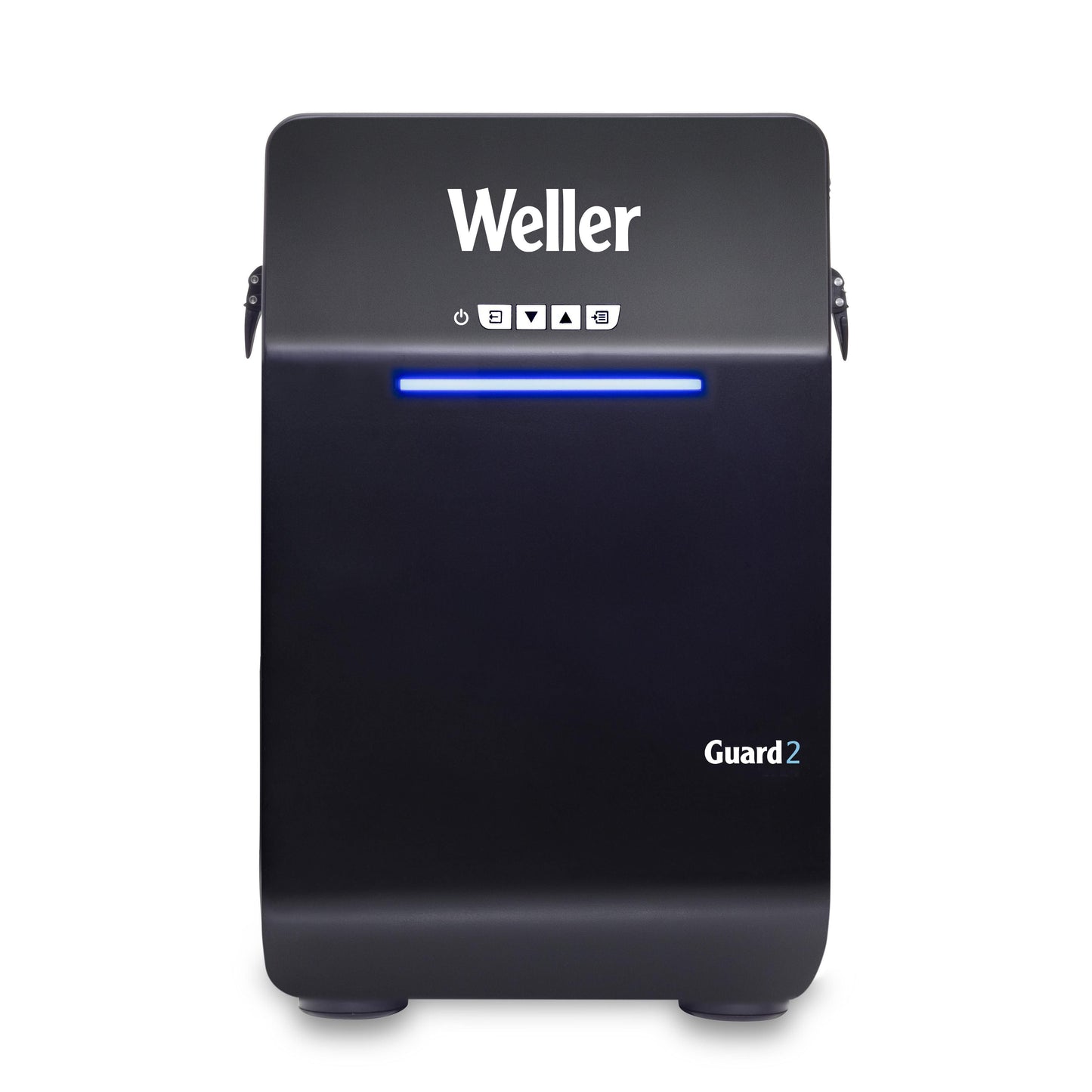

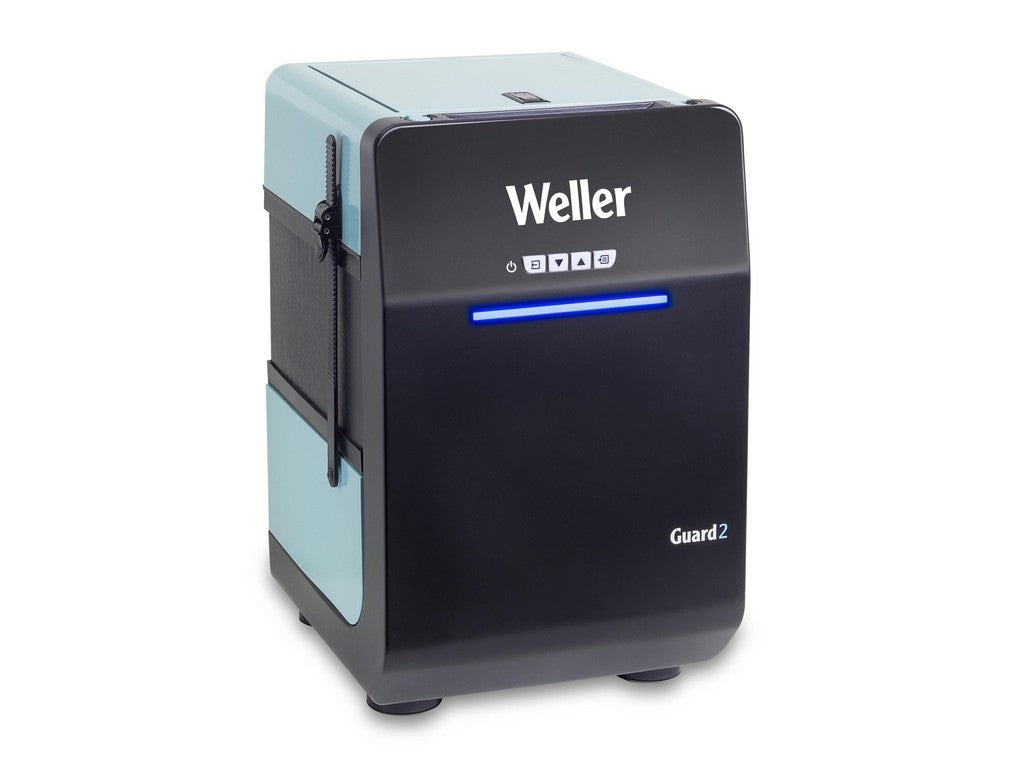

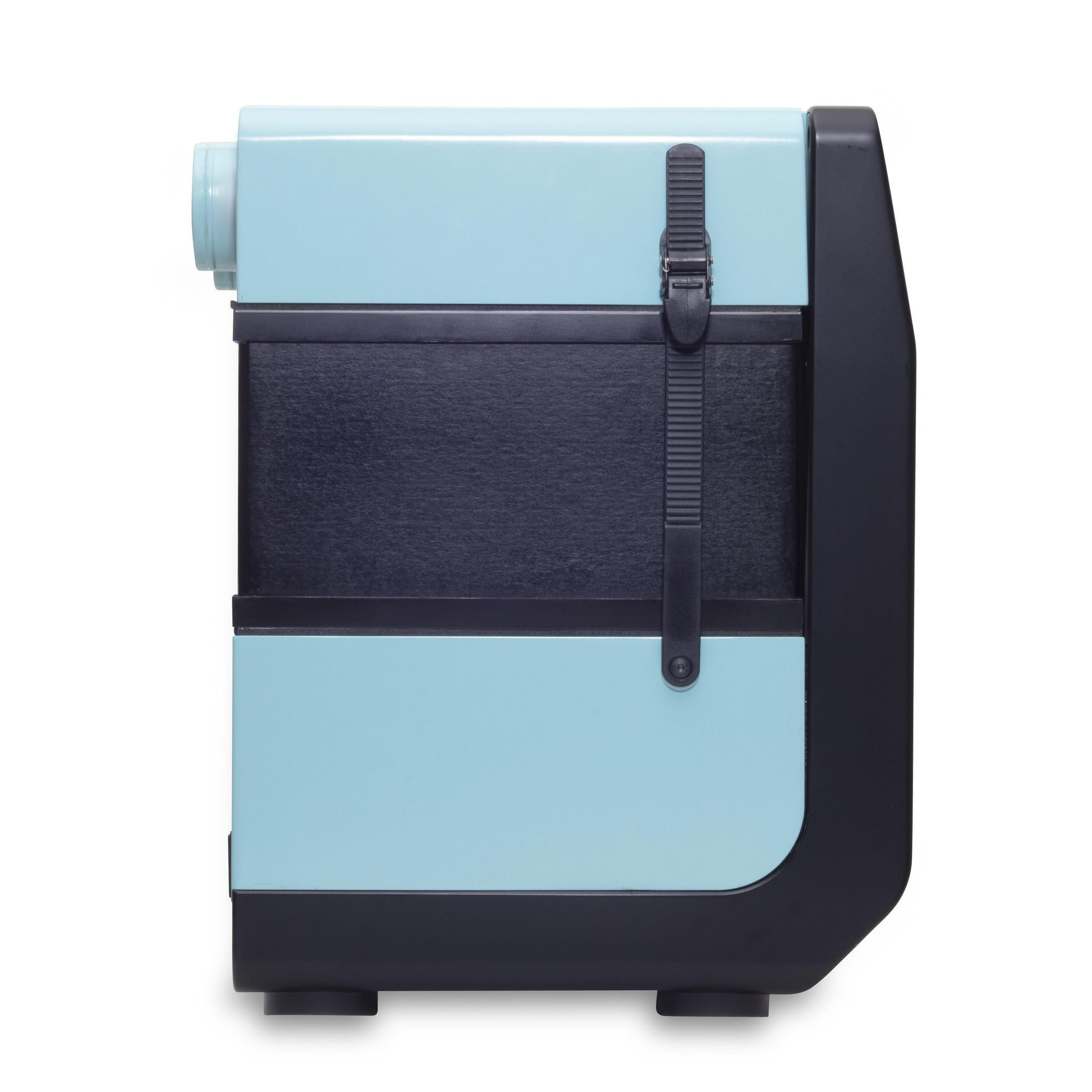

This dual-user filtration unit from Weller, the Weller ZeroSmog Guard 2 (FT91022699), is an electrical filtration unit designed for the removal of particles and gases generated during soldering. The product is supplied as an under-bench unit with a high-filtration main filter and multiple pre-filters included as standard.

Function and Design

• The unit is mains-powered (230 V) and has a specified power of 142 W.
• The main filtration principle combines HEPA H13 particle absorption with activated carbon and potassium permanganate for gas and odor removal.
• The standard delivery includes one main filter (HEPA H13 with activated carbon and potassium permanganate) and five ePM1-75% pre-filters.
• The unit has a compact form factor and is intended for use by two simultaneously connected workstations (dual-user).

Technical Documentation

The technical documentation from the manufacturer describes dimensions, airflow, and noise data, as well as information points on filter types and scope of delivery. For more technical details and updated documentation, please refer to the manufacturer's datasheet: See datasheet from manufacturer

Typical Applications

• Used for filtering solder fumes and exhaust gases generated during soldering, including the removal of odors from soldering processes.

Specifications

• Product name: Weller ZeroSmog Guard 2 (FT91022699)
• Mains supply voltage: 230 V
• Power: 142 W
• Maximum airflow: 200 m³/h
• Maximum vacuum: 2250 Pa
• Measured dimensions (L x W x H): 270 x 336 x 435 mm
• Catalog weight: 9.5 kg
• Standard delivery includes: 1 x main filter (HEPA H13 with activated carbon and potassium permanganate) and 5 x ePM1-75% pre-filters

Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
